Glazed Tile Roll Forming Machine

The Glazed Tile Roll Forming Machine produces roofing tiles with a glazed finish. It shapes metal sheets into consistent tile profiles using a series of rollers.

Request a Quote Download PDFPDF

glazed tile roll foming machine - Image 1

Technical Specifications

Overview

Professional Glazed Tile Production

This glazed tile roll forming machine is engineered for the high-precision shaping of metal sheets into consistent, high-quality roofing tiles. Featuring a robust steel frame and hardened alloy rollers, it is built to withstand continuous, high-volume production environments. The system integrates automated feeding, hydraulic cutting, and PLC control to ensure precise dimensions, minimal material waste, and ease of operation for professional manufacturing facilities.

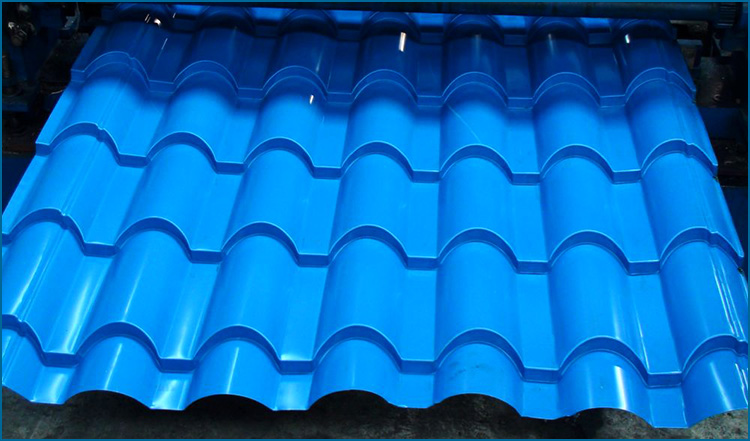

Finished roofing tiles produced by the machine — The machine is designed for efficient and precise production of various roofing tile profiles.

Technical Specifications

Equipment Components

Man-made uncoiler
Roll forming machine
Computer control system
Hydraulic control system
Cutting mechanism

Certifications

ISO 9001CE Compliant

Suitable Materials: Color steel plate
Warranty Period: 1 Year

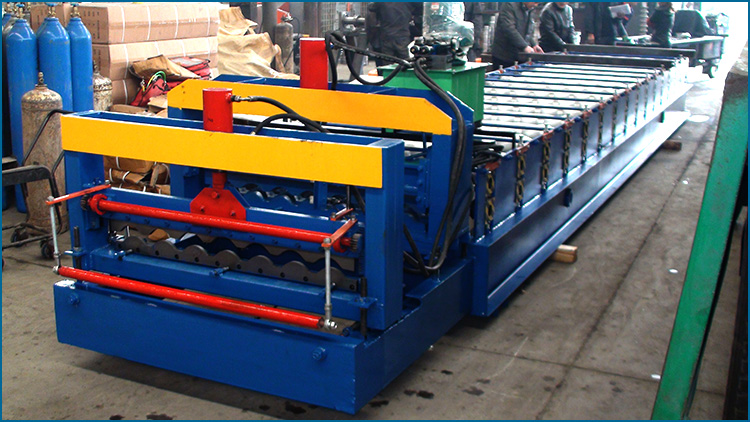

Side view of the blue and yellow glazed tile roll forming machine — Robust construction with a blue and yellow finish, ensuring durability and stability during operation.

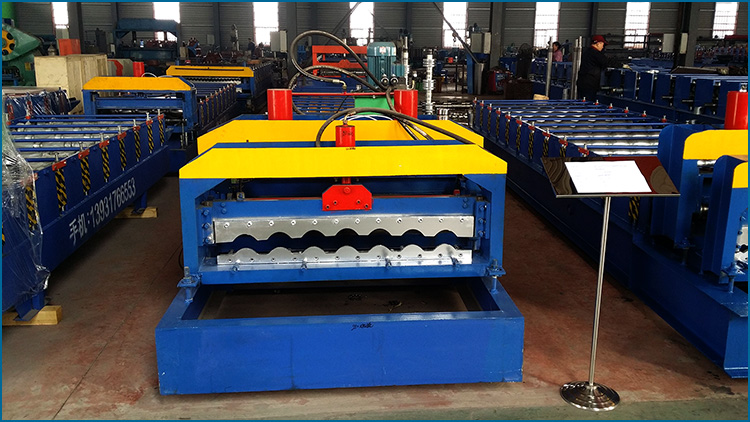

Close up of the forming rollers on the roll forming machine — Forming rollers are crafted from hardened alloy steel, guaranteeing an extended lifespan and consistent tile profiles.

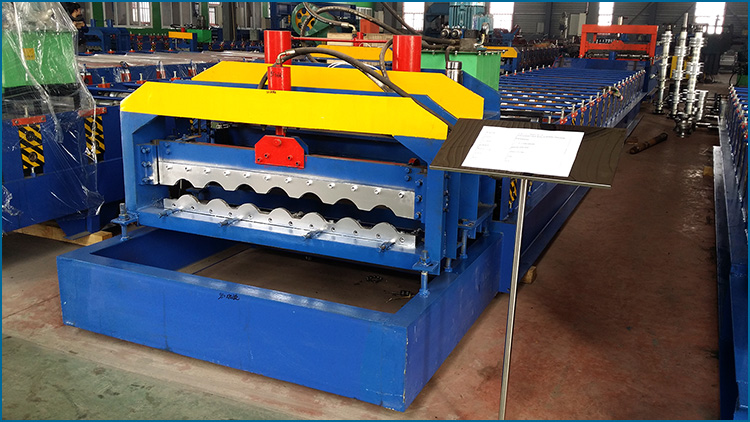

Control panel and hydraulic system of the roll forming machine — The hydraulic system provides precise control over the forming process, minimizing material waste.
