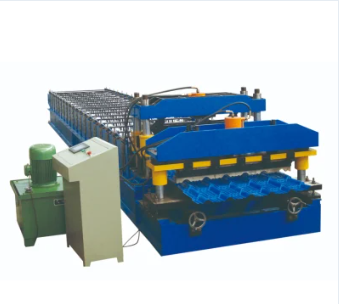

Glazed Tile Profile Forming Machine
This machine shapes steel sheets into profiles for glazed roofing tiles. It utilizes rollers to gradually bend the steel, creating the desired tile shape with precision.
Technical Specifications
Overview
High-Efficiency Glazed Tile Forming
This specialized roll forming machine is engineered for the precise and efficient production of steel profiles with a glazed tile appearance. Utilizing a robust 16-step roller system and automated PLC control, it ensures consistent quality for roofing tiles and wall panels. Designed for industrial-scale manufacturing, the machine features heavy-duty construction and adjustable parameters to handle various steel gauges, providing a reliable solution for construction material production.
Technical Specifications
Material Specifications
| Parameter | Value |
|---|---|
| Feeding Width | 1250 mm |
| Sheet Thickness | 0.4 - 0.8 mm |
| Yield Strength | ≤ 250 MPa |
Performance Metrics
15 m/min
Max Working Speed
16 steps
Roller Steps
70 mm
Main Shaft Diameter
Power System
- Main Motor Power: 5.5 KW
- Hydraulic Station Power: 4.0 KW
- Hydraulic System Pressure: 8-12 MPa

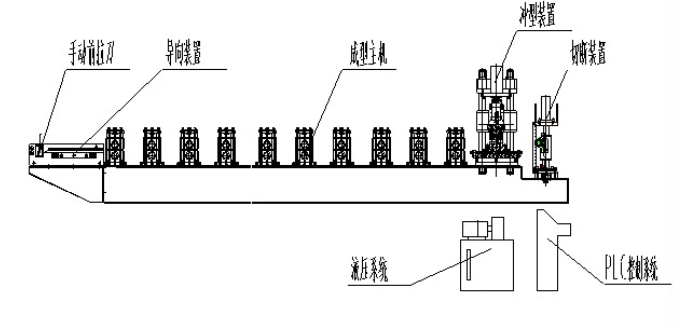

Construction & Design
- Build Materials

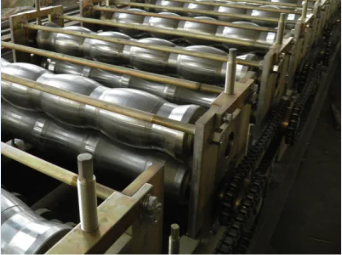

- 350H Beam Steel Frame45# Forged Steel RollersHard Chromium Plated RollersQuenched and Tempered Shafts
- Machine Dimensions
- 7500 x 1700 x 1400 mm
Control & Automation
Control System
PLC ControlledAutomated CuttingAutomated Feeding
