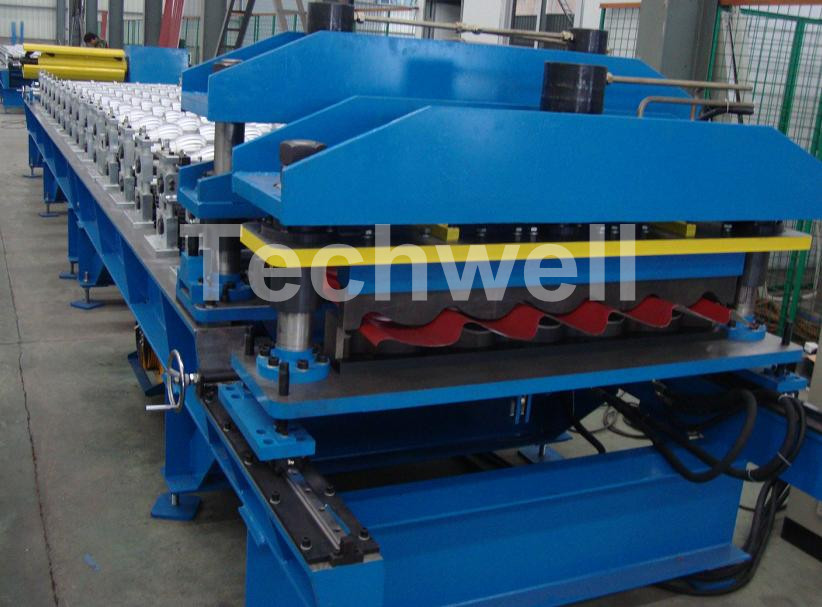

Glazed Steel Tile Roll Forming Machine
This machine is designed for the efficient production of glazed, step, and steel tiles. It utilizes a series of precision rollers to gradually shape the metal sheet into the desired tile profile.
Technical Specifications
Product Overview
High-Efficiency Glazed Tile Production
This glazed tile roll forming machine is an advanced solution for the precision manufacturing of high-quality roof tiles. Designed for versatility, it processes colored and galvanized steel sheets to create beautiful, elegant profiles suitable for villas, hotels, and industrial applications. The system integrates a complete production line, from uncoiling and film covering to precision stamping and post-cutting, ensuring consistent output and minimal material waste.
Technical Performance
Main Motor Power
4 kW
Main Motor Power
3 kW
Hydraulic Station Power
- Forming Speed
- 8 m/min
- Hydraulic Pressure
- 5 - 8 Mpa
- Total Weight
- 3700 kg
Material & Dimensions
Step Specifications
| Parameter | Range |
|---|---|
| Step Length | 200-350mm |
| Step Height | 14mm |
- Compatible Materials
- Colored steel sheetGalvanized steel sheet
- Coil Sheet Thickness
- 0.3 - 0.8mm
System Configuration
Included Components
- Uncoiler and base
- Coil sheet guiding equipment
- Film covered device
- Roll forming system
- Glazed tile stamping unit
- Post-cutting equipment
- Hydraulic station
- Supporter table
- Roll Stands Quantity
- 14
- Control System
- PLC
- Electrical Requirements
- 380V, 3 Phase, 60Hz
