Product Overview
Advanced Synchronization Monitoring

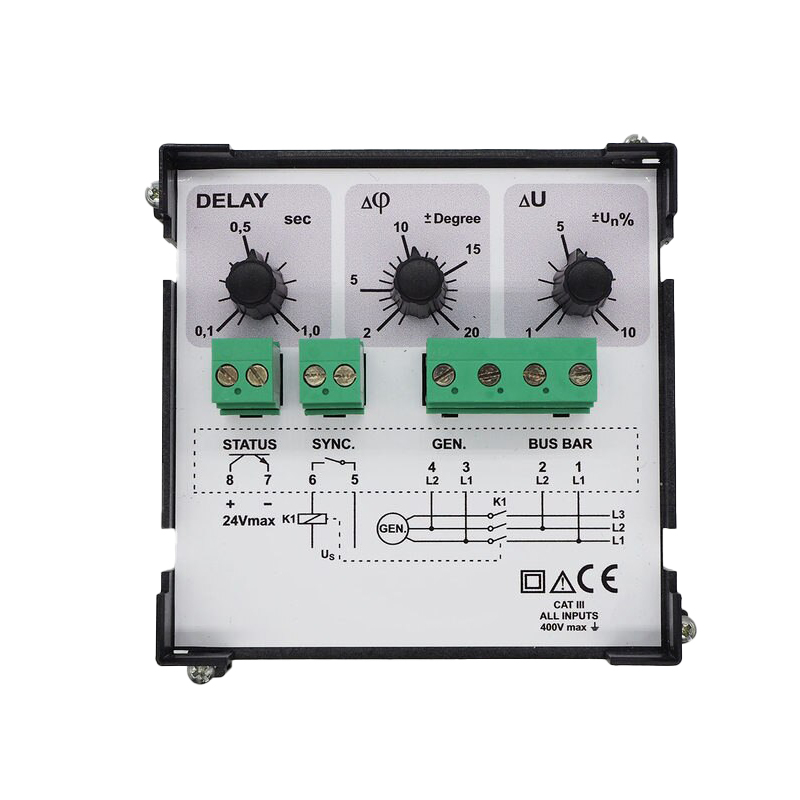

The SQ0214 is a microprocessor-based synchronising unit designed to measure phase differences between a bus bar and a generator. It supports both manual and semi-automatic synchronization installations, serving as a versatile replacement for dual voltmeters and dual frequency-meters. The integrated LCD provides real-time monitoring of voltage and frequency for both the generator and bus bar, while the LED circular display offers immediate visual feedback on phase alignment.
Technical Specifications
- Standard Phase Resolution
- 20 °el
- Sync Range Phase Resolution
- 5 °el
- Adjustable Delay
- 0.1 to 1.0 seconds
- Phase Difference Adjustment
- 2 to 20 ± degrees
- Voltage Difference Adjustment
- 1 to 10 ± Un%
Compliance and Safety
- Safety Category
- CAT III
- Maximum Input Voltage
- 400 V
- Auxiliary Power Input
- 24 V
Display Features
Measurement Parameters
- Generator Voltage (UGEN)
- Bus-bar Voltage (UBB)
- Generator Frequency (FGEN)
- Bus-bar Frequency (FBB)
- Phase Difference (Δφ)
- Key Indicators
- 24 LED circular displayBacklit LCDSync status indicator
