Gasoline Engine 1.5kW 52cc
This gasoline engine delivers 1.5 kW of power with a 52cc displacement. It features a 1-liter fuel tank and a butterfly valve carburetor.
Technical Specifications
Overview
Compact and Powerful Performance

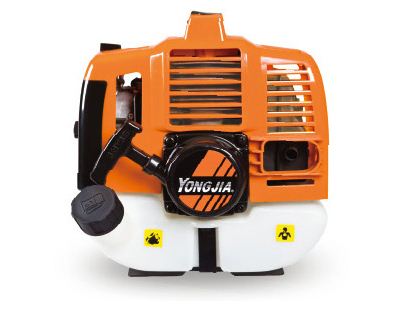

The 1E44FN gasoline engine is a robust and efficient power source designed for portable equipment. Engineered for reliability, this engine features a 52cc displacement and delivers a consistent 1.5 kW power output. Its compact design and lightweight construction make it an ideal choice for integration into brush cutters, trimmers, and other handheld power tools.
Technical Specifications
Performance Metrics
1.5 kW
Rated Power
7,500 r/min
Rated Speed
52 cc
Displacement
Engine Details
| Feature | Specification |
|---|---|
| Cylinder Diameter | 44 mm |
| Carburetor Type | Butterfly Valve |
| Fuel Tank Capacity | 1.0 L |
| Mixed Fuel Ratio | 40:1 (FC Grade) |
Physical Characteristics
Dimensions and Weight
- Weight: 4.8 kg
- Packing Measurement: 275 x 275 x 170 mm
Applications
- Suitable Applications
- Brush CuttersTrimmersPortable Power Equipment
Features
Key Features
Recoil StarterDurable ConstructionEfficient Combustion
