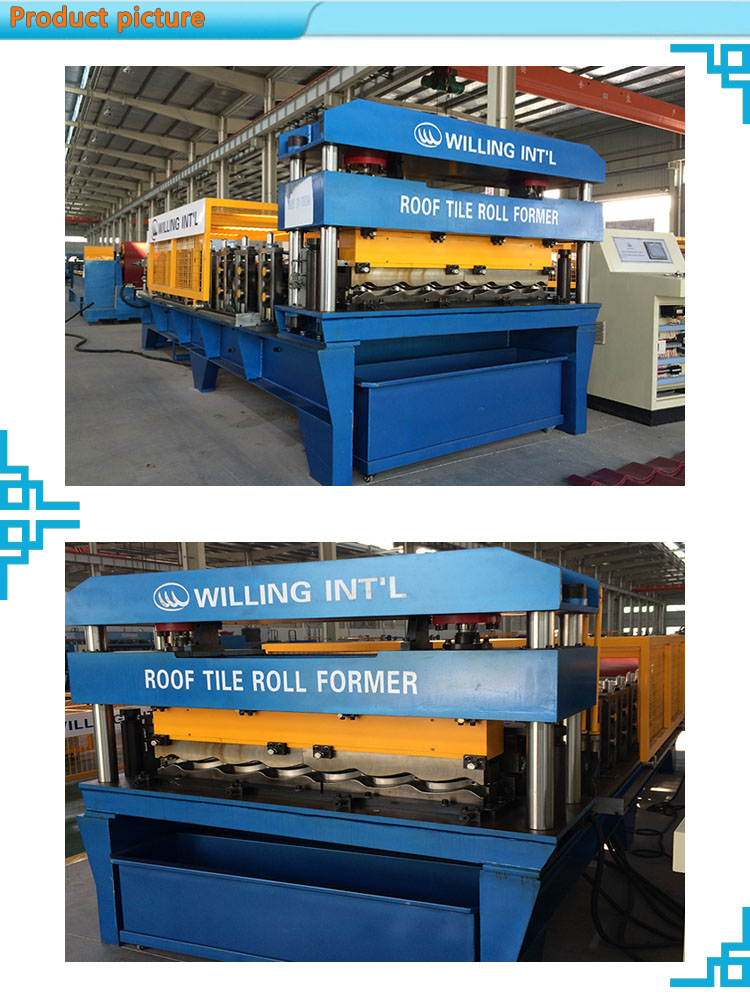

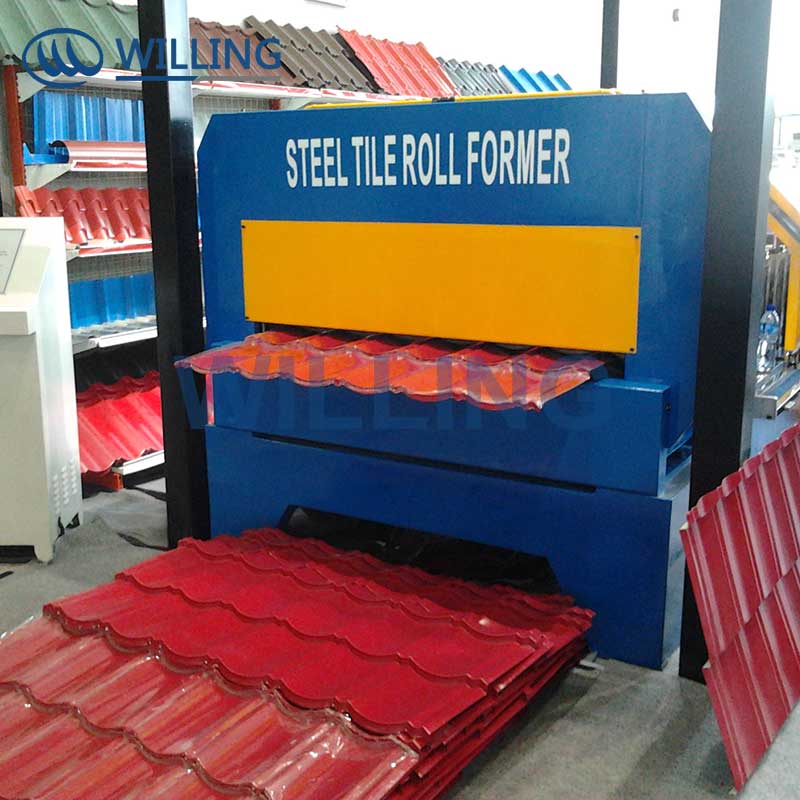

Galvanized Corrugated Roof Tile Forming Machine
This machine is engineered for the efficient production of galvanized corrugated roof tiles. It utilizes a rolling mill process to form the corrugated shape, ensuring durability and stability during operation.
Technical Specifications
Overview
High-Efficiency Corrugated Roof Tile Production
This specialized roll forming machine is engineered for the high-volume production of galvanized corrugated roof tiles. Featuring a robust steel frame and precision-engineered rollers, it ensures consistent profile accuracy and durability. The system integrates advanced automated controls and hydraulic power to streamline manufacturing, making it an ideal solution for industrial roofing material suppliers.
Technical Specifications
- Material Thickness Range
- 0.7 mm
- Material Yield Stress
- 550 Mpa
- Max Forming Speed
- 15 m/min
- Roller Material
- 45# steel with chrome treatment
- Roller Driven Type
- Chain transmission
- Total Machine Weight
- 5000 kg
Power & Control
- Main Motor Power
- 5.5 Kw
- Hydraulic Station Power
- 3 Kw
- Total Power Consumption
- 8.5 Kw
- Hydraulic System Pressure
- 12 Mpa
- Controller Interface
- PLCTouch ScreenManual Buttons
Service & Support
Technical Support Channels
- Phone Call
- Instant Messaging (Skype/Whatsapp/Wechat)
Available Services
Technical GuidanceInstallation SupportDebuggingMaintenance
- Warranty Period
- 1 Year
