Food Grade Micro Diaphragm Water Pump
This micro diaphragm water pump is made with food-grade materials. It is available in DC 12V and 24V configurations and is suitable for various applications requiring a compact and reliable pumping solution.
Technical Specifications
Overview

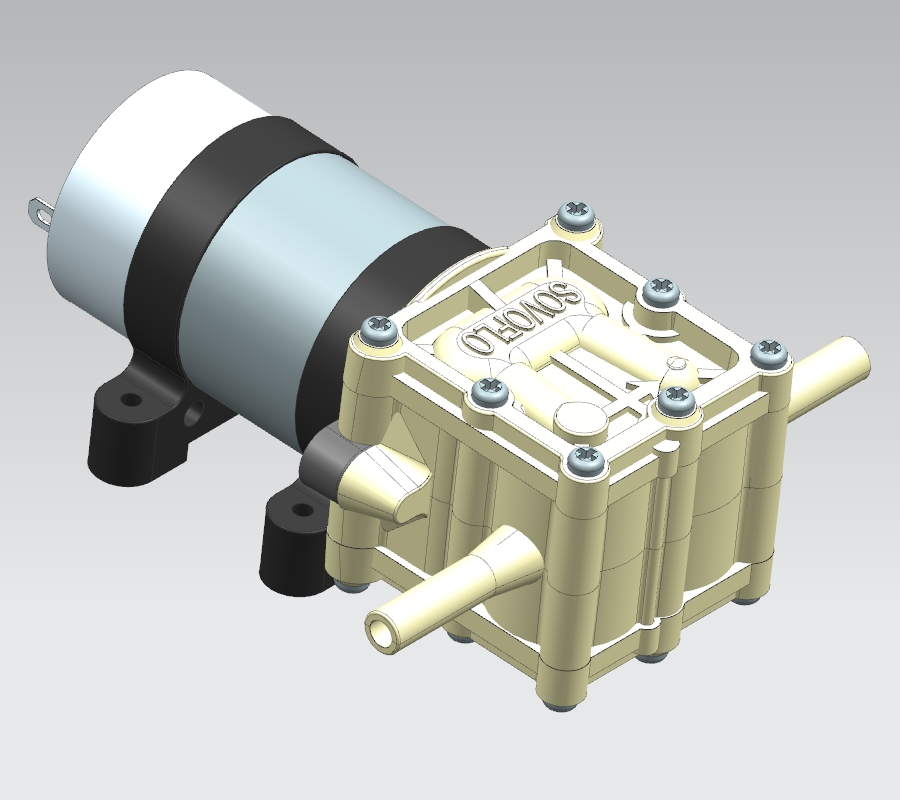

Professional Grade Micro Diaphragm Pump
This high-performance micro diaphragm pump is engineered with food-grade materials, making it ideal for precision fluid handling in beverage equipment, water dispensers, and medical instruments. Featuring a reliable permanent magnet DC motor, it provides consistent flow and self-priming capabilities while supporting both hot and cold liquids. Its compact design and dry-run tolerance ensure easy integration into space-constrained systems and long-term operational durability.
Key Features
- Core Features
- Food GradeSelf-PrimingDry Run CapableLow NoiseCompact DesignHot/Cold Water Compatible
Technical Specifications
Operational Range
100 °C
Max Temperature
2.5 m
Dry Suction Height
0.25 kg
Weight
Performance Data
| Rated Volts (VDC) | Flow (L/min) | Noise (dB) | Head (m) |
|---|---|---|---|
| 12 | 0.8 ± 0.2 | 43 | 2 |
| 12/24 | 1.0 ± 0.2 | 45 | 5 |
| 12/24 | 1.2 ± 0.2 | 48 | 7 |
| 12/24 | 1.4 ± 0.2 | 50 | 10 |
Applications
Typical Applications
- Water dispensers
- Coffee machines
- Vending machines
- Ice makers
- Medical equipment
- Chemical instrumentation
- Electric sprayers
