Floor Type Arch Sheet Roll Forming Machine

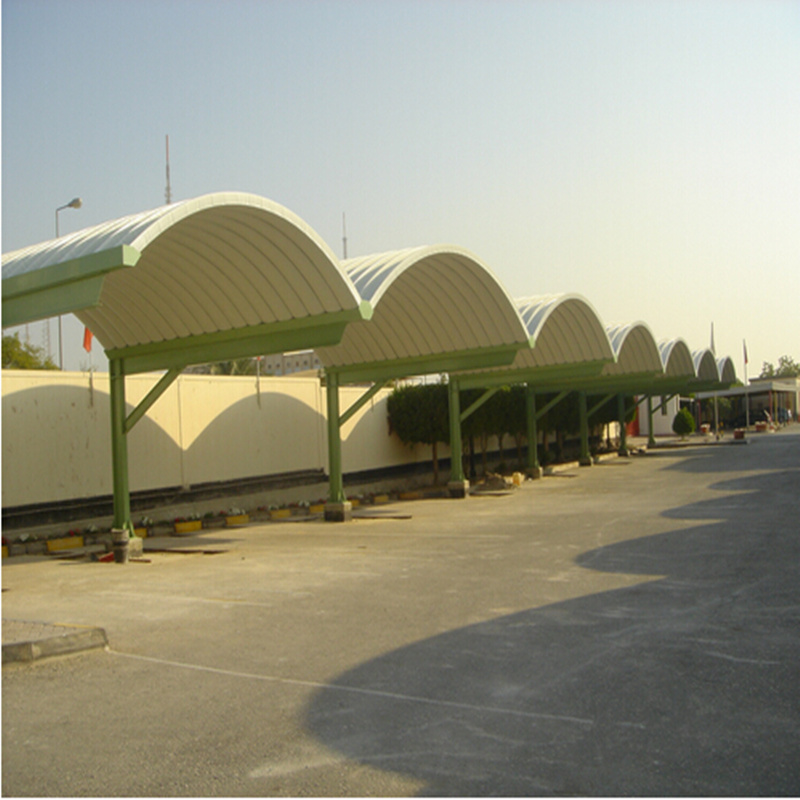

This machine efficiently produces arched metal sheets directly on the work site, reducing costs. It is widely used for constructing factories, warehouses, gymnasiums, and exhibition centers.
Technical Specifications
Product Overview
On-Site Arch Sheet Production

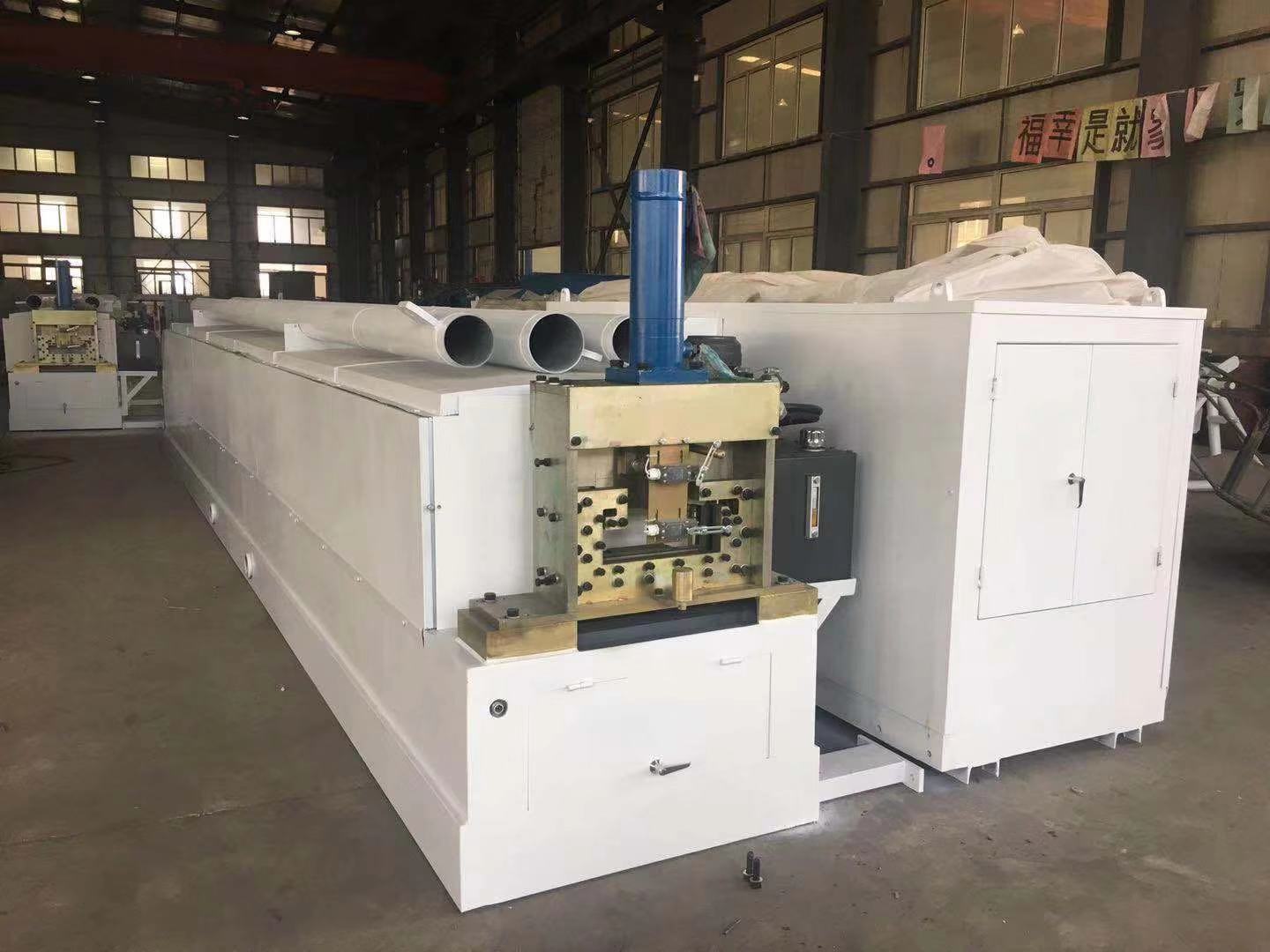

This floor-type arch long sheet roll forming machine is engineered for high-efficiency production directly at construction sites, significantly reducing logistics costs. It is ideal for mid-to-small scale projects including warehouses, garages, gymnasiums, and exhibition centers. The system is built on a durable trailer chassis with automotive-grade axles, ensuring superior longevity and reliability compared to standard straight-shaft designs.
Technical Specifications
Machine Dimensions
| Component | Dimensions (L x W x H) |
|---|---|
| Straight Part | 7650 x 920 x 1200 mm |
| Curving Part | 2600 x 1400 x 1400 mm |
- Production Model
- BH-600-305
- Total Weight
- 7 ton
Performance Metrics
Key Production Metrics
600 mm
Feeding Width
305 mm
Effective Width
50.8 %
Using Rate
109 mm
Groove Depth
- Supported Thickness
- 0.5 - 1.5 mm

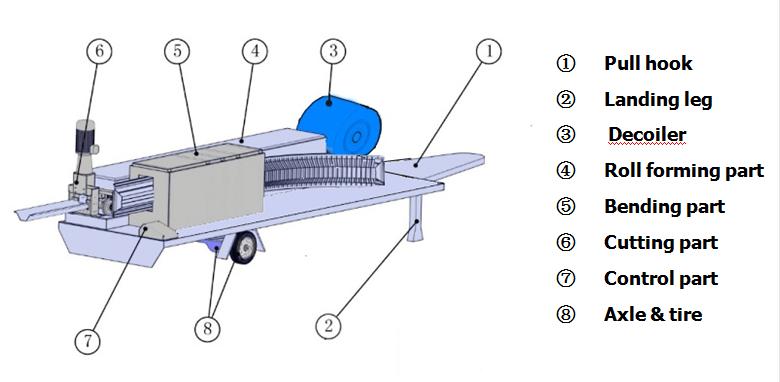

Components & Construction
Cutting Type
Mechanical CuttingHydraulic Cutting
- Bending Leaf
- 10mm thickness, CNC processed
- Cutting Blade
- 12CrMov material, heat treated

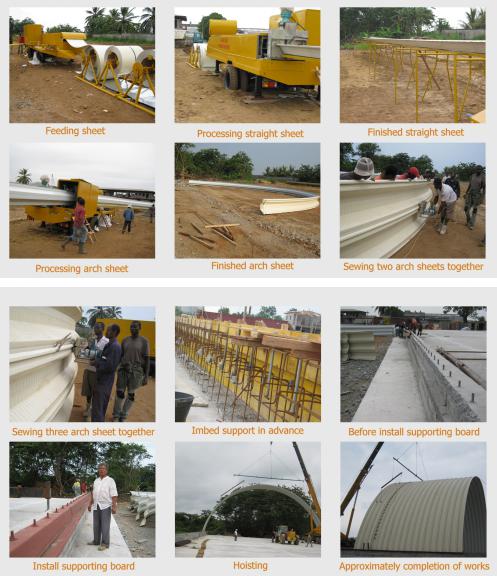

Operational Process
Workflow Overview
- Feeding sheet
- Processing straight sheet
- Processing arch sheet
- Sewing arch sheets together
- Support structure installation
- Hoisting
