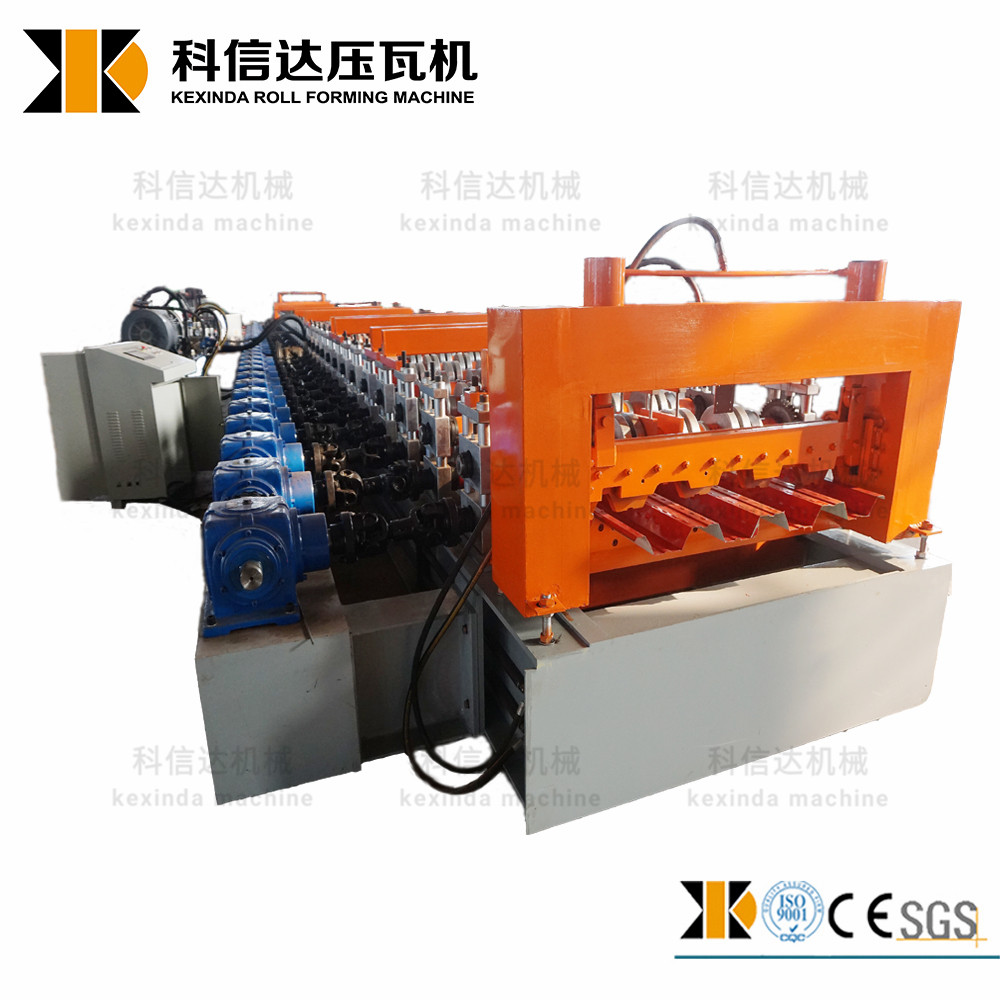

Floor Decking Panel Forming Machine
This floor decking panel forming machine produces high-quality metal sheets for building construction. It features a manual uncoiler, guiding platform, main machine of roll forming, electro-motor, cutting device, hydraulic station, PLC control, and supporter table.
Technical Specifications
Overview
High-Efficiency Floor Decking Production
This industrial-grade roll forming machine is designed for the high-volume, precision manufacturing of floor decking panels. Built with a robust 400mm H-beam frame and advanced NC-PLC control systems, it ensures consistent profile accuracy and durability for demanding construction applications. The system automates the entire process from uncoiling to cutting, delivering reliable performance and structural integrity for metal building components.
Technical Specifications
- Main Power
- 18.5 kw
- Hydraulic Pump Power
- 5.5 kw
- Forming Speed
- 10 m/min
- Roll Stations
- 24 stands
- Shaft Diameter
- 90 mm
- Hydraulic Pressure
- 13-16MPa
- Power Supply
- 380V, 3-Phase, 50Hz
Product Dimensions & Capacity
- Feeding Width
- 1000 mm

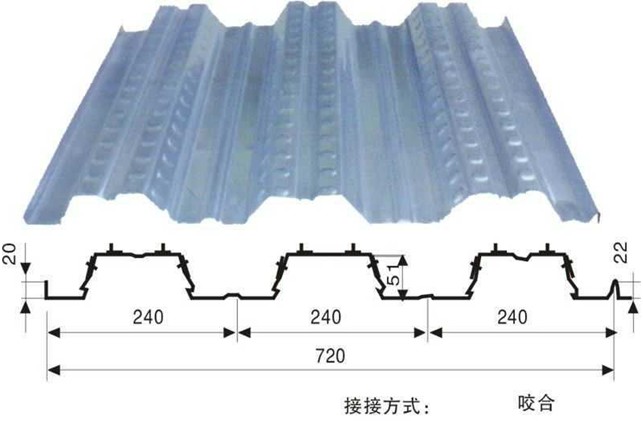

- Effective Width
- 720 mm
- Feeding Thickness
- 0.8-1.3mm
- Overall Dimensions
- 14000×2000×1550mm
- Total Weight
- 14 T
Components & Materials
- Main Frame
- 400mm H-Beam
- Cutter Material Standard
- Cr12
- Roller Finish
- 45# Steel, Chrome Plated (0.05mm)
Features
Included Components
- Manual Uncoiler
- Guiding Platform

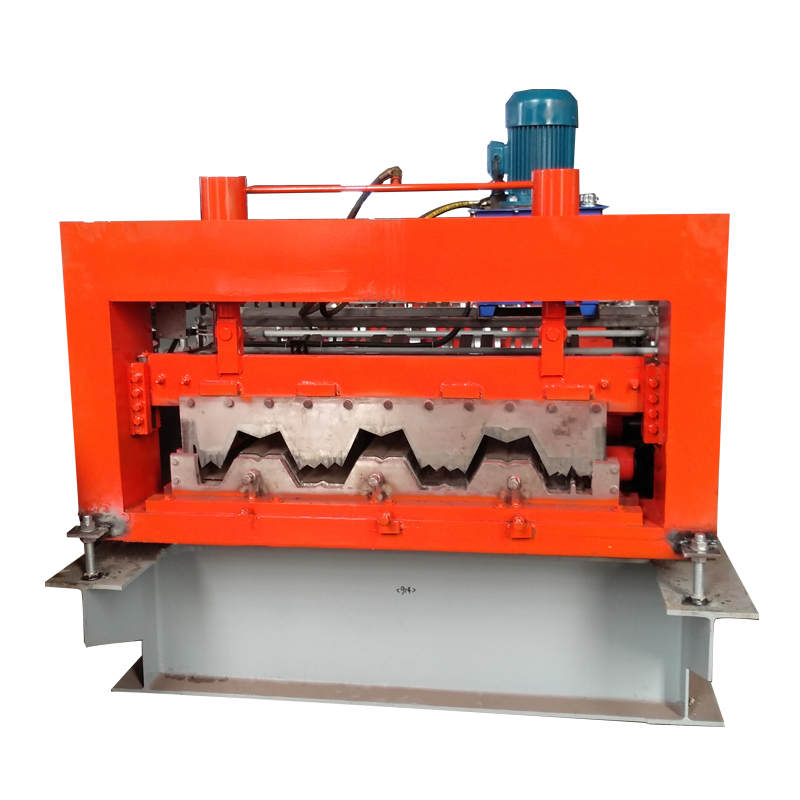

- Main Roll Forming Machine
- Electro-Motor

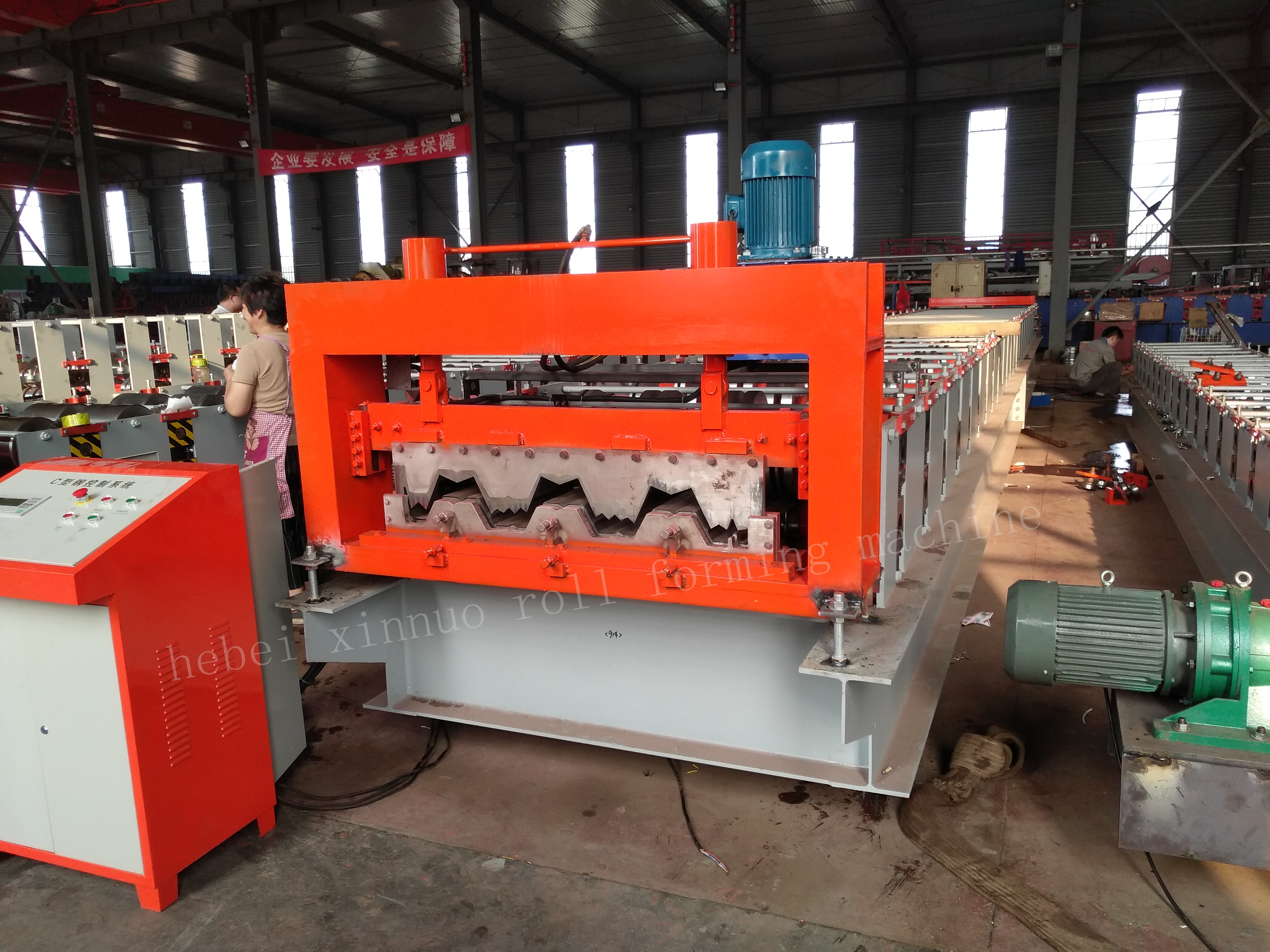

- Cutting Device
- Hydraulic Station
- PLC Control System
- Supporter Table
- Control System
- NC-PLC with Colored Touch Screen
