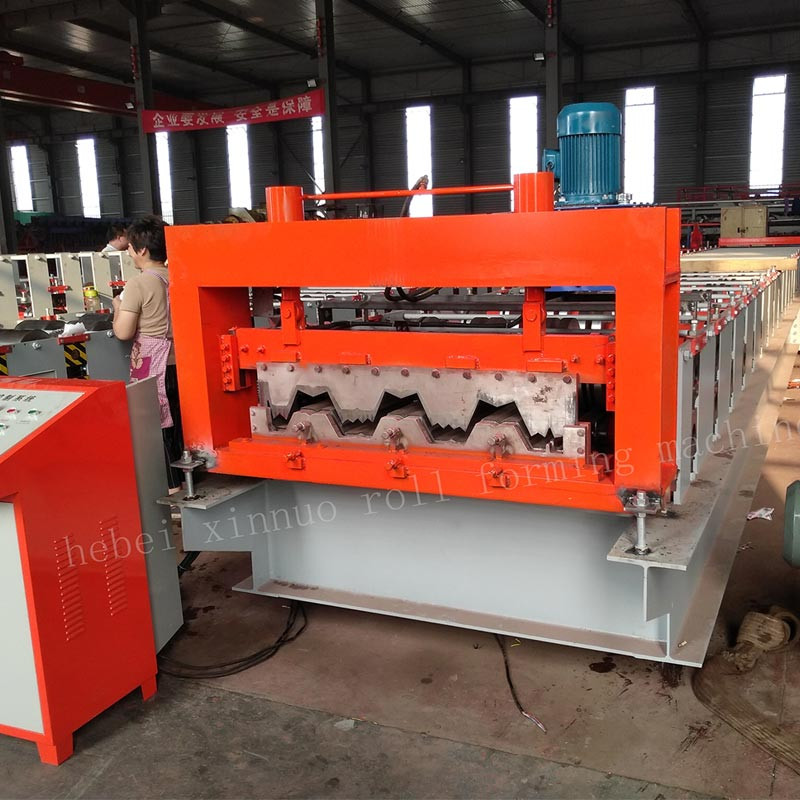

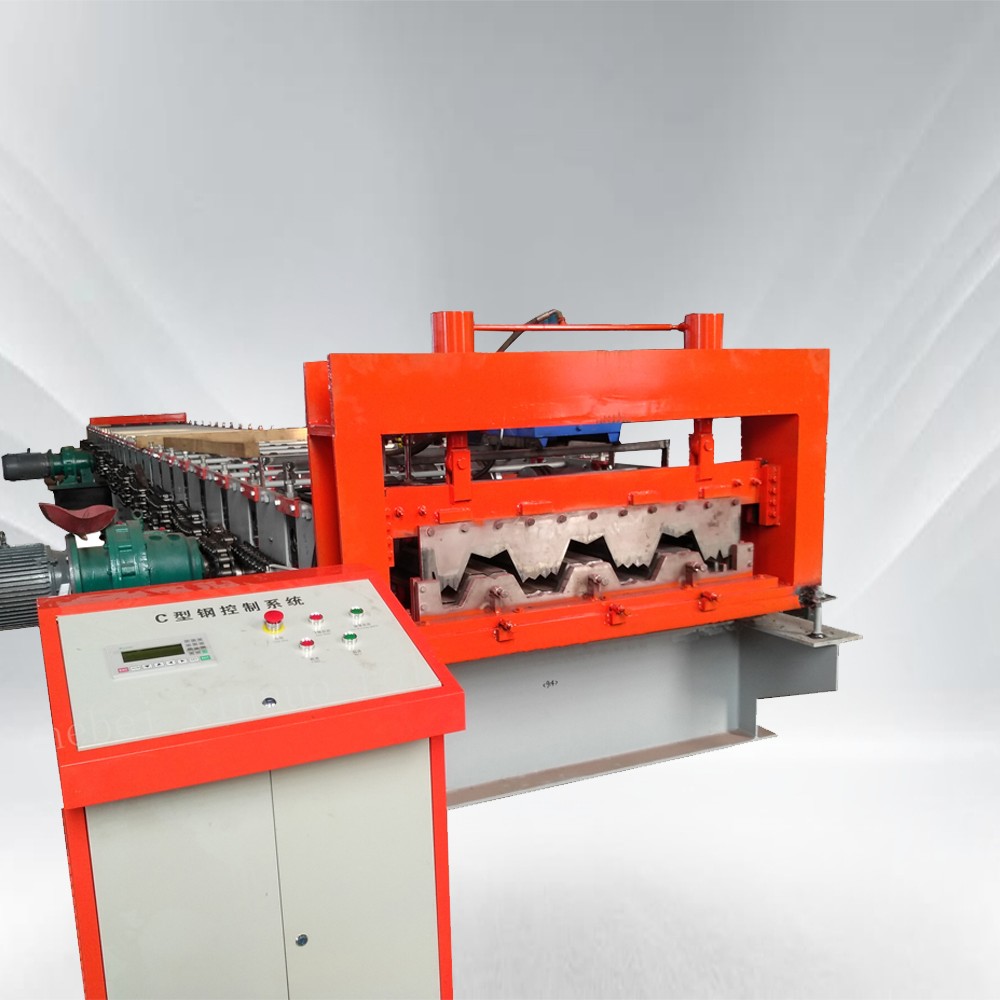

Floor Decking and Roofing Sheet Roll Forming Machine
This roll forming machine is designed for manufacturing floor decking panels, iron sheets, and metal roofing sheets. It utilizes a series of rollers to gradually shape the metal into the desired profile.
Technical Specifications
Product Overview
High-Efficiency Roll Forming Solution

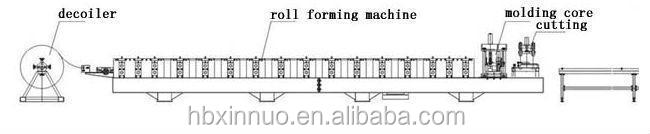

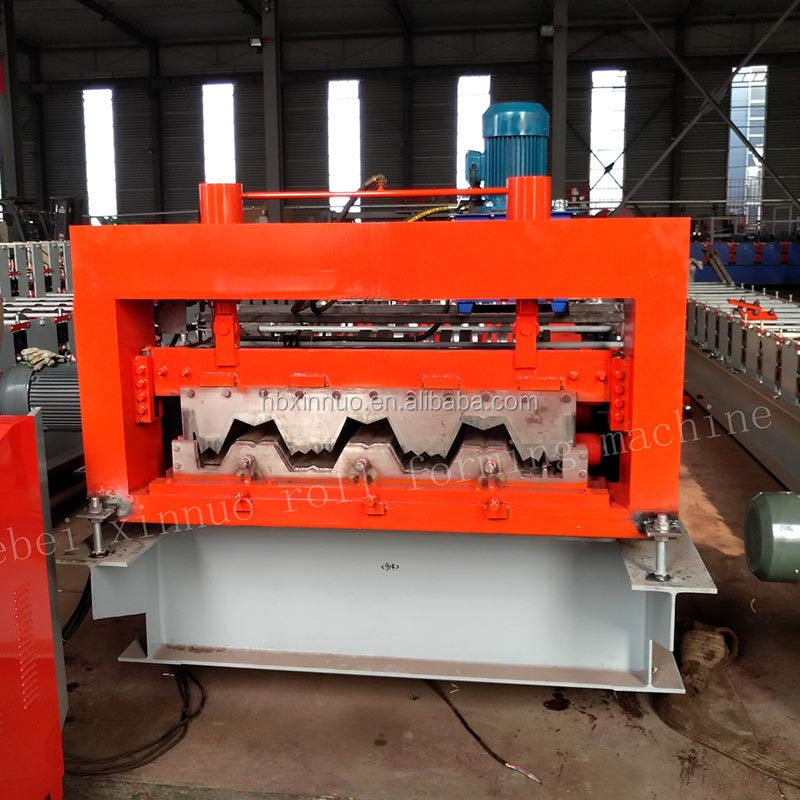

This roll forming machine is engineered for the high-volume production of floor decking panels and metal roofing sheets. It integrates decoiling, forming, and cutting processes into a continuous, automated production line for maximum efficiency. Built with a robust steel frame and precision-engineered rollers, it ensures consistent profile quality and dimensional accuracy for various construction applications.
Technical Specifications
Machine Parameters
| Parameter | Value |
|---|---|
| Material Type | Color Steel Plate |
| Sheet Thickness | 0.8 - 1.5 mm |
| Feeding Width | 1219 mm |
| Effective Width | 1000 mm |
| Production Speed | 8 - 12 m/min |
| Roller Stands | 24 rows |
| Roller Diameter | 90 mm |
| Main Power | 18.5 kW |
Operational Features

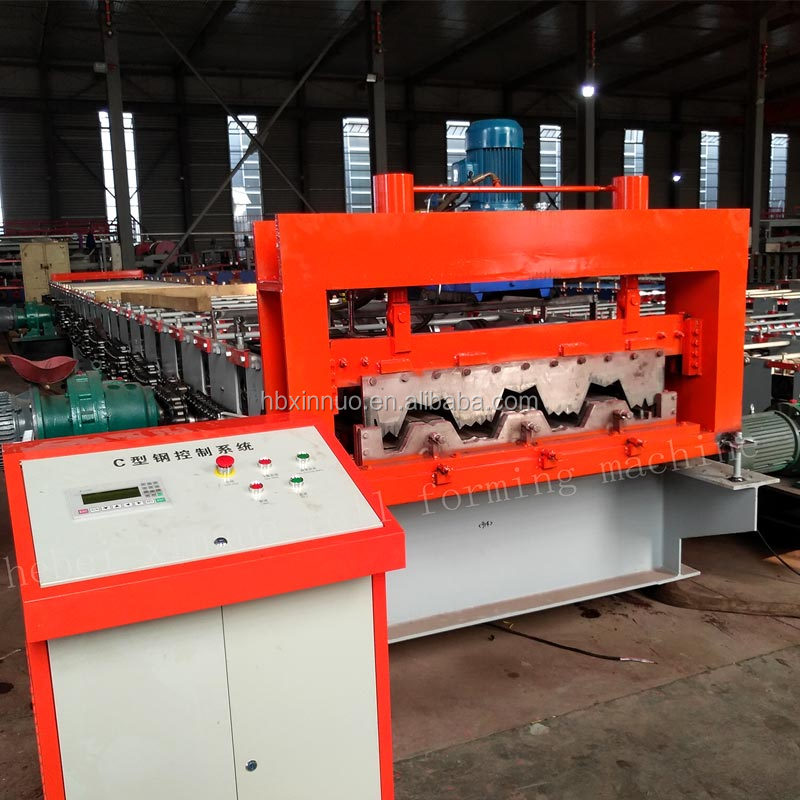

- Control System
- Digital display with push-button controls for speed, length, and batch quantity adjustment
- Warranty
- 1 Year
- Production Capabilities
- Floor DeckingMetal RoofingIron Sheet RollingContinuous Production
