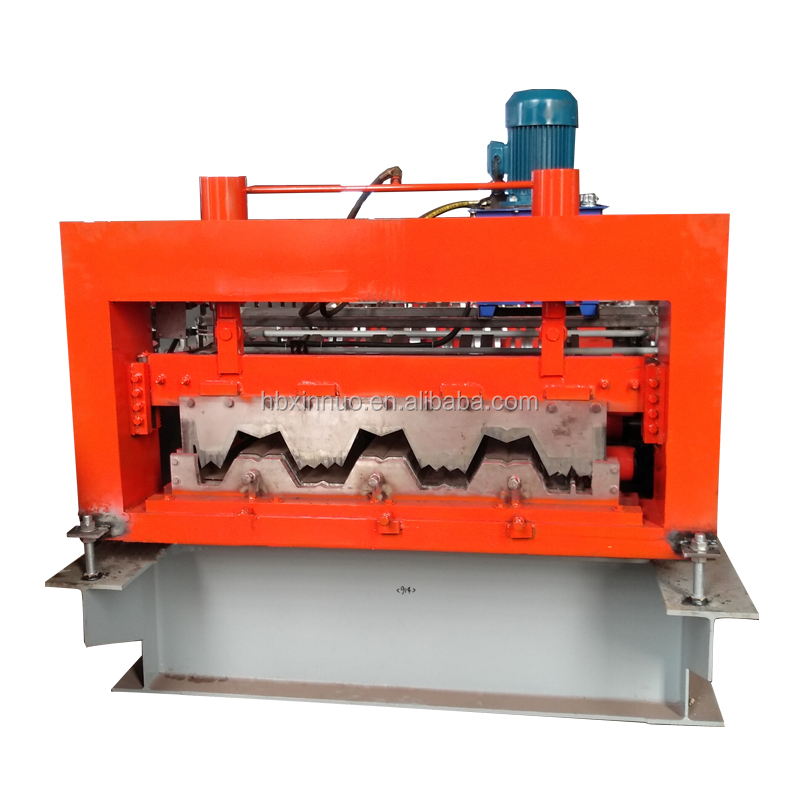

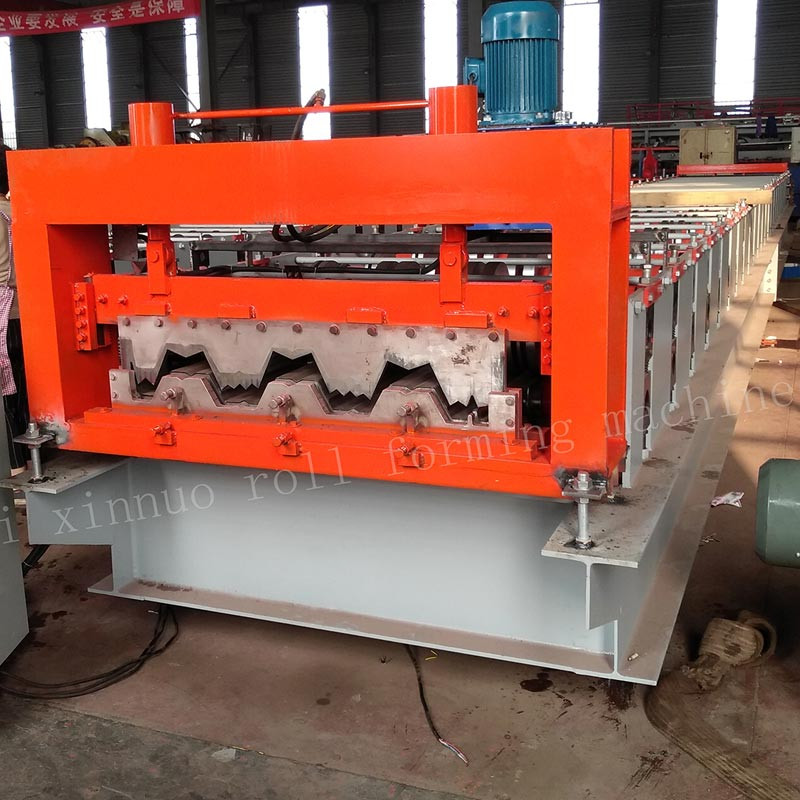

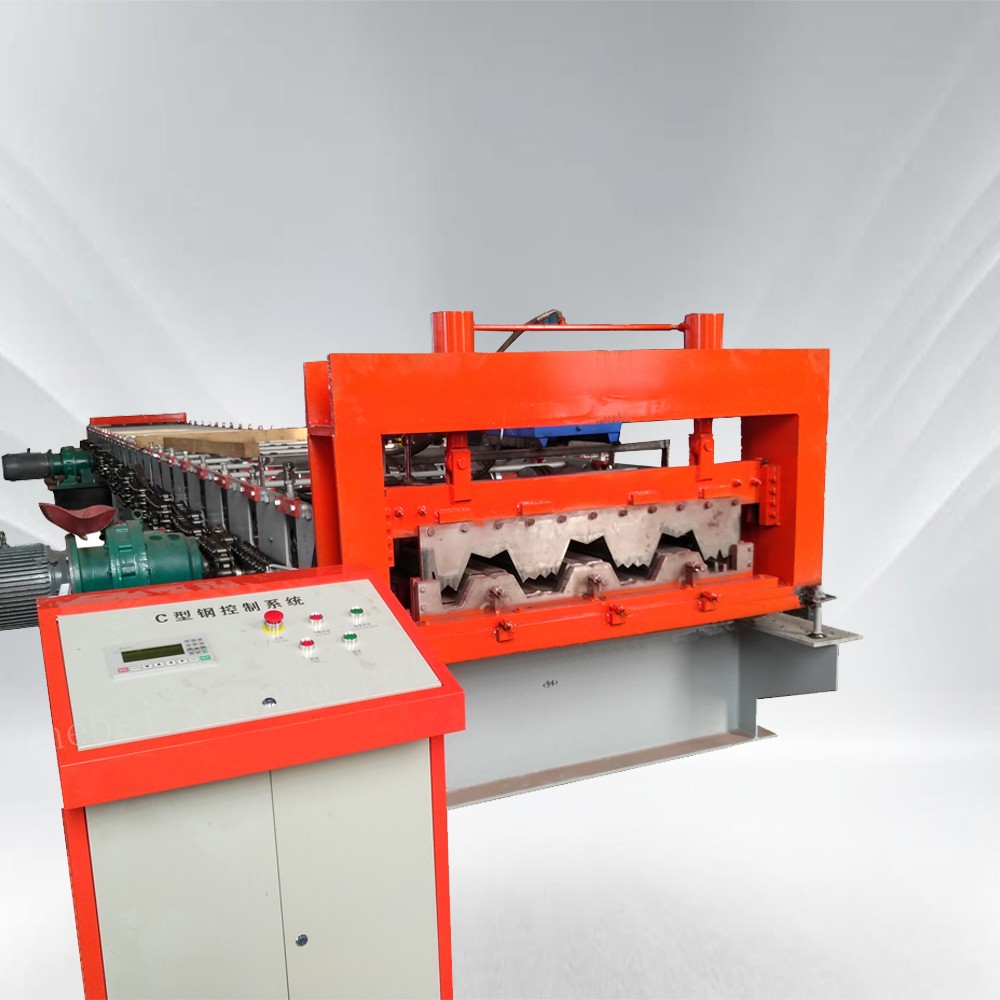

Floor Decking and Roofing Roll Forming Machine
This roll forming machine manufactures metal floor decking and roofing panels. It shapes iron sheets into precise decking profiles for high-volume manufacturing.
Technical Specifications
Overview
High-Efficiency Roll Forming Solution

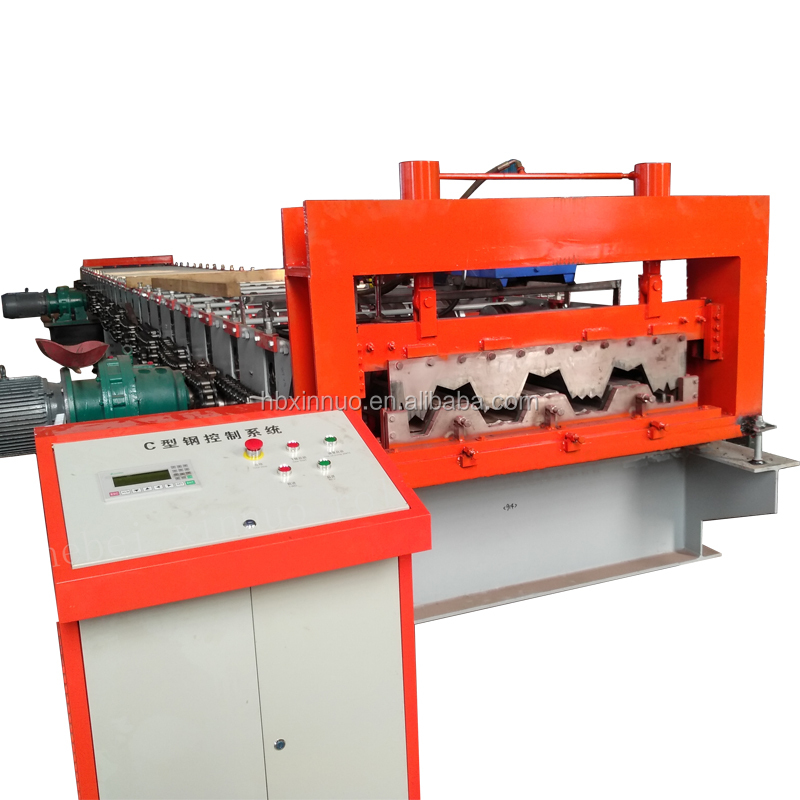

This professional-grade roll forming machine is engineered for the high-volume manufacturing of floor decking panels and metal roofing sheets. Designed for industrial applications, it features a robust construction and precision-engineered rollers to ensure consistent, accurate profiles. The integrated control system allows for seamless operation, making it a reliable and cost-effective choice for construction and metal forming projects.
Technical Specifications
- Main Motor Power
- 18.5 kw
- Production Speed
- 8-12 m/min
- Roller Stands
- 24
- Roller Diameter
- 90 mm
Material Compatibility
- Suitable Material
- Color steel plate
- Processing Thickness
- 0.8-1.5 mm
Dimensions & Profile
Profile Dimensions
| Feature | Measurement |
|---|---|
| Total Width | 720 mm |
| Repeating Sections | 240 mm |
| Edge Height | 20 mm |
| Peak Height | 22 mm |
| Intermediate Height | 51 mm |
- Feeding Width
- 1219 mm
- Effective Width
- 1000 mm
Service & Warranty
- Warranty
- 1 Year
