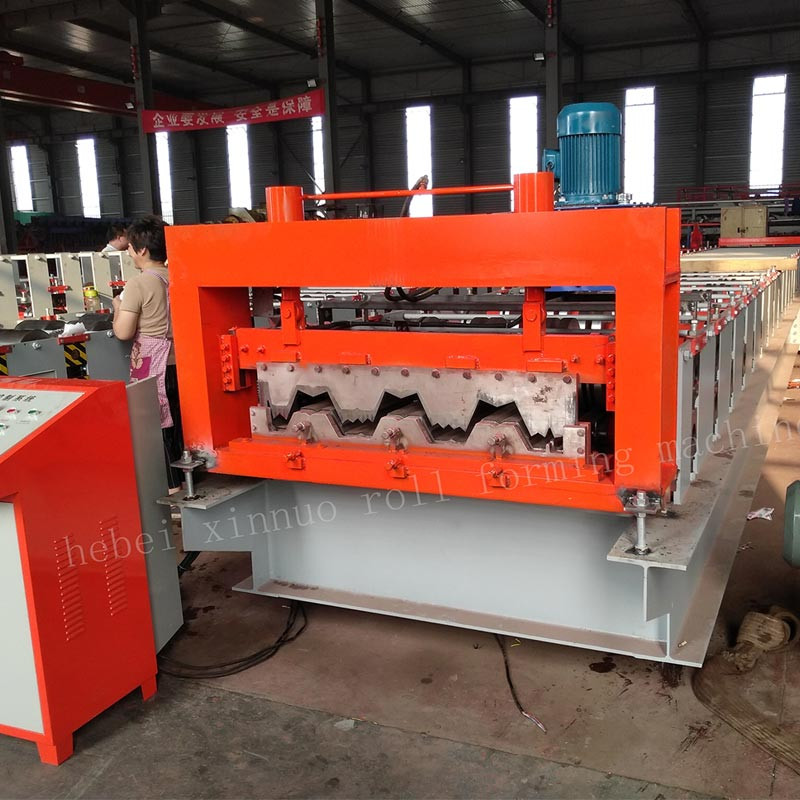

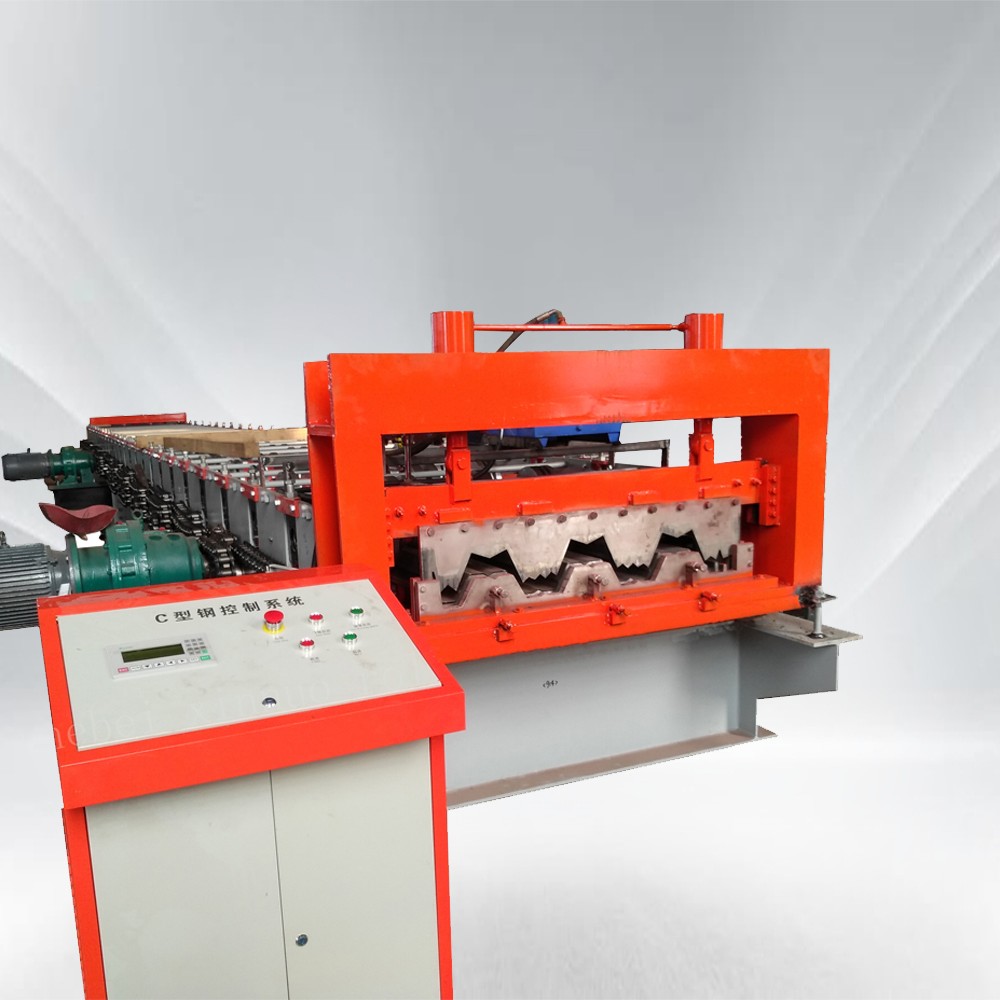

Floor Deck Steel Panel Roll Forming Machine

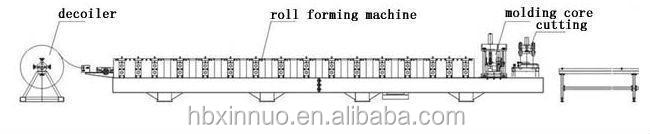

This floor deck roll forming machine is a complete steel panel production line designed for manufacturing floor decking. It utilizes a series of rollers to shape the steel material into the desired floor deck profile.
Technical Specifications
Product Overview
High-Efficiency Floor Decking Production

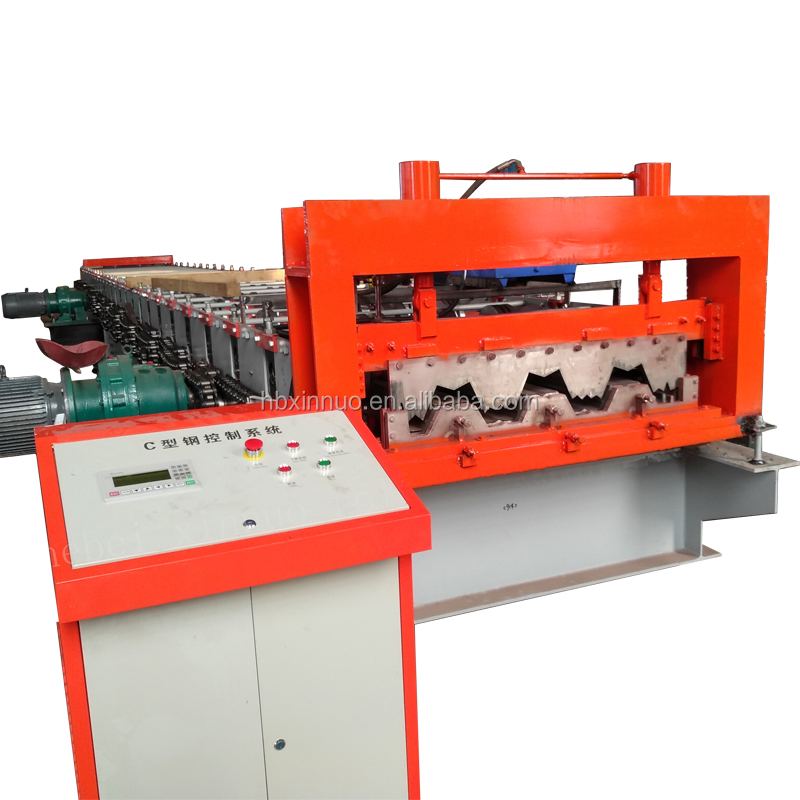

This professional-grade floor deck roll forming machine is engineered for the high-volume production of durable steel floor decking panels. Featuring a robust, heavy-duty construction and a precision-engineered rolling system, it ensures consistent profile quality and dimensional accuracy for demanding construction projects. The integrated automated control system allows for streamlined operation, precise parameter adjustments, and optimized productivity with minimal material waste.
Technical Specifications
Machine Specifications
| Parameter | Value |
|---|---|
| Suitable Material | Color steel plate |
| Material Thickness | 0.8 - 1.5 mm |
| Feeding Width | 1219 mm |
| Effective Width | 1000 mm |
| Roller Stands | 24 rows |
| Roller Diameter | 90 mm |
Production Capabilities
Performance Metrics
18.5 kW
Main Power
12 m/min
Max Production Speed
Design Details

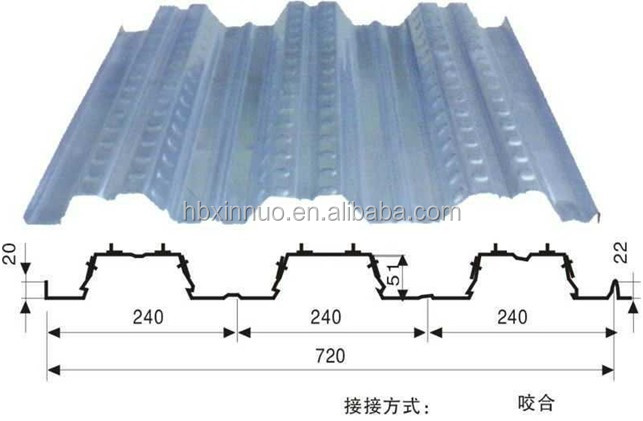

Profile Dimensions
- Total width: 720 mm
- Repeating section width: 240 mm
- Deck heights: 20 mm / 22 mm
- Intermediate rib height: 51 mm
Support & Warranty
- Warranty
- 1-year limited warranty on machine components.
