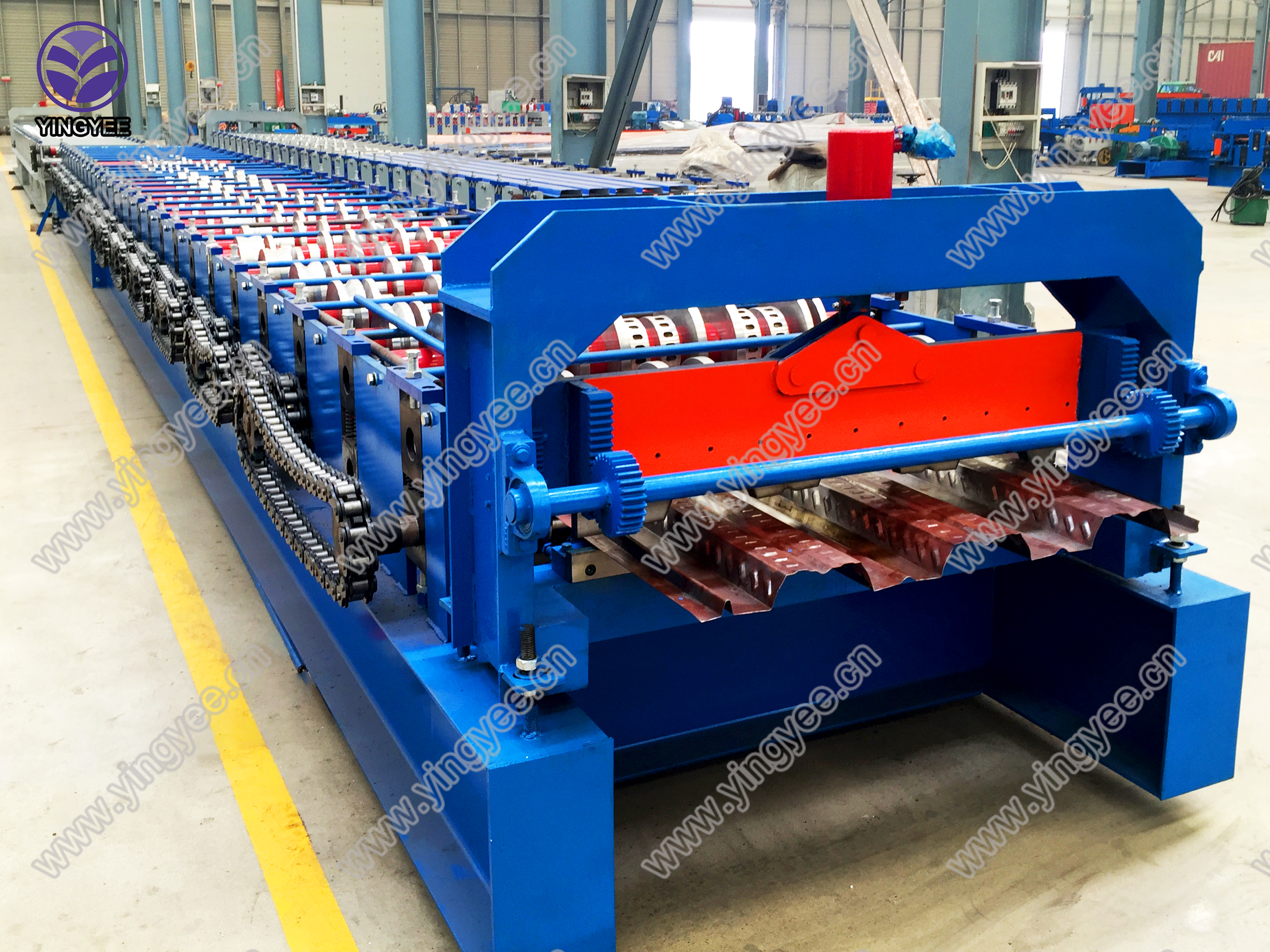

Floor Deck Roll Forming Machine
This floor deck roll forming machine efficiently produces metal floor decking. The machine creates durable and load-bearing floor decks with enhanced structural integrity for various construction applications.
Technical Specifications
Overview
High-Efficiency Floor Deck Production
This industrial-grade floor deck roll forming machine is engineered for the continuous and precise production of metal floor decking profiles. Featuring a robust steel frame and an automated PLC control system, the machine ensures consistent output quality for construction and infrastructure projects. It is designed to handle material thicknesses up to 1.5mm, providing reliable, high-volume manufacturing capabilities.
Technical Specifications
- Motor Power
- 22 kW
- Forming Speed
- 8 m/min
- Roll Stations
- 30
- Drive System
- Chain driven
Material Capabilities
- Compatible Materials
- Colored armor plateQ195-235 steel
- Material Thickness
- 0.8 - 1.2mm (Max 1.5mm)
- Max Input Width
- 1250 mm
- De-coiler Capacity
- 5 T
Construction Components
Shaft Specifications
| Component | Material/Detail |
|---|---|
| Shaft Material | 45# Steel |
| Shaft Diameter | 85mm |
| Roller Material | 45# Steel (Heat treated & chromed) |
| Blade Material | Cr12 (HRC58-62) |
Precision & Control
Control System
PLC ControlledAutomatic Length Measuring
- Forming Tolerance
- +/- 1.5mm
