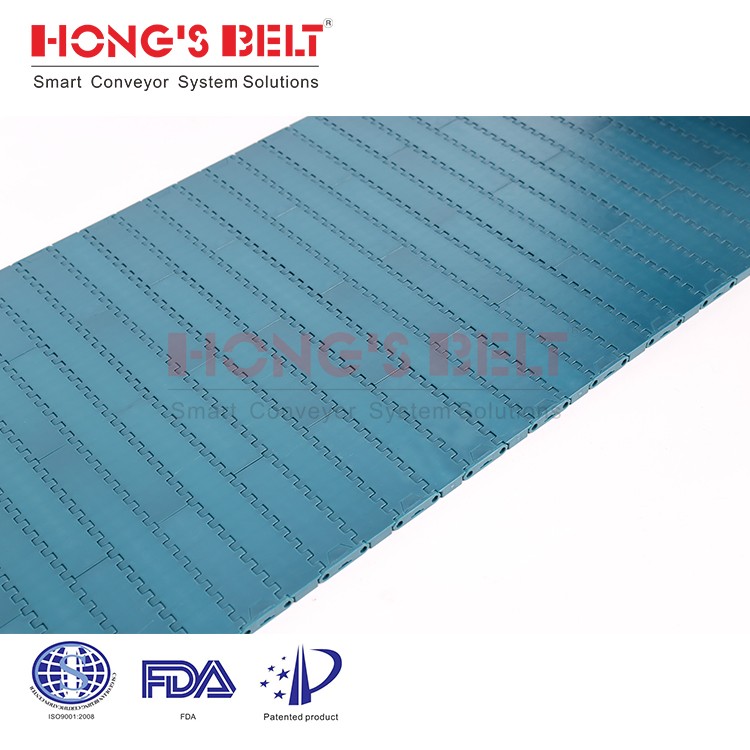

Flat Top Modular Conveyor Belt
This flat top modular conveyor belt is designed for the beverage industry. Its modular design allows for easy assembly and maintenance, ensuring a stable and smooth conveying platform.
Technical Specifications
Product Overview
High-Efficiency Modular Conveyor Belt
This flat top modular plastic conveyor belt is engineered for demanding industrial applications, particularly within the food and beverage sectors. Its modular design facilitates rapid assembly, easy cleaning, and maintenance-free operation, significantly reducing downtime. Built to withstand extreme temperatures and heavy loads, this belt offers a reliable, hygienic solution that enhances production line efficiency.
Technical Specifications
- Pitch
- 25.4 mm
- Thickness
- 8.6 mm
- Minimum Width
- 85 mm
- Open Area
- 0%
- Rod Diameter
- 4.5 mm
- Maximum Load Capacity
- 1.2 tons/m²
- Working Temperature
- -40°C to 260°C
Configuration & Materials
Sprocket Dimensions
- 12T-2R
- 18T-2R
- 20T-2R
- Material Options
- PPPOMPEPA
- Available Colors
- WhiteBlueGrayNatureDark-brown
Features & Compliance
Certifications
FDAEU Approved
Design Features
- Flight: No
- Side Guard: No
- Curve: No
Applications
Industries Served
| Sector | Specific Applications |
|---|---|
| Food Industry | Meat, Poultry, Sea Food, Bakery, Snack Food, Fruit & Vegetables |
| Non-food Industry | Automotive, Tire, Packaging, Printing/Paper, Postal, Corrugated, Can, PET, Textile |
