Fiber Laser Cutting Machine
This fiber laser cutting machine provides a high-precision cutting solution for industrial applications. It utilizes advanced fiber laser technology to deliver clean and accurate cuts on various materials, ensuring consistent cutting performance.
Technical Specifications
Overview
High-Performance Fiber Laser Cutting

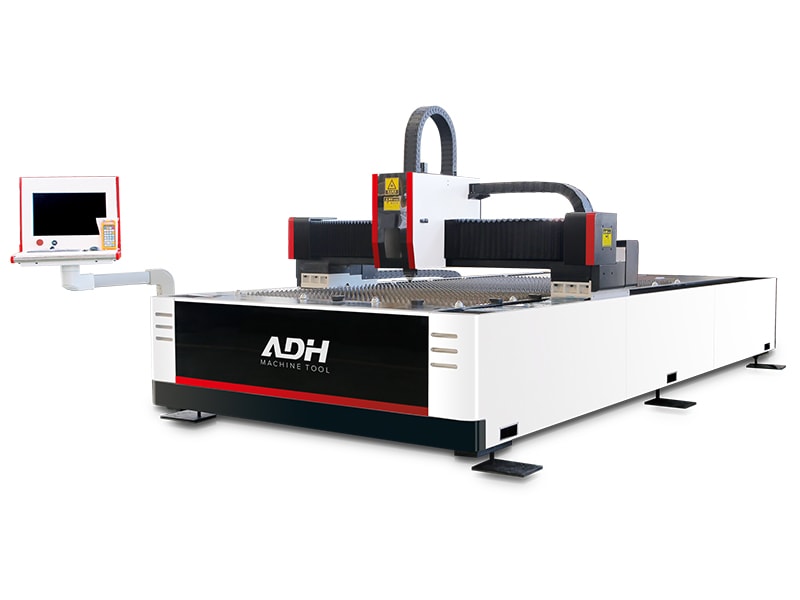

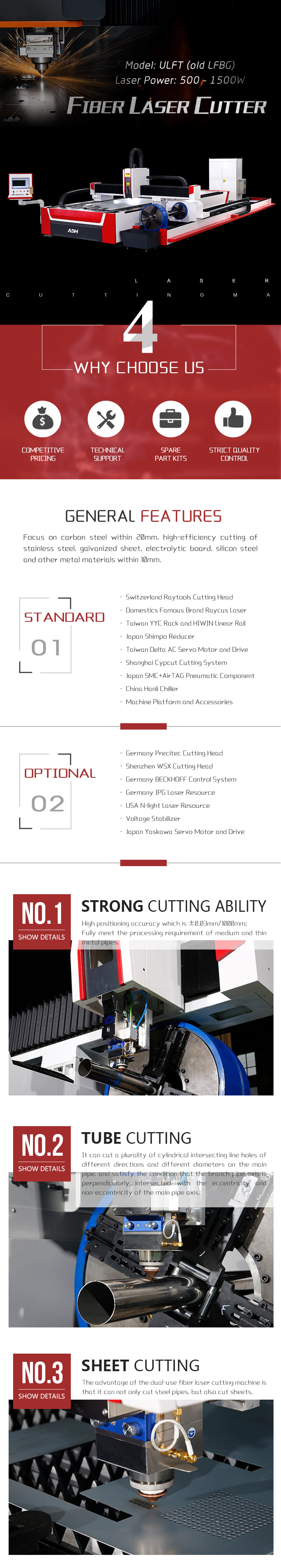

The ULFT Fiber Laser Cutting Machine is a versatile, high-precision industrial solution engineered for efficient processing of both metal sheets and pipes. It features a robust frame design with advanced CNC control, ensuring high positioning accuracy and stability during operation. Equipped with premium components like motorized focus cutting heads and high-speed servo motors, this machine optimizes productivity for diverse metal fabrication tasks.
Technical Specifications
Material Cutting Depth
| Material | Max Thickness |
|---|---|
| Carbon Steel | 20mm |
| Stainless/Galvanized/Silicon Steel | 10mm |
- Positioning Accuracy
- ±0.03mm/1000mm
- Maximum Moving Speed (X/Y)
- 120 m/min
- Available Laser Power
- 500W1500W12,000W

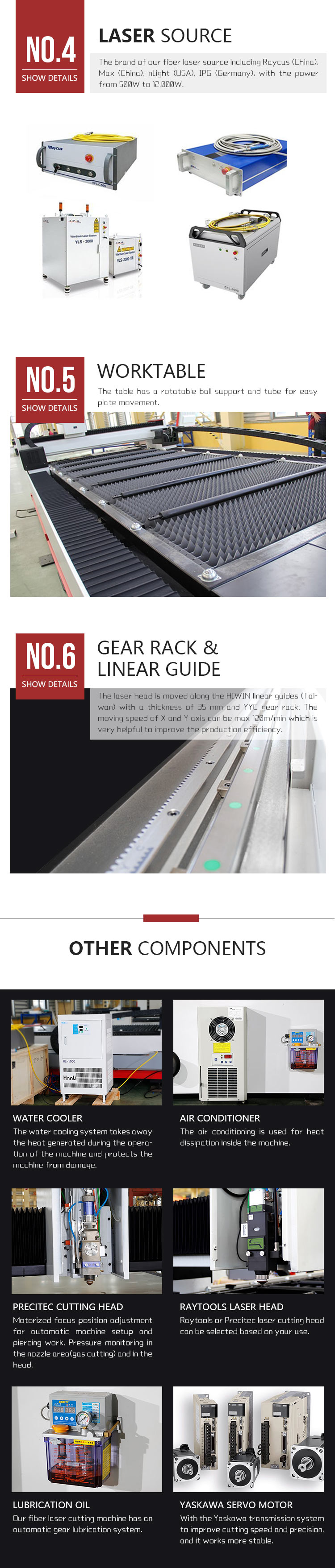

System Components
Standard & Optional Equipment
- Linear Guides: HIWIN
- Gear Rack: YYC
- Servo Motor: Yaskawa/Delta
- Cooling: Integrated water chiller
- Automation: Automatic gear lubrication system
- Climate Control: Internal air conditioner
Compatible Cutting Heads
PrecitecRaytoolsWSX
