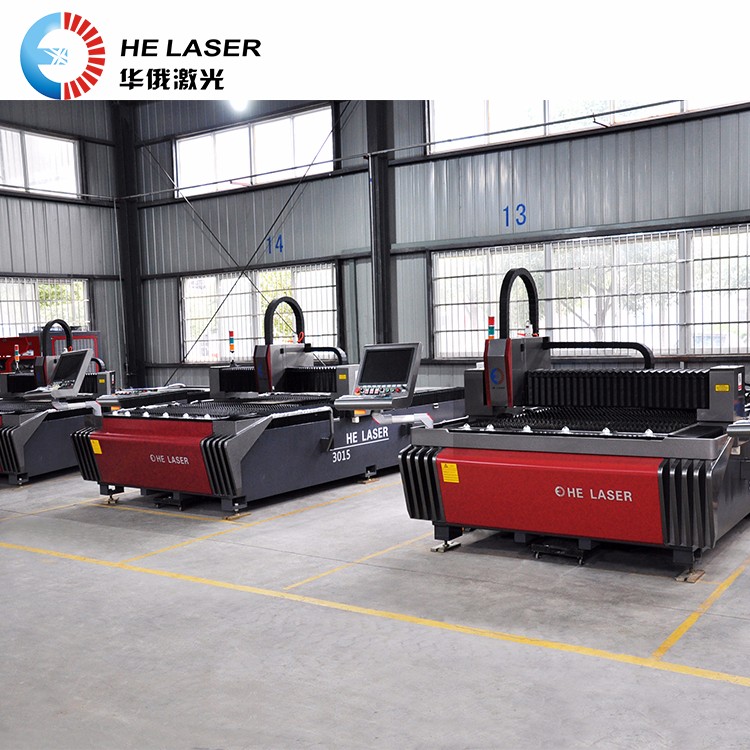

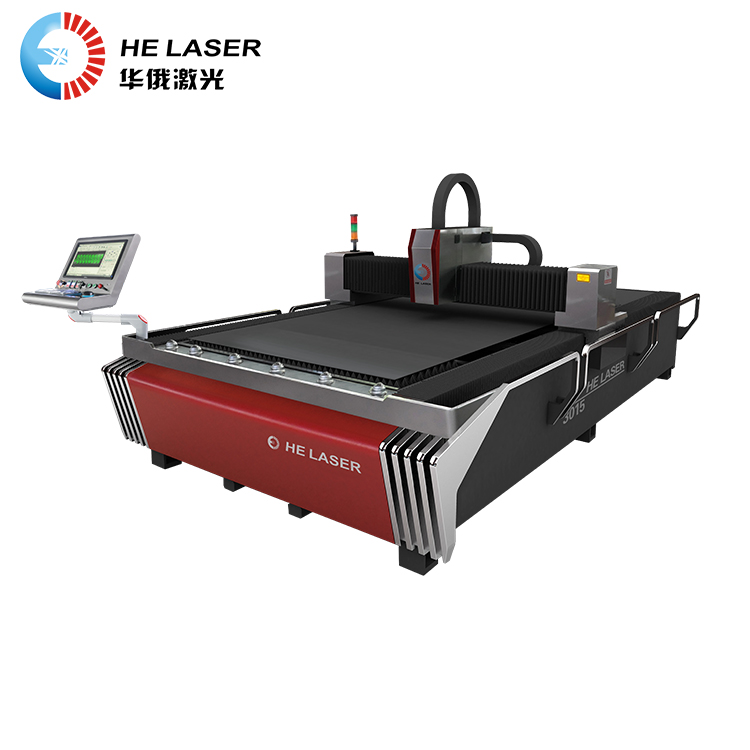

Fiber Laser Cutting Machine
This fiber laser cutting machine is designed for industrial applications, delivering precise cuts on materials like steel, aluminum, and stainless steel. It features a robust frame, an advanced control system, and a high-power fiber laser source for efficient and accurate cutting.
Technical Specifications
Overview
High-Performance Fiber Laser Cutting System
This industrial fiber laser cutting machine is engineered for high-precision sheet metal processing, featuring a robust gantry structure and advanced CNC control for 24/7 continuous operation. It combines high-speed dual gear rack transmission with a specialized fiber laser source to deliver clean, accurate cuts on materials like carbon steel and stainless steel. Designed with operator efficiency in mind, the system includes automated material handling, pneumatic clamping, and a comprehensive safety enclosure.
Performance Metrics
Cutting Capabilities
Precision Specifications
| Parameter | Value |
|---|---|
| Axial Accuracy | ±0.05 mm/m |
| Repeat Accuracy | ±0.03 mm/m |
| Min Beam Width | ≤0.125 mm |
| Max Combined Speed | 98 m/min |
Technical Specifications
Dimensions & Weight
- Work Area: 1500mm x 3000mm
- Outline Size: 4400mm x 2450mm x 1750mm
- Machine Weight: 4500kg
- Power Supply
- 380V / 50Hz, Three-phase five-line
Features
Safety & Environment
- System Highlights
- Continuous 24h OperationPneumatic ClampingAuto Oil FillingDust Extraction UnitDual Temp Water ChillerRed Light Positioning
