Engine Cylinder Liner
This precision-engineered cylinder liner ensures a tight seal and efficient heat transfer within the engine cylinder. Constructed from durable materials, it resists wear and corrosion, extending the engine's lifespan.
Technical Specifications
Overview

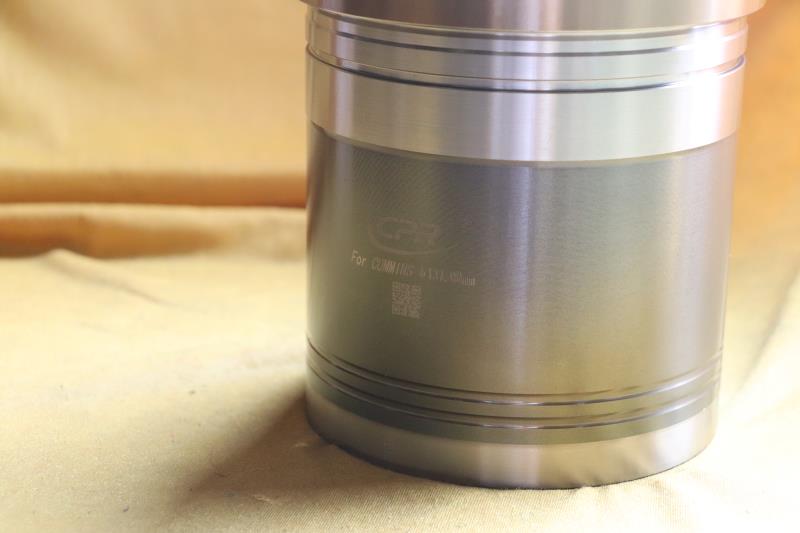

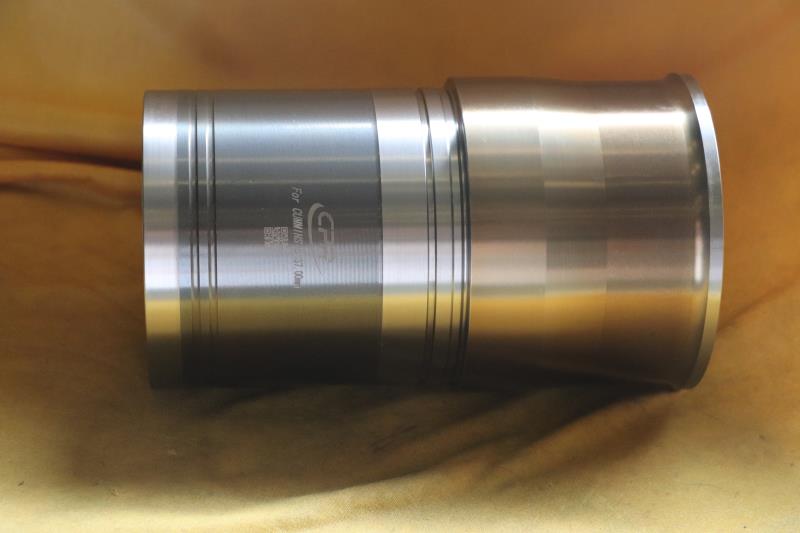

Precision Engine Cylinder Liner
This high-performance cylinder liner is engineered for Cummins ISX engines, ensuring optimal combustion and engine longevity. Constructed from durable cast iron and steel, it features advanced surface treatments including nitriding and phosphating for superior wear resistance. Designed with a 137mm bore, it provides reliable sealing and efficient cooling to maintain peak engine performance.
Technical Specifications
Surface Treatment
- Phosphating
- Platform
- Vulcanization
- Nitriding
- Bore Diameter
- 137 mm
- Total Length
- 270.55 mm
- Hardness (HB)
- 210-280
- Material
- Cast ironSteel
Compatibility & Performance
Key Features
Good sealingGood cooling effectWear-resistant
- Compatible Engine Code
- B3904166
Logistics & Warranty
Warranty Period
12 months
Warranty
- Monthly Supply Ability
- 5000 pieces
