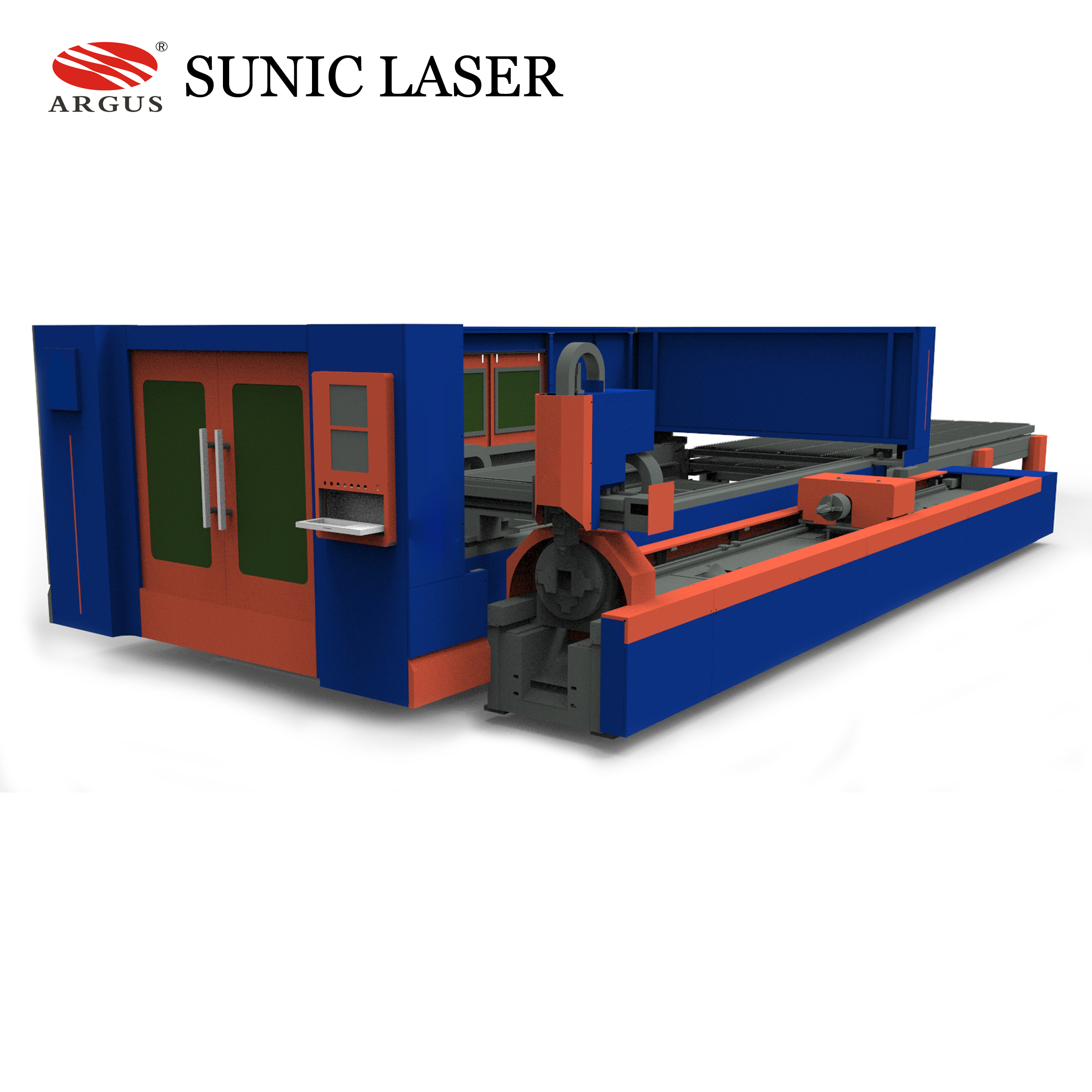

Enclosed Fiber Laser Tube Cutting Machine
This enclosed fiber laser tube cutting machine is designed for precise metal tube processing. Its fully enclosed structure enhances safety and reduces noise during operation.
Technical Specifications
Overview
High-Efficiency Enclosed Fiber Laser Cutting System
This gantry-style, dual-side driven fiber laser cutting machine is engineered for high-precision metal processing. Featuring a fully enclosed structure, it ensures enhanced safety, dust control, and operational reliability. With a robust steel frame and advanced motion control, it delivers consistent, high-speed cutting performance suitable for demanding industrial applications ranging from automotive parts to electrical cabinetry.
Performance Metrics
Key Performance Metrics
60 m/min
Max Positioning Speed
0.05 mm/mm
Positioning Accuracy
0.03 mm/mm
Repeatability
Technical Specifications
Technical Data
| Feature | Specification |
|---|---|
| Worktable Size | 3000mm x 1500mm |
| Max Feeding Height | 80mm |
| Laser Power Range | 500W - 3000W |
| Power Supply | 3-Phase AC380V, 50/60Hz |
| Cooling System | Dual-temperature chiller |
Supported File Formats
- PLT
- DXF
- BMP
- AI
- DST
- DWG
Material Compatibility
- Compatible Materials
- Stainless SteelCarbon SteelAlloy SteelGalvanized SteelMild SteelSpring SteelAluminumBrassCopperTitanium
Operational Features
Safety & Operational Features
Enclosed Safety DesignResidual Material CollectionDust Removal DeviceDual-Pressure Gas ControlStress-Relieved BaseCE Compliant
