EN28 Magnetic Incremental Rotary Encoder
This magnetic incremental encoder provides precise rotary position feedback. Its robust construction and dual channel output make it suitable for demanding industrial environments.
Technical Specifications
Overview

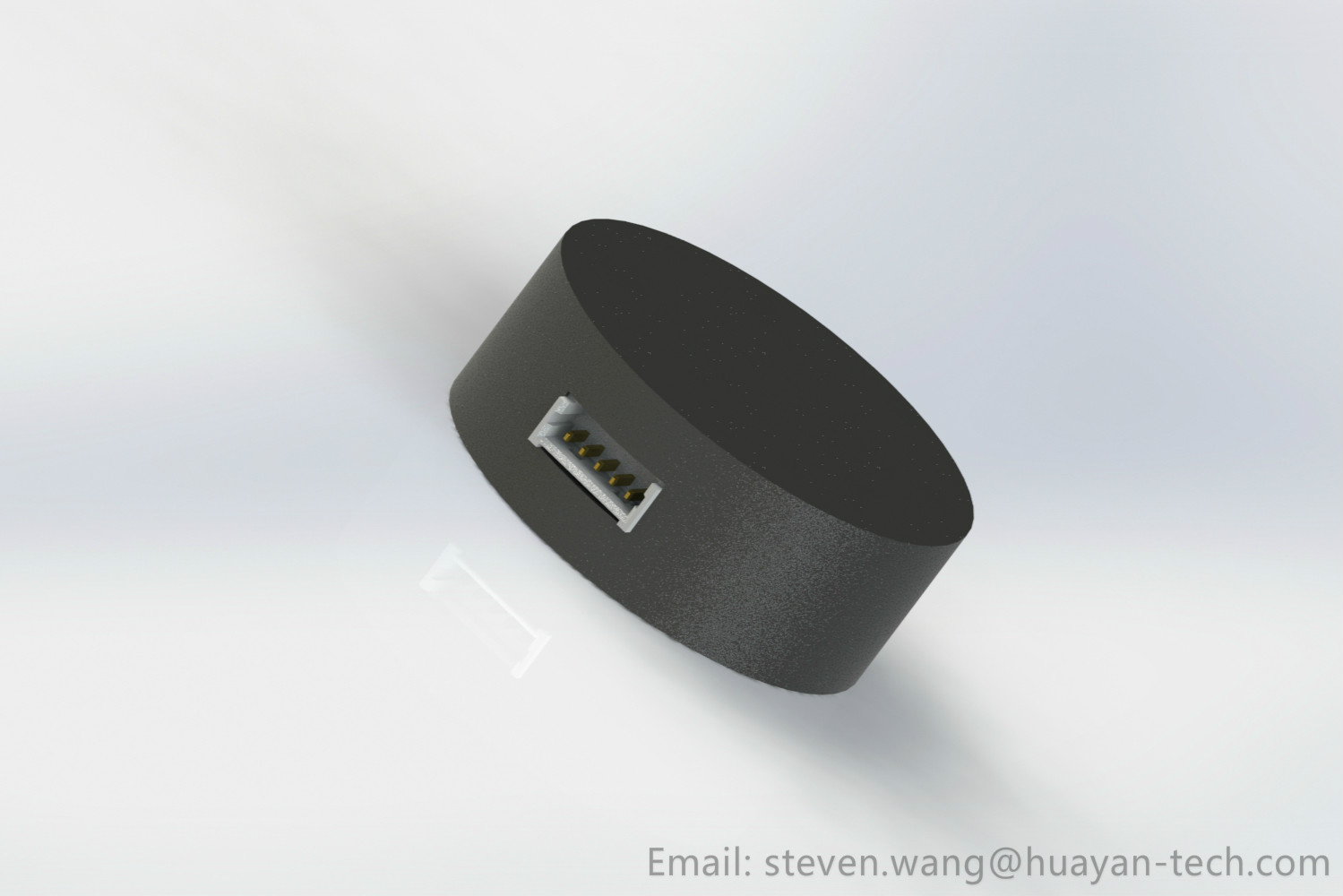

EN28 Magnetic Incremental Encoder
The EN28 is a compact magnetic incremental encoder engineered for precise rotary position feedback in industrial environments. Featuring a robust construction, this device provides reliable and accurate performance for speed sensing and position tracking applications. It is designed for seamless integration, offering dual-channel output and stable operation across a wide temperature range.
Technical Specifications
Output Pulses
- 8
- 12
- Supply Voltage (Vcc)
- 5 V
- Number of Channels
- Single/Dual
- Operating Temperature Range
- -20°C to 80°C
Dimensions and Mounting
Series Dimensions Comparison
| Type | Diameter (mm) |
|---|---|
| EN22 | 22 |
| EN28 | 28 |
| EN36 | 36 |
- Mounting Interface Width
- 8 mm
- Height
- 10.9 mm
Connectivity
Pinout Configuration
| Pin | Function |
|---|---|
| PIN1 | Vcc |
| PIN2 | GND |
| PIN3 | Channel A Output |
| PIN4 | Channel B Output |
| PIN5 | Empty |
