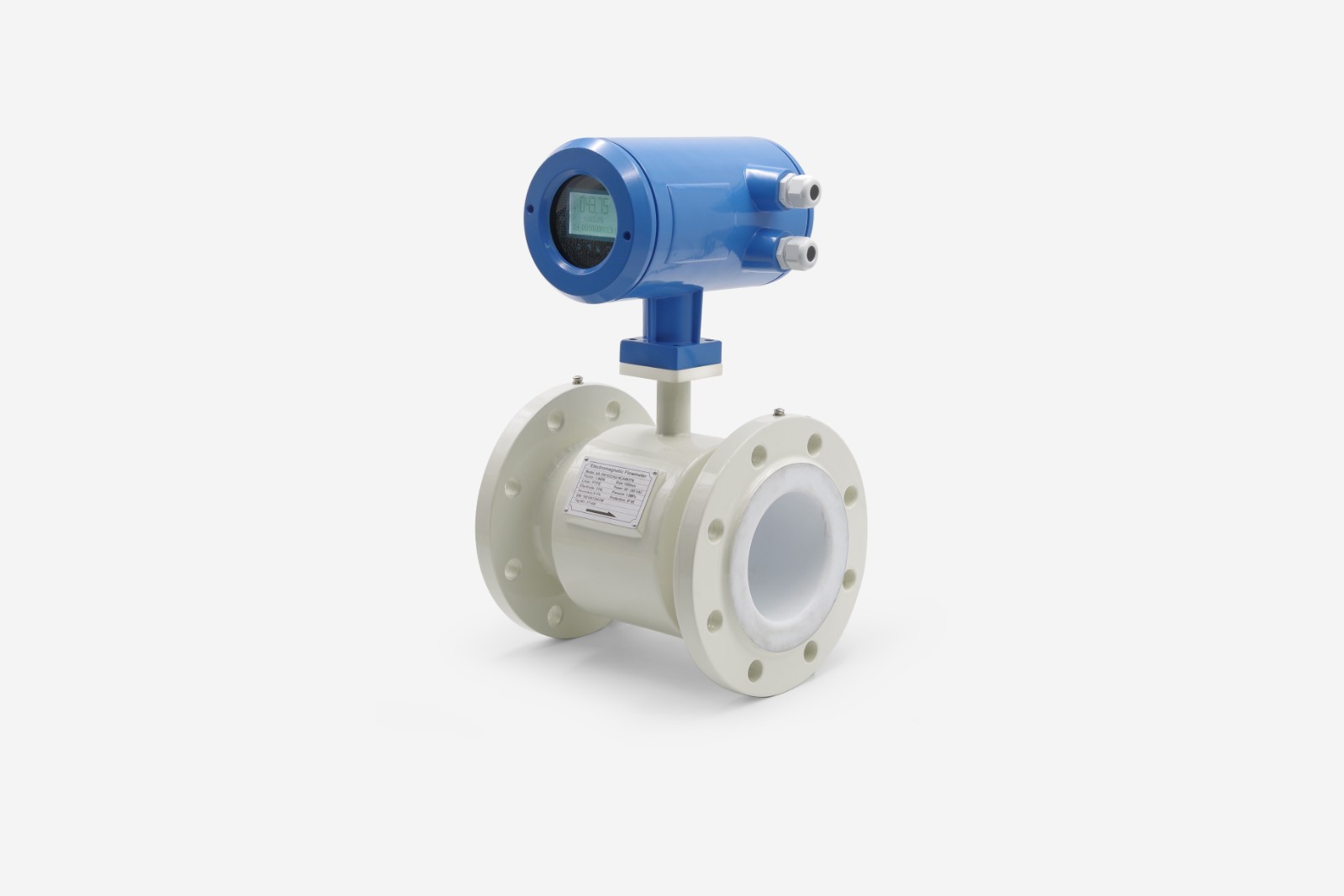

Electromagnetic Flow Meter for Conductive Liquids
The electromagnetic flow meter measures liquid flow rate by applying a magnetic field to the fluid and measuring the induced voltage. Suitable for water, chemicals, and slurries, it offers accuracy from ±0.5% to ±1.0% and IP65 to IP68 protection.
Technical Specifications
Overview
High-Precision Electromagnetic Flow Measurement
The LDQ-98A electromagnetic flow meter is an economical and reliable solution designed for high-precision flow measurement across diverse process conditions. Engineered for stability and minimal magnetic interference, it delivers consistent signal output even in demanding environments. This versatile instrument is widely utilized in critical industries, including oil and gas, water treatment, and chemical processing.
Performance Metrics
Flow Range
30 m3/h
Max Flow Rate
5 m/s
Max Velocity
Accuracy Class
0.5%
Operating Conditions
- Pressure Rating
- 16 bar
- Temperature Range
- -25 to 180°C
Electrical & Connectivity
Power Supply Options
- 12V-36V DC
- 85-265V AC
- 3.6V Battery
- Output Signals
- 4-20mAPulseRS485
Physical Specifications
Protection Rating
IP68IP65
Construction Details
| Feature | Specification |
|---|---|
| Lining Material | PTFE |
| Connection Type | Flange |
| Model | DN50 / ALM-EMF6000A04017N |
