Electrical Position Switch
This electrical position switch is designed for industrial applications. It is suitable for use in a variety of control systems, providing accurate position feedback.
Technical Specifications
Overview
Versatile Electrical Position Switch
This electrical position switch is designed for reliable control in industrial circuits, supporting AC voltages up to 660V and DC voltages below 400V. Built with a durable zinc alloy and high-grade anti-flame plastic body, it features silver alloy contacts for high resistance to electrical erosion. It is ideal for signal control, interlocking, and warning applications in various automation environments.
Electrical Ratings
- Rated Insulation Voltage (Ui)
- 600 V
- Conventional Heating Current (Ith)
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
- Power Frequency Withstand Voltage
- AC 2.5KV/min
Performance Metrics
Mechanical Life
1,000,000 cycles
Pushbutton
500,000 cycles
Selector Switch
Electrical Life
500,000 cycles
Pushbutton
250,000 cycles
Selector Switch
Compliance & Standards
- Certifications
- CEISO 9001RoHSUL
- Standards Compliance
- GB/T14048.1IEC60947-5-1
Technical Specifications

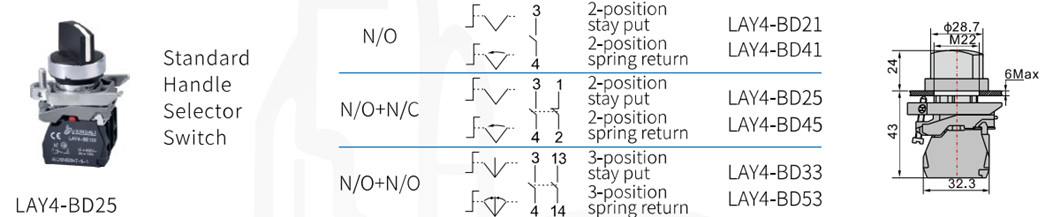

Mounting Specifications
| Parameter | Value |
|---|---|
| Mounting Diameter | φ28.7mm |
| Threading | M22 |
| Max Panel Thickness | 6mm |
| Base Width | 32.3mm |
