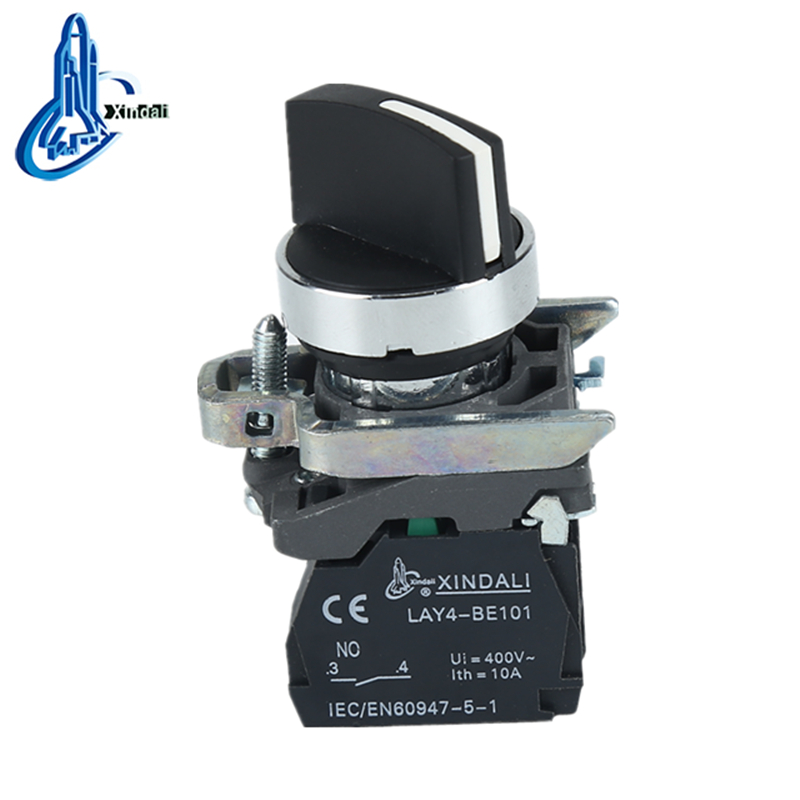

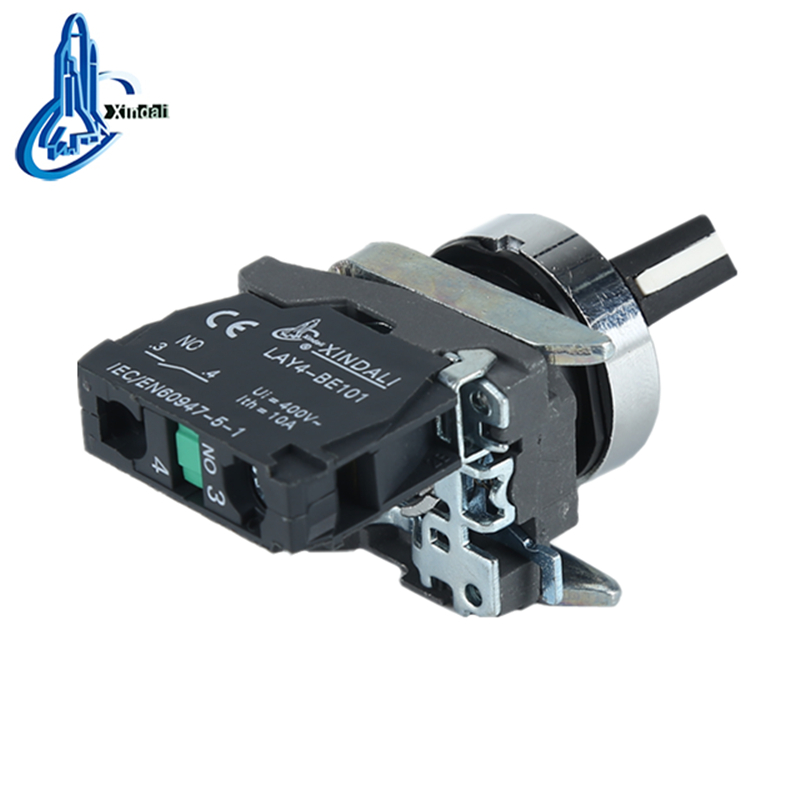

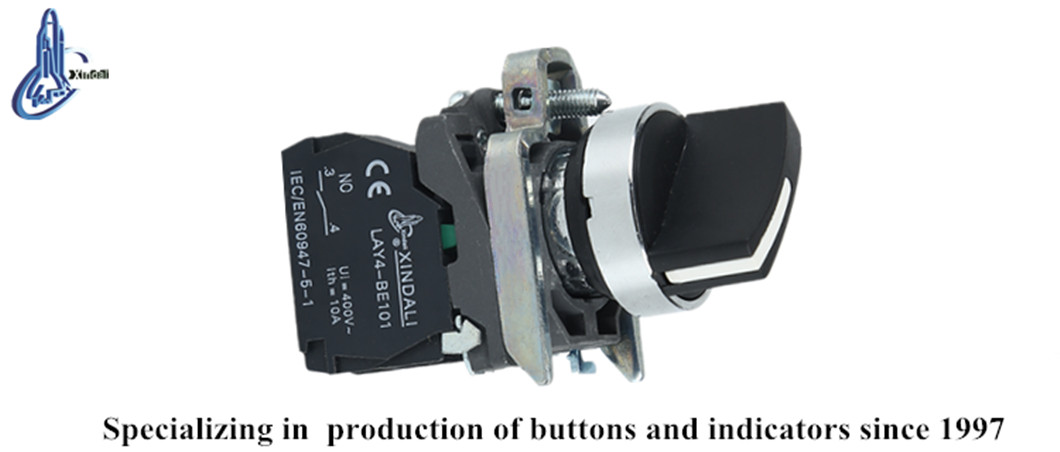

Electrical Position Switch
This electrical position switch is used in controlling circuits of AC voltage up to 660V/AC50Hz or 60Hz and DC voltage below 400V. It is suitable for controlling signals and interlocking purposes.
Technical Specifications
Overview
Industrial Electrical Position Switch
This versatile electrical position switch is designed for reliable control circuit applications, supporting AC voltages up to 660V and DC voltages below 400V. Built with a durable zinc alloy and high-grade anti-flame plastic construction, it features silver alloy contacts to ensure superior resistance to electrical erosion. Compliant with international standards including IEC60947-5-1, this switch is an ideal solution for signal control, interlocking, and status indication in demanding industrial environments.
Electrical Ratings
- Rated Insulation Voltage
- AC 600V (50Hz/60Hz)
- Conventional Heating Current
- 10 A
- Withstand Voltage
- AC 2.5KV/min
- Voltage Wave Tolerance
- ±20%
Performance Metrics
- Contact Resistance
- ≤25mΩ
- Insulation Resistance
- ≥50MΩ
- Signal Lamp Brightness
- 60 cd/m2
- Continuous Working Life
- 100000 hours
Durability
Mechanical Life
| Component | Cycles |
|---|---|
| Pushbutton | 1,000,000 |
| Selector Switch | 500,000 |
Electrical Life
| Component | Cycles |
|---|---|
| Pushbutton | 5,000,000 |
| Selector Switch | 250,000 |
Compliance
- Certifications & Standards
- CEISO 9001RoHSULIEC60947-5-1GB/T14048.1
