Electric Single Girder Overhead Crane
This electric single girder overhead crane features a computer-optimized box-typed main girder and a low clearance trolley. The crane offers smooth operation with stepless speed control and is finished with a durable epoxy zinc-rich primer.
Technical Specifications
Overview

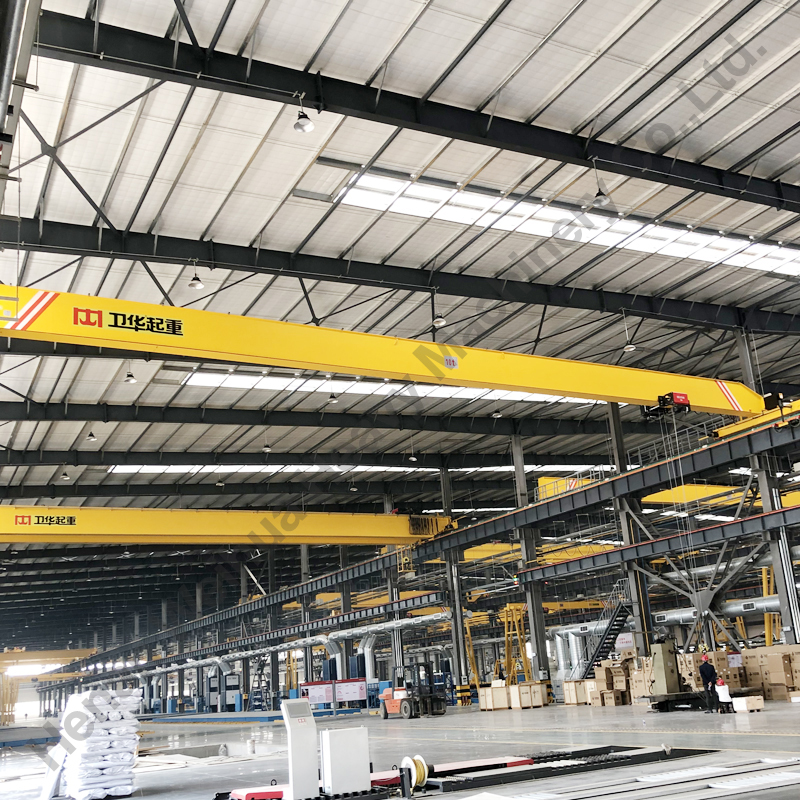

HD Model European Standard Single Girder Overhead Crane
This advanced electric single girder overhead crane is designed and manufactured according to strict FEM/DIN standards. Its compact, box-typed main girder structure minimizes wheel pressure, making it an ideal solution for workshops with limited space. Engineered for precision, it is widely utilized in machinery manufacturing, metallurgy, and logistics hubs where accurate load positioning is essential.
Performance Metrics
Lifting Capacity Range
1 t
Minimum Capacity
20 t
Maximum Capacity
Work Duty
A4A5
Technical Specifications
Crane Specifications Table
| Capacity (t) | Span (m) | Height (m) | Track |
|---|---|---|---|
| 1 | 7.5~22.5 | 6~12 | P24 |
| 2 | 6~12 | 6~12 | P24 |
| 3.2 | 6~12 | 6~12 | P24 |
| 5 | 6~12 | 6~12 | P24, P30 |
| 10 | 6~12 | 6~12 | P30 |
| 12.5 | 6~12 | 6~12 | P30 |
| 16 | 9~12 | 9~12 | P43 |
| 20 | 9~12 | 9~12 | P43 |
- Operating Temperature
- -20℃ to +40℃
- Power Supply
- 380V, 50Hz
Safety & Features
Design Highlights
- Computer optimized box-typed main girder
- Low clearance trolley structure
- Three-in-one motor drive with stepless speed control
- Shot blasting grade Sa2.5
- Epoxy zinc-rich primer (140μm film thickness)
- Safety Protection Systems
- Locked fall-proof reducerRain-cover for outdoor hoistAlarm indicator lightsInfrared anti-collisionPhase protectionIP54 Control handle
