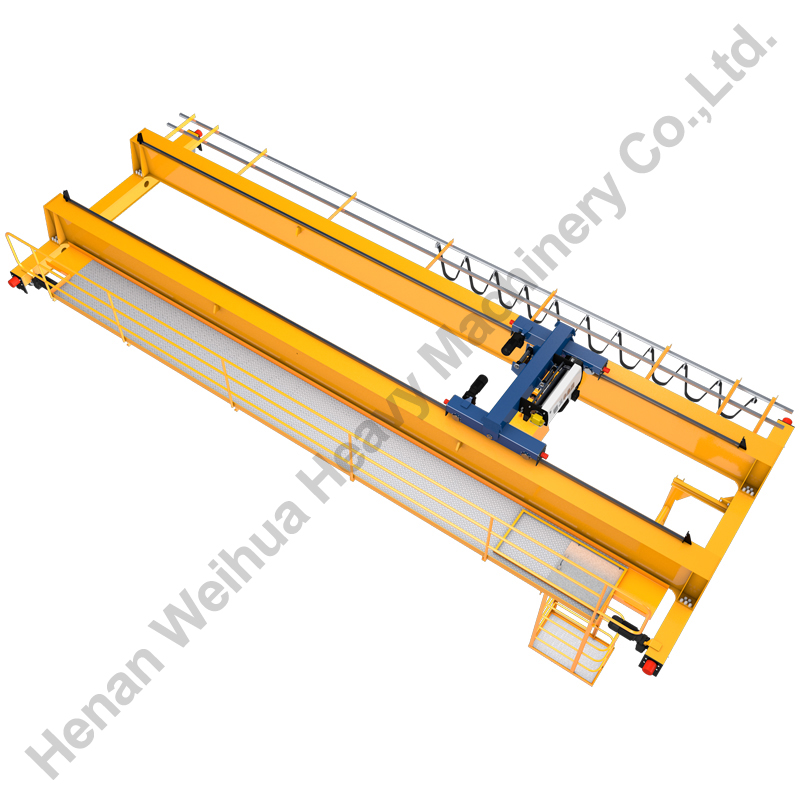

Electric Hoist Double Girder Overhead Crane
This electric hoist double girder overhead crane offers a reduced overall height and lighter self-weight compared to traditional cranes. Its modular design and interchangeable components ensure good quality and fast delivery.
Technical Specifications
Product Overview
European Standard Efficiency
This double girder overhead crane is engineered to European standards, offering a modular design that reduces self-weight by 20-30% and overall height by 20-25%. Its compact structure maximizes the working scope while reducing infrastructure costs for workshops. Featuring variable frequency control and high-quality imported components, this crane provides reliable, energy-efficient performance for heavy-duty industrial lifting.
Performance Metrics
Lifting Capacity
70 tons
Max Capacity
12 m
Max Lifting Height
31.5 m
Max Span
Design Advantages
Design Benefits
- Overall height reduced by 20-25%
- Self-weight reduced by 20-30%
- Max load reduction of 15-20%
- Modular design for easier transport
- Interchangeable components
- Energy consumption reduced by ~30%
Technical Specifications
Crane Specifications
| Capacity (t) | Span (m) | Work Duty |
|---|---|---|
| 5 | 10.5 | A5 |
| 10 | 10.5 | A5 |
Components & Quality
Manufacturing Quality
- Sandblast pretreatment (Sa2.5)
- CNC cutting for accurate webs
- Automatic arc welding
- Ultrasonic and X-ray seam detection
- Floor-type boring lathe for girder flatness
- Key Components
- SiemensSchneiderABBIP54 Protection65mn Alloy Steel
