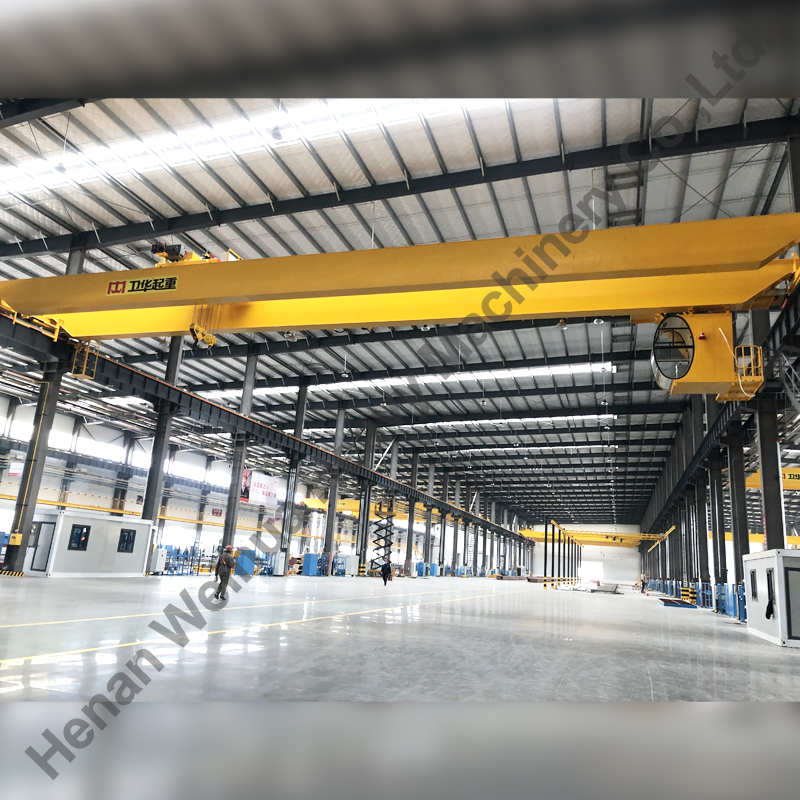

Electric Double Girder Overhead Crane
This electric double girder overhead crane is designed to reduce plant height and weight. The crane increases the working scope with a small limit.
Technical Specifications
Overview
High-Performance Industrial Lifting
The QDxx European-style electric double girder overhead crane is a versatile, intelligent lifting solution engineered to meet stringent FEM and DIN standards. By utilizing advanced modular design and high-performance components, this crane achieves significant weight reduction while maximizing operational stability. It is an ideal choice for manufacturing plants and large-scale industrial facilities requiring precise, automated material handling.
Technical Specifications
Key Operational Metrics
400 tons
Max Lifting Capacity
40 m
Max Lifting Height
34 m
Max Span
- Work Duty Rating
- A5
Performance Improvements
Efficiency Metrics
| Metric | Improvement Range |
|---|---|
| Self-weight Reduction | 10-32% |
| Headroom Reduction | 12-32% |
| Wheel Pressure Reduction | 8-19% |
Design Features
Key Design Characteristics
- Hard-toothed reducer for improved service life
- Compact three-in-one reducer motor drive
- Forged wheel sets with high-precision boring assembly
- Steel-rolled drums for high strength
- High-strength bolted main-end beam connections
- Capabilities
- Modular DesignIntelligent ControlUnmanned Automatic OperationFactory Management Integration
