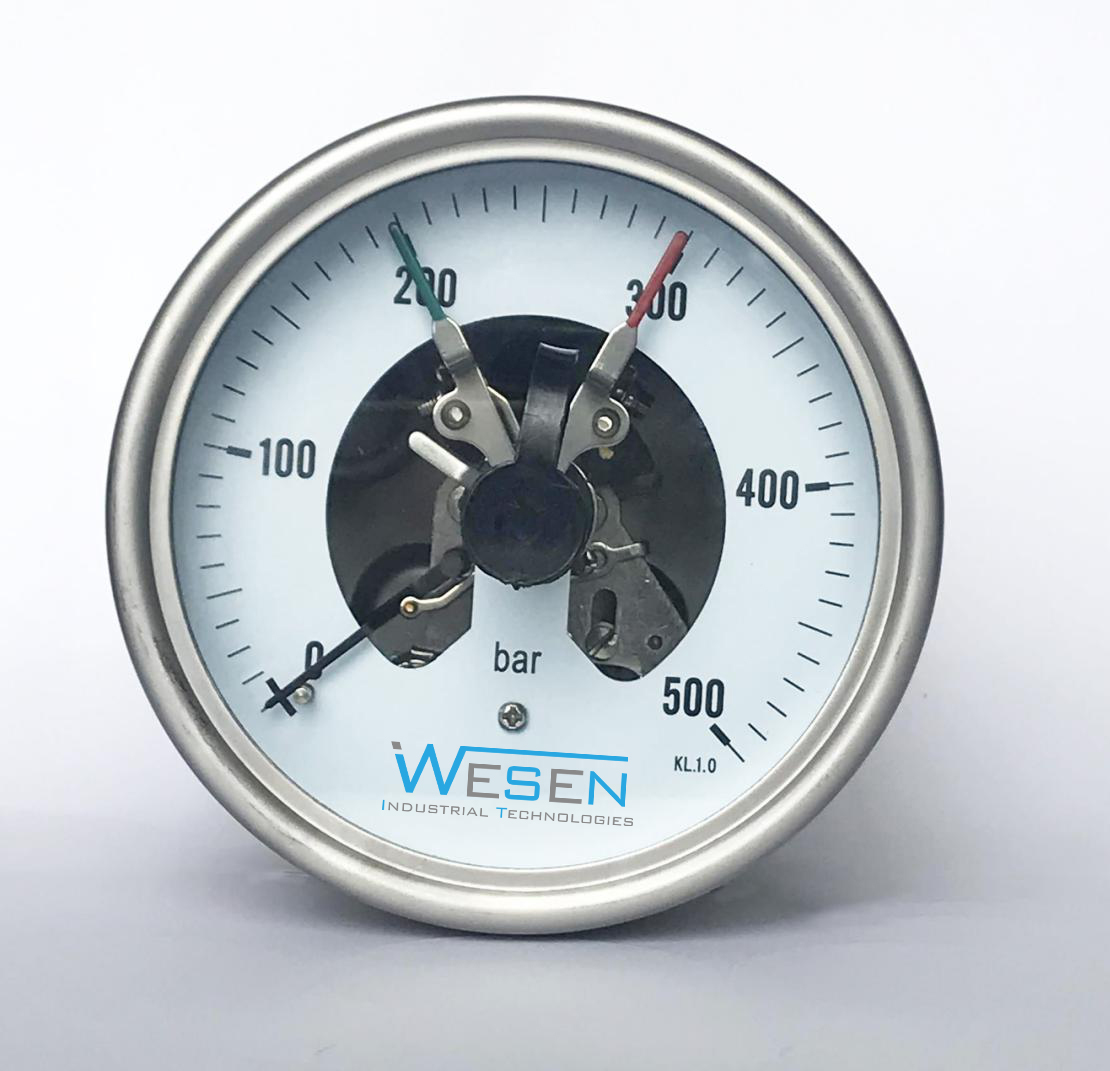

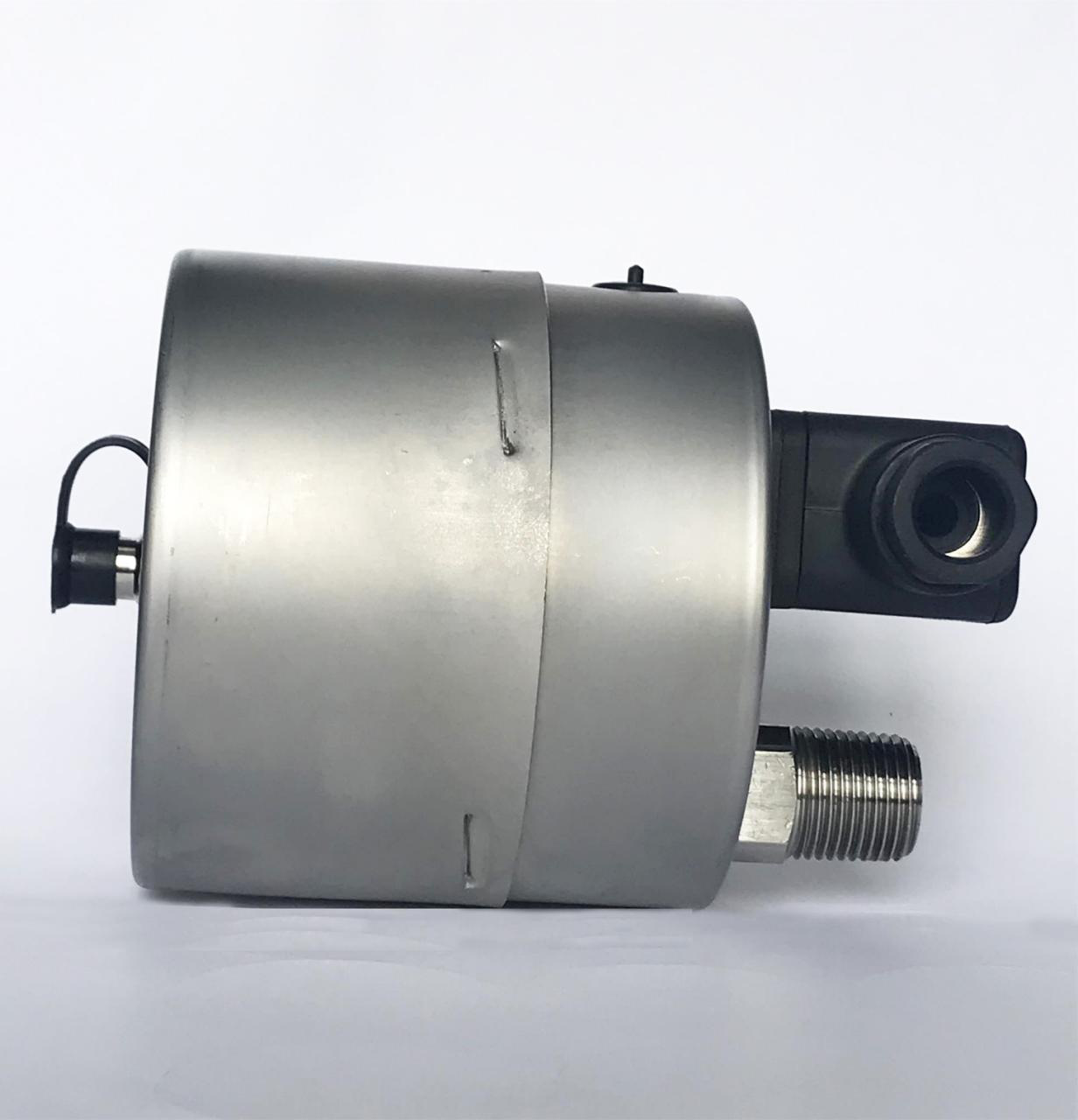

Electric Contact Pressure Gauge for Automation
This electric contact pressure gauge features customizable material and pressure ranges. The dial plate can also be customized for specific applications.
Technical Specifications
Product Overview
Precision Pressure Control
This electric contact pressure gauge is engineered for reliable pressure monitoring and automated control in demanding industrial environments. Featuring a robust stainless steel construction, it offers excellent corrosion resistance and durability for long-term operation. The integrated electrical contact system allows for precise triggering of alarms or external control devices at preset pressure levels, making it an essential component for modern automation systems.
Technical Specifications
Gauge Type
Liquid FilledDry Type
- Available Dial Sizes
- 1.5"2"2.5"3.5"4"5"6"8"10"
- Pressure Range
- -1 to 1000 bar
Construction & Materials
Case Material
- SS304
- SS316
Window Material
- Glass
- Tempered Glass
- Safety Glass
- PC Glass
- Acrylic
- Wetted Parts Material
- SS316SS304
Installation & Mounting
Mounting Position
- Bottom
- Back
- Lower Back
Optional Accessories
- Flange
- Bracket
- Thread Standards
- PTNPTG
Fluid Compatibility
Filling Liquids
- Glycerin
- Silicone Oil
