Dual-Channel DC Energy Meter for EV Charging
The Dual-Channel DC Energy Meter is designed for power measuring and fiscal billing within an EV Charger station. This meter measures DC currents, power, total electricity, voltage, and forward and reverse electric energy.
Technical Specifications
Overview

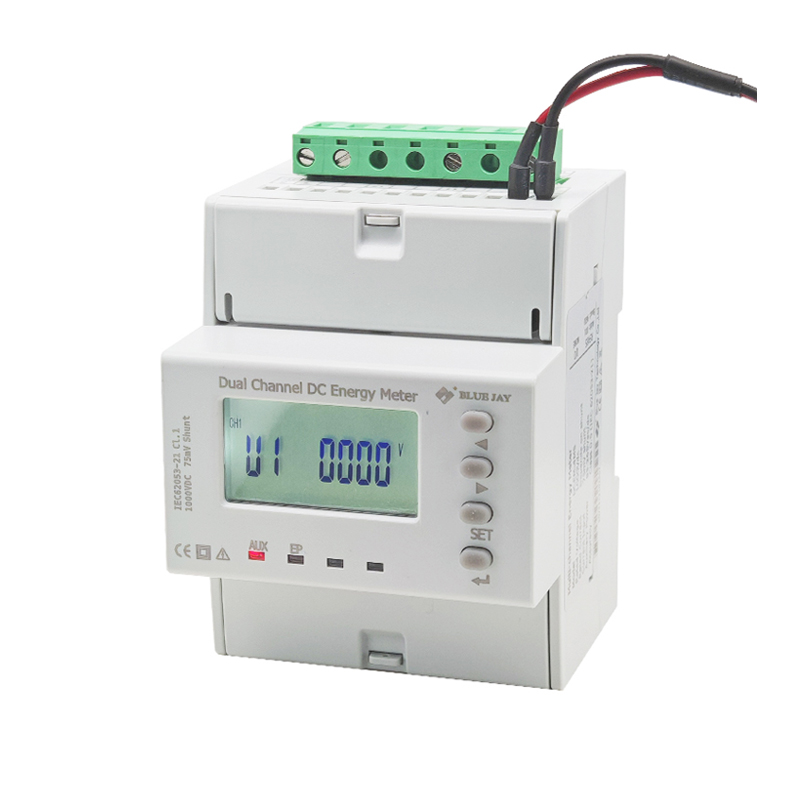

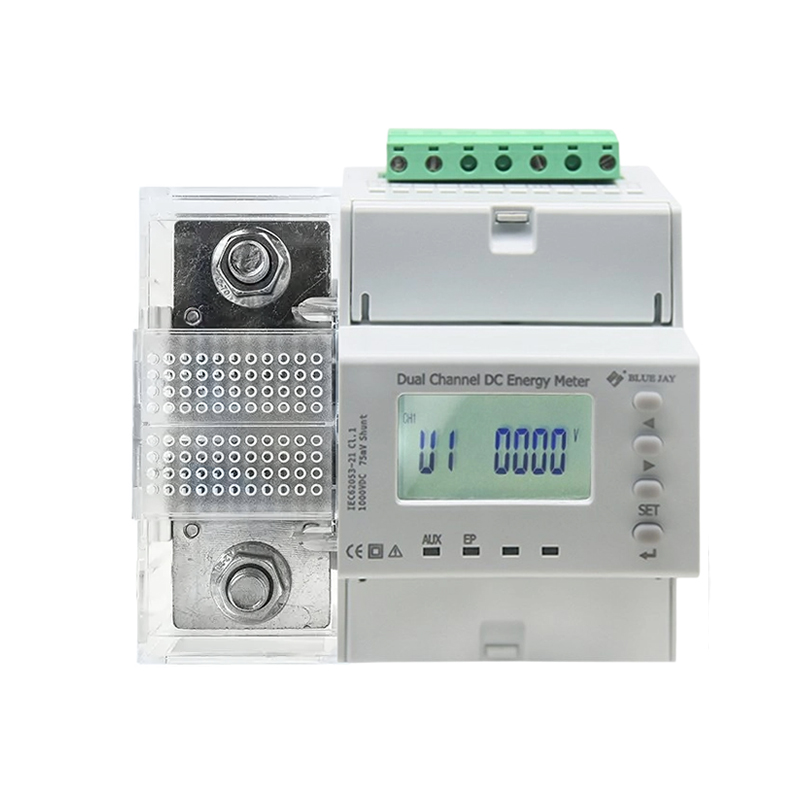

Dual-Channel DC Energy Meter for EV Charging
The DCEM-4MS is a versatile energy metering solution designed specifically for electric vehicle charging infrastructure. It supports both single and dual-channel configurations, allowing for flexible monitoring of DC voltage, current, and power consumption. With its robust Modbus RTU communication protocol and high-precision measurement capabilities, it integrates seamlessly into various EV charging management systems.
Technical Specifications
Protection Rating
IP54 PanelIP20 Shell
- Communication Interface
- RS-485 Modbus RTU
- Current Sensor Compatibility
- 0-75mV DC Shunt5A Hall Effect20A Hall Effect50A Hall Effect100A Hall Effect200A Hall Effect300A Hall Effect400A Hall Effect500A Hall Effect
- Installation
- 35mm DIN Rail
Measurement Capabilities
Measured Parameters
- Voltage (U)
- Current (I)
- Power (P)
- Energy (PE)
- Max/Min Values
- Demand Measurement
- Time Recording
- Standards Compliance
- IEC61000-4-2-IIIIEC61000-4-4-IVIEC61000-4-5-IVIEC62053-21 Class 1IEC62053-22 Class 1
Compatibility
Supported Charging Capacities (kWh)
- 7
- 11
- 30
- 50
- 60
- 90
- 120
- 150
- 180
- 240
- 350
- 360
- 480
