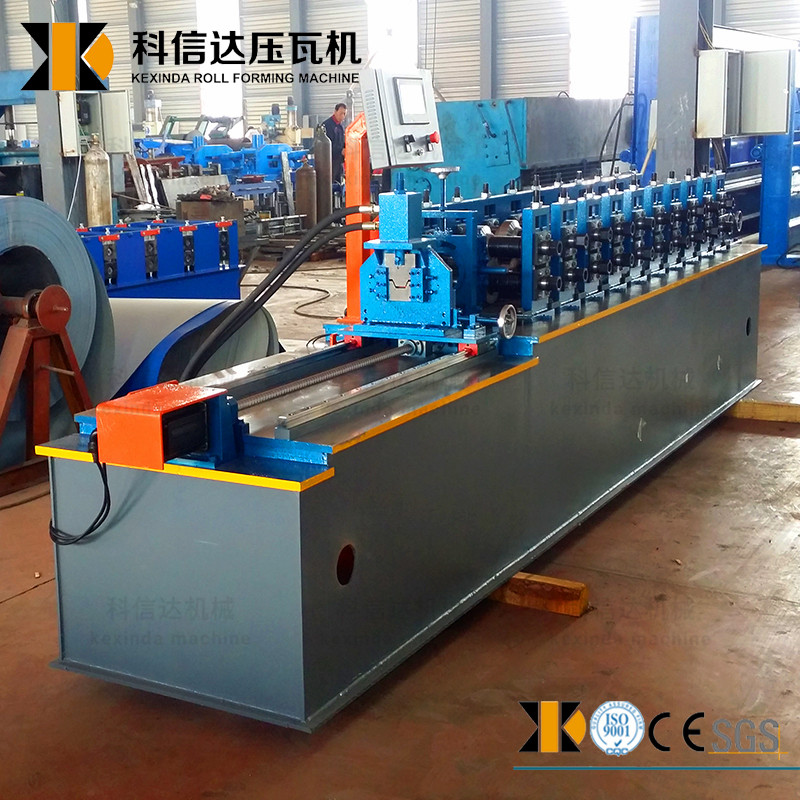

Drywall Stud and Track Roll Forming Machine

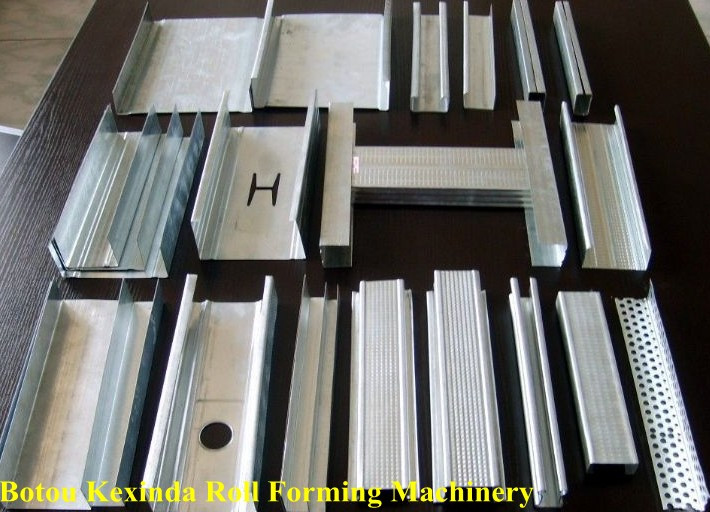

This roll forming machine produces light steel profiles used for drywall construction. It shapes galvanized sheets into studs, tracks, and T-bars with consistent quality.
Technical Specifications
Overview
High-Efficiency Roll Forming Solution
This industrial roll forming machine is engineered for the high-volume production of drywall galvanized sheets, light steel profiles, metal T-bars, studs, and tracks. Featuring a robust frame construction and precision-engineered rollers, it ensures consistent dimensional accuracy and structural integrity for construction components. The system includes an integrated control panel for precise parameter adjustments, making it a reliable solution for demanding industrial framing applications.
System Components
- Included Configurations
- Manual UncoilerGuiding PlatformCoil Strip LevelerMain Roll Forming MachineElectro-MotorCutting DeviceHydraulic StationPLC ControlSupporter Table
Technical Specifications
Performance Metrics
3 kW
Main Power
80 mm
Roller Diameter
Operating Parameters
| Parameter | Value |
|---|---|
| Main Frame | 250mm H-Beam |
| Forming Speed | 15-25 m/min |
| Hydraulic Pressure | 10-12 MPa |
Electrical Requirements
- Power Supply
- 380V, 3-Phase, 50Hz
