Doypack Pouch Wrap-Around Case Packer

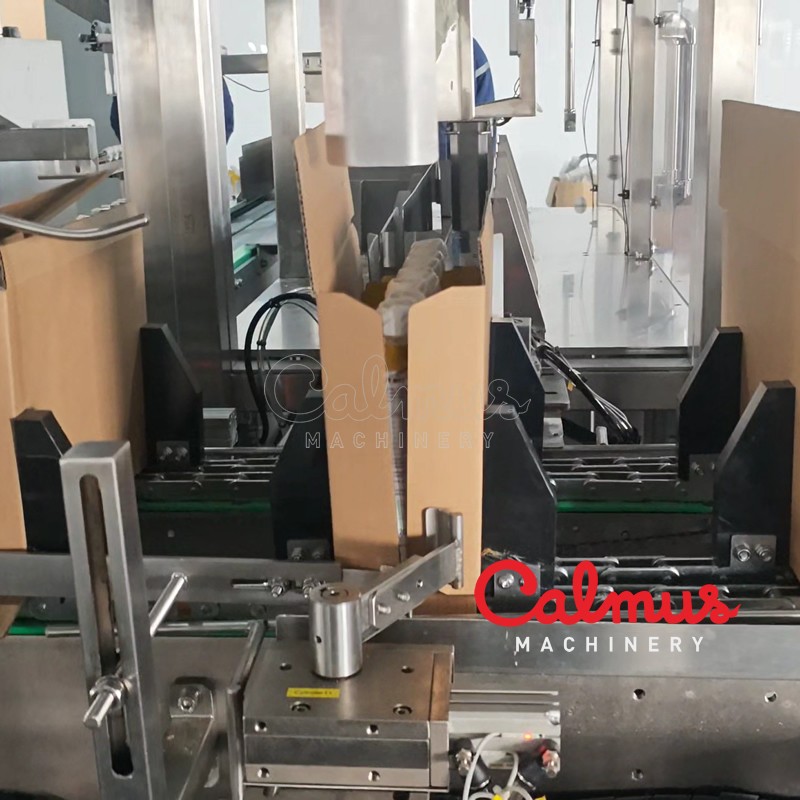

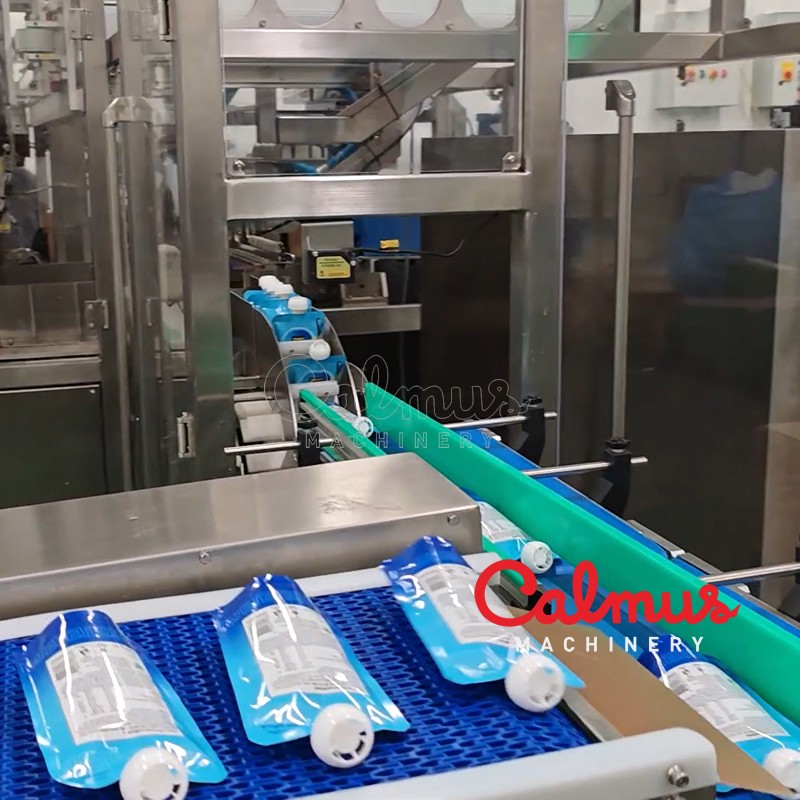

This wrap-around case packer is designed for sorting and packaging stand-up pouches into carton boxes. The cartoning machine efficiently erects, loads, and seals cardboard cases around pre-filled doypack pouches.
Technical Specifications
Overview
High-Efficiency Wrap-Around Case Packer
This monoblock cartoning machine integrates case forming, pouch loading, and case sealing into one seamless, compact unit. Designed specifically for doypacks and stand-up pouches, it employs a sophisticated sorting system to organize and pack pouches with high precision. By automating the entire packaging workflow, this system helps businesses significantly enhance productivity while reducing operational labor costs.
Technical Specifications
Sorting Capacity
140 pouches/min
Min Sorting
160 pouches/min
Max Sorting
- Case Packing Capacity
- 11 cases/min
- Power Consumption
- 8 kW
- Compressed Air Requirement
- 6-8 bar
Product Compatibility
- Maximum Pouch Size
- Up to 1 liter or 1 kilogram
Functional Features
Key Machine Components
- Buffering belt conveyor
- Acceleration belt conveyor
- Dual servo sorter
- Servo side pusher
- Hot melt adhesive sealer
- Integrated Functions
- Pouch SortingCase FormingPouch LoadingCase Sealing
