Doypack Pouch Carton Packaging Machine

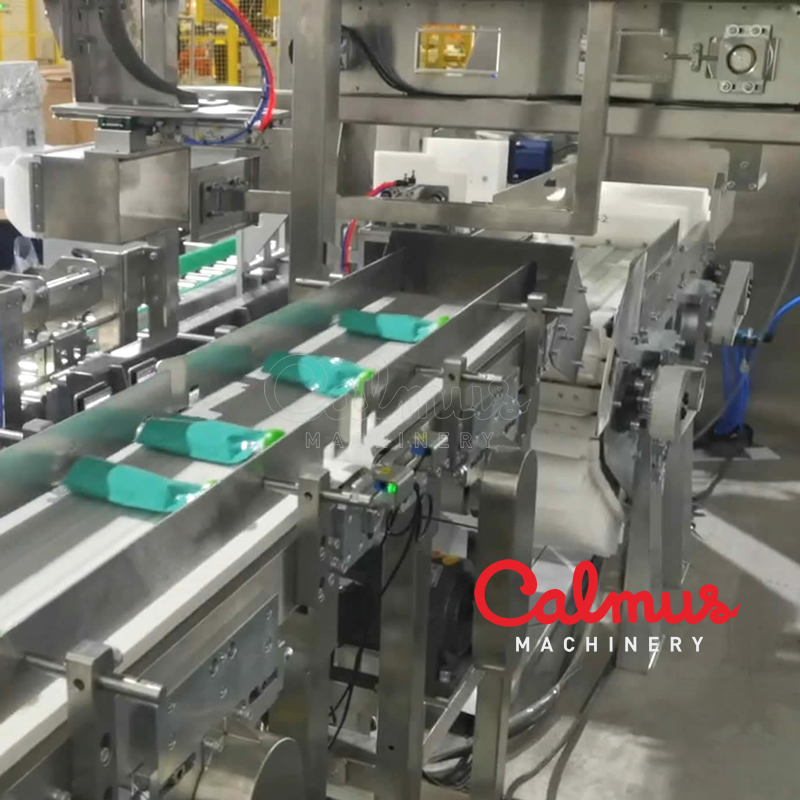

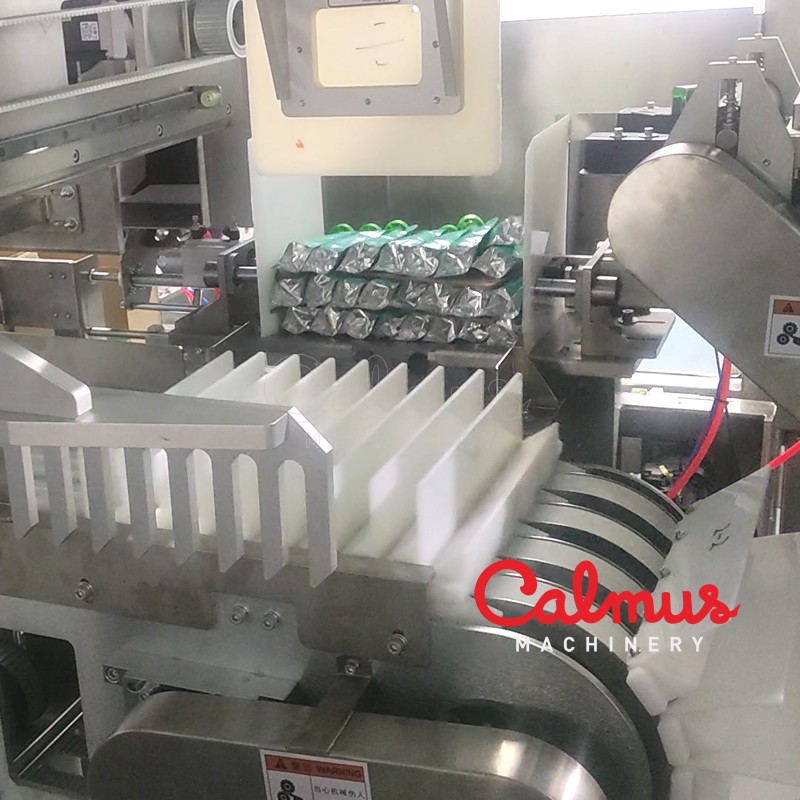

This carton packaging machine sorts and packages doypack pouches into carton boxes. The case packer integrates carton forming, pouch loading, and carton sealing into one compact unit.
Technical Specifications
Overview
Automated Case Packing Solution
This automated carton packaging machine is a high-efficiency 3-in-1 monoblock solution designed for sorting and packing doypack pouches into carton boxes. It seamlessly integrates case forming, pouch loading, and sealing into a single compact unit to optimize production workflows. Engineered for precision, it handles pouches up to 1 liter or 1 kilogram while maintaining high throughput.
Performance & Capacity
Throughput Capabilities
160 pouches/min
Sorting Capacity
15 cases/min
Case Packing Speed
Packing Configuration
| Parameter | Specification |
|---|---|
| Max Product Capacity | 1 Liter / 1 Kilogram |
| Packing Pattern | 12 pouches/row, 1 row/case |
Technical Requirements
Utility Requirements
- Power Consumption: 8 kW
- Compressed Air: 6-8 bar
- Construction & Design
- Stainless Steel ConstructionMonoblock DesignAdjustable Conveyor BeltsEmergency Stop MechanismsProtective Guarding
