Technical Specifications
Overview

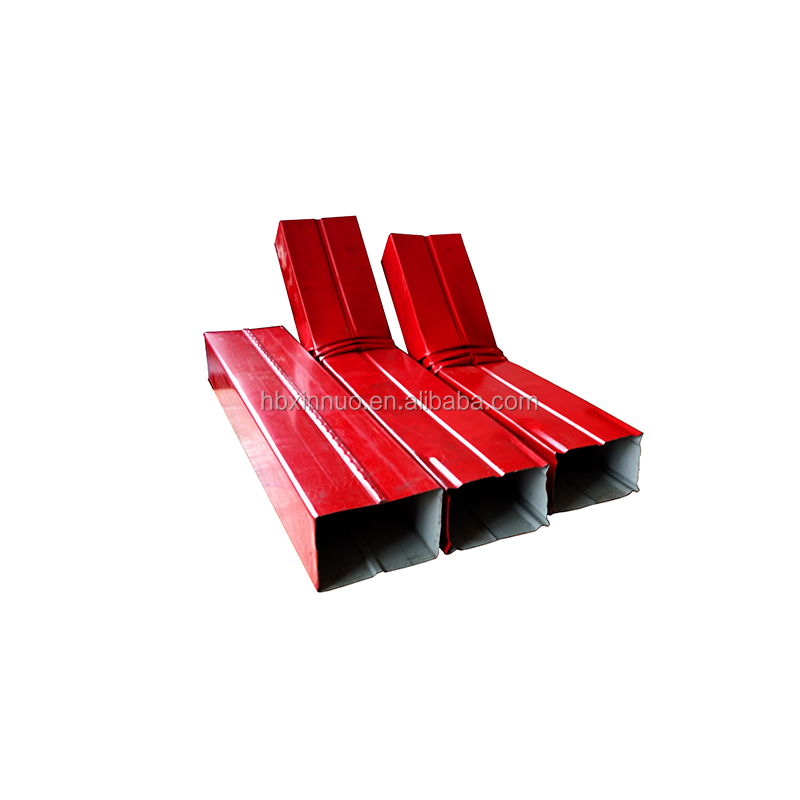

High-Efficiency Downpipe Production

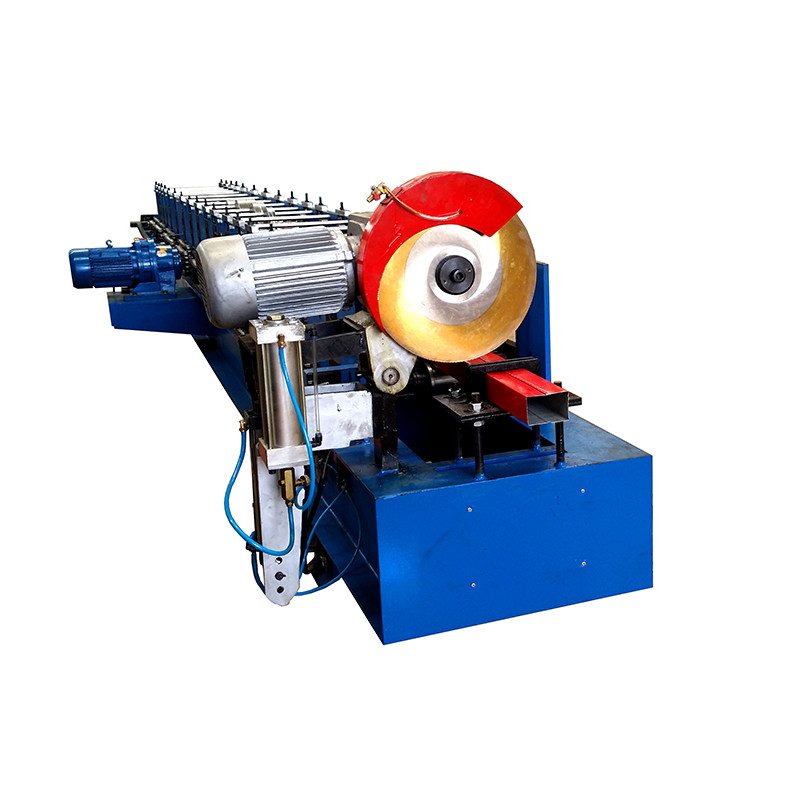

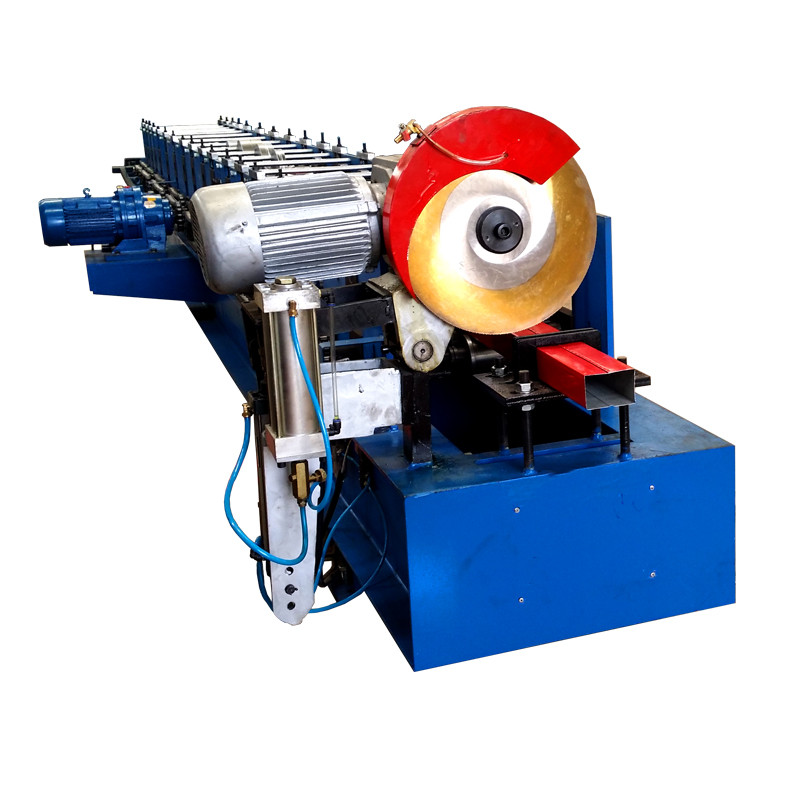

This roll forming machine is engineered for the continuous production of downpipes from stainless steel and iron sheets. It features a robust construction with a series of precision rollers and a flying saw cutting system to ensure consistent quality and dimensional accuracy. Designed for high-volume B2B manufacturing, it offers both automated and manual operation modes to suit various industrial requirements.
Technical Performance
Performance Highlights
12 m/min
Production Speed
16 Mpa
Max Pressure
5 T
Loading Capacity
Material Specifications
- Compatible Materials
- Color Steel PlateStainless SteelIron Sheet
- Material Thickness Range
- 0.3 - 1.0 mm
- Plate Feeding Width
- 200 - 600 mm
Forming System

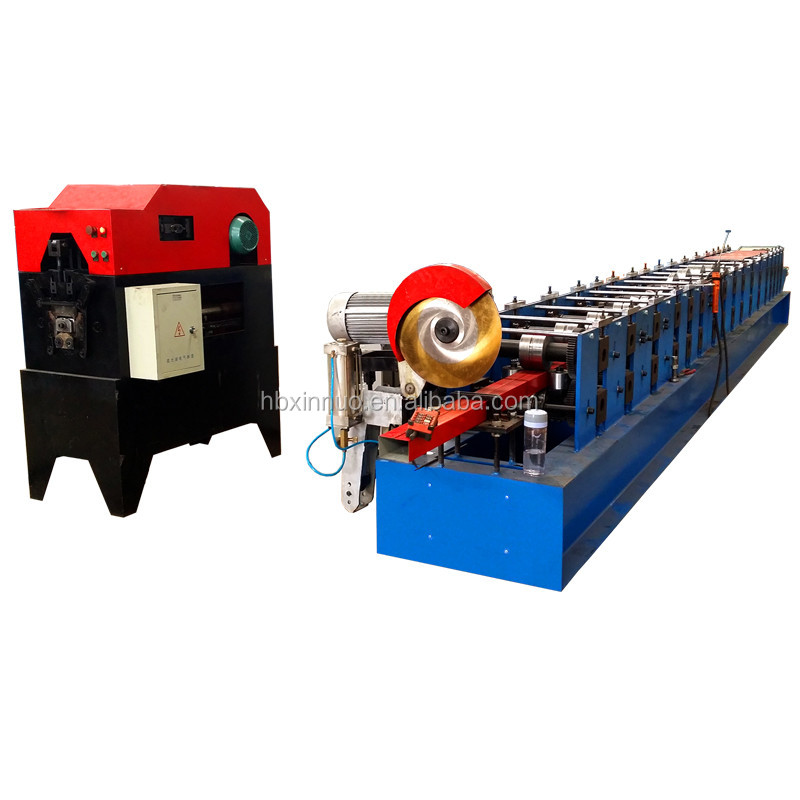

Roller Configuration
- 12 to 16 rows of rollers
- Material: High grade No.45 forged steel

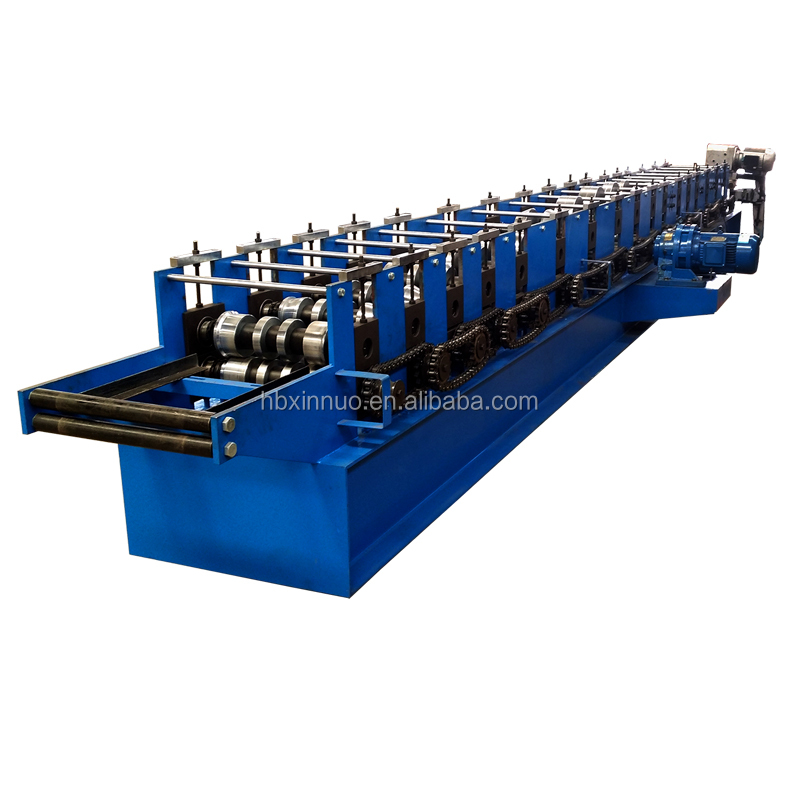

- Chain-driven system for precise handling

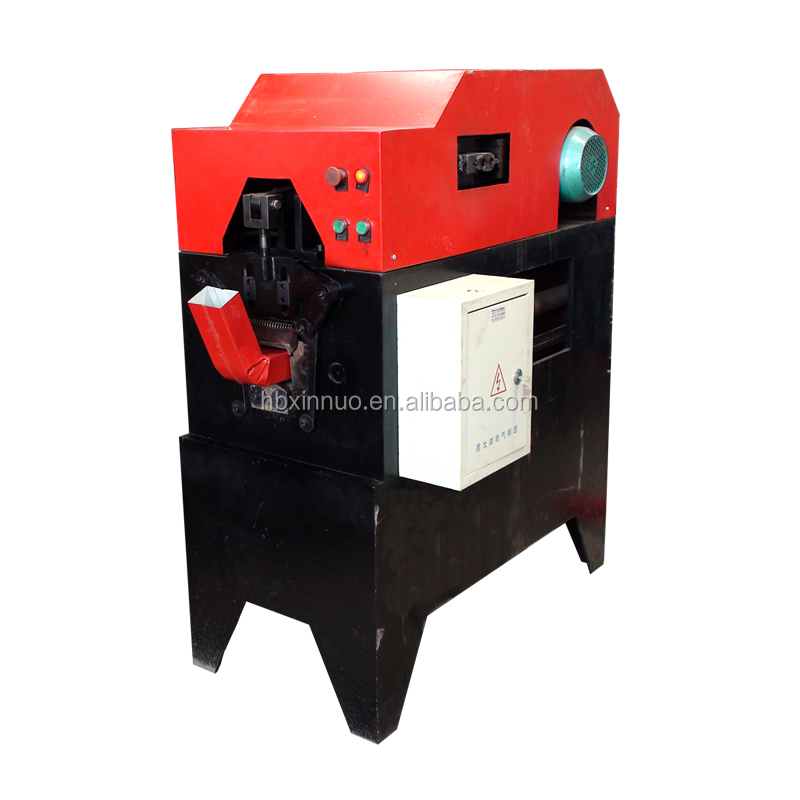

Cutting & Hydraulics
Cutting Mechanism
| Feature | Specification |
|---|---|
| Type | Flying Saws Cutting |
| Blade Material | Cr12Mov with quenched treatment |
| Drive Type | Hydraulic |
| Hydraulic Power | 4 kW |
Control System
Control Capabilities
- PLC Computer Control System
- Programmable length and quantity settings
- Automatic and Manual operation modes
- Multi-language support: English, Chinese, Spanish, Russian
Physical Dimensions
- Machine Dimensions
- 8.6 x 0.8 x 1.2 m
- Total Power Consumption
- 4kW (Hydraulic) + 3kW (Forming)
Uncoiler Specifications
Manual Uncoiler Specs
- Inner Diameter: 500-508 mm
- Max Outer Diameter: 1250 mm
- Steel Coil Width: 1300 mm
- Working Speed: 0-15m/min adjustable
