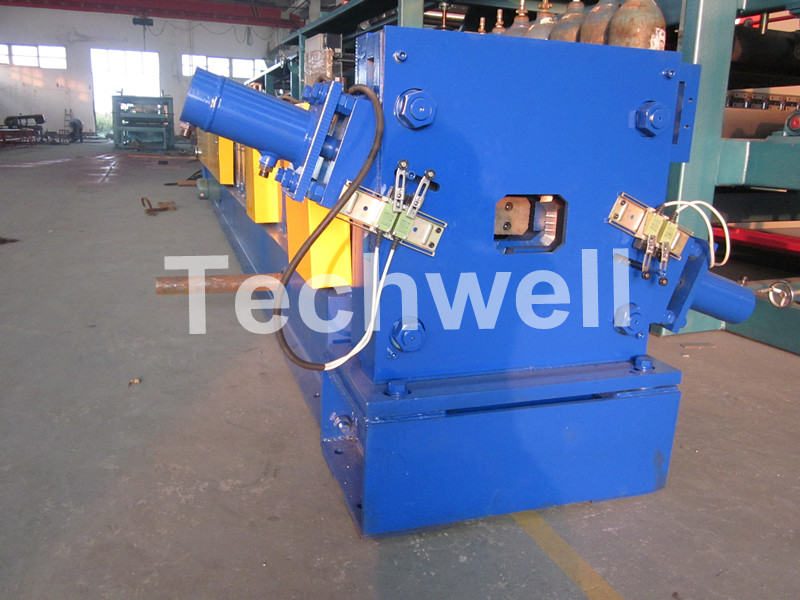

Downpipe Roll Forming Machine
This roll forming machine is designed for manufacturing downpipes, downspouts, and rainspouts. It utilizes a series of rollers to progressively shape metal sheets into the desired tubular profile.
Technical Specifications
Product Overview
Professional Downpipe Production Solution
This high-efficiency roll forming system is engineered for the automated manufacturing of downpipes, rainspouts, and drainpipes. The complete line integrates decoiling, precision roll forming, and automated cutting to ensure consistent output for industrial engineering projects. Designed for durability and high-volume production, it features advanced PLC control systems and robust components to minimize material waste and maximize throughput.
Main Machine Specifications
- Suitable Material Thickness
- 0.82 mm
- Main Motor Power
- 3 Kw
- Hydraulic Power
- 7.5 KW
- Forming Speed
- 10 m/min
- Number of Roll Stands
- 20
- Machine Dimensions
- 16000mm x 1100mm x 1200mm
Technical Components
Control System
PLC ControlMitsubishi PLC
- Cutting Die Material
- Cr12 mold steel with quench treatment
Curving Pipe Module
- Suitable Material Thickness
- 0.5 mm
- Total Motor Power
- 10 kw
- Number of Roll Stands
- 25
Production Workflow
Standard Process Flow
- Decoiling
- Coil sheet guiding and feeding
- Roll forming
- Cut to length
- Product packaging
