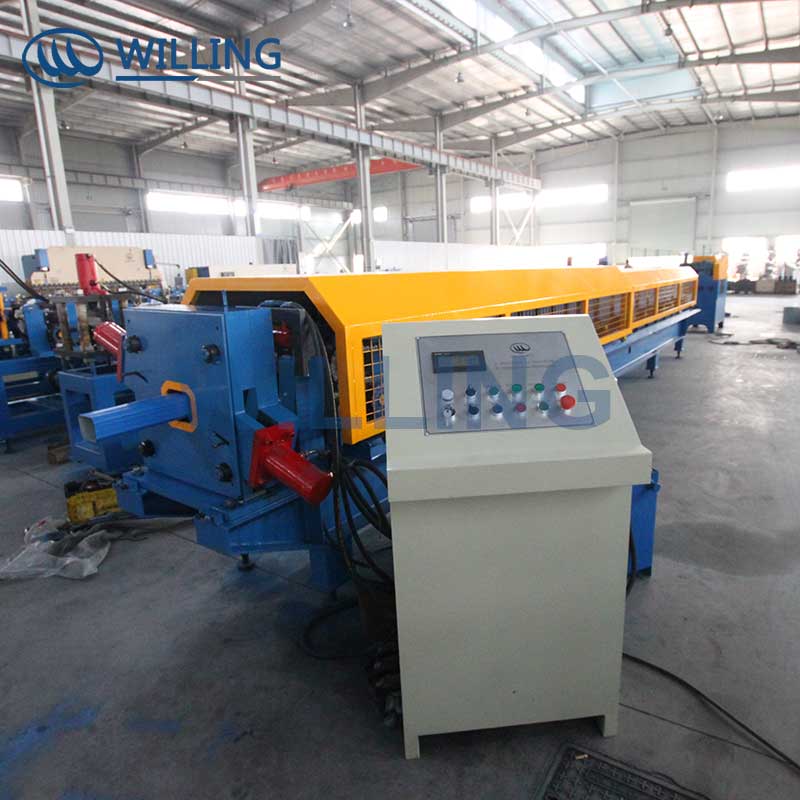

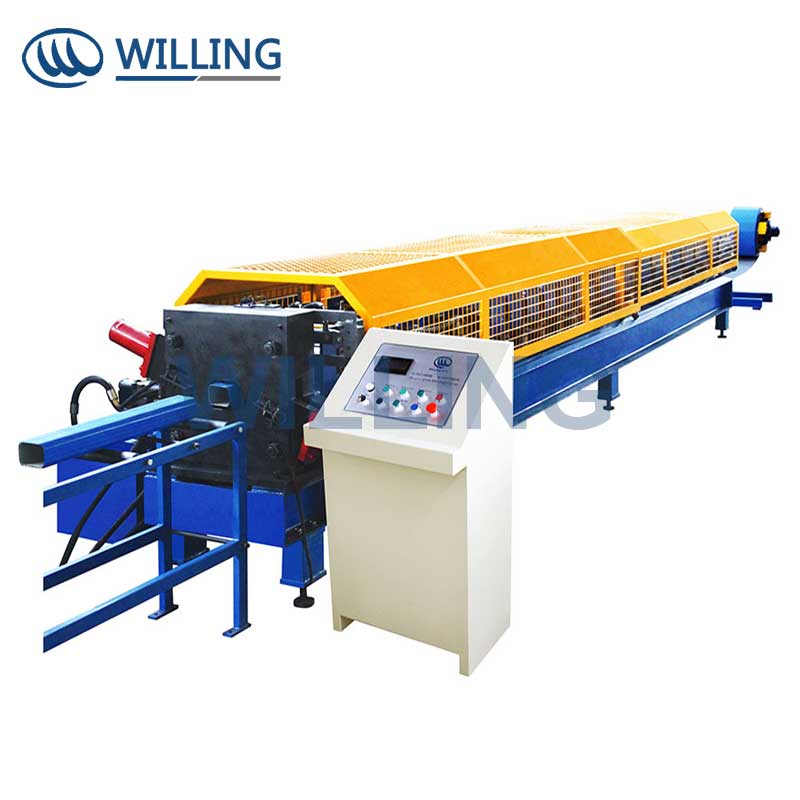

Downpipe Forming Machine
This downpipe forming machine is designed for efficient and precise production. It features a robust steel frame and user-friendly control panel, ensuring accurate shaping and sizing of downpipes.
Technical Specifications
Product Overview
High-Efficiency Downpipe Production
The WLDP series downpipe roll forming machine is engineered for the automated, cold-rolled production of color-coated steel downpipes. Designed for industrial and civil applications, it ensures leak-free, high-integrity finished products with precise interlocking. The system integrates seamlessly with bending and end-narrowing equipment, offering a comprehensive solution for workshop, warehouse, and hangar construction projects.
Technical Specifications
Material Specifications
| Parameter | Value |
|---|---|
| Material Type | Color steel sheet |
| Thickness | 0.4-0.6 mm |
| Yield Stress | 230-300 Mpa |
Performance Metrics
12 m/min
Max Forming Speed
10.5 KW
Total Power
4,000 Kg
Total Weight
Machine Components
- 45# steel rollers with chrome finish
- Chain transmission drive system
- PLC controller
- Touch screen and button interface
Operational Details
Working Process
- Uncoiling
- Sheet Guiding
- End Cutting
- Roll Forming
- Measuring Length & Shearing
- Sheet to Support Table
Hydraulic System
12 Mpa
System Pressure
7.5 KW
Station Motor Power
Machine Type
SquareClosed TypeAutomatic
