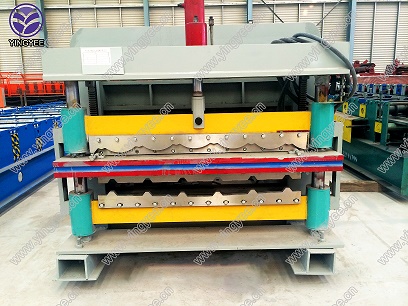

Double Profile Roof Tile Roll Forming Machine
This double profile roof tile roll forming machine efficiently produces roof tiles with two distinct profiles. The machine is designed for high-volume production, utilizing a robust steel frame, precision rollers, and an automated cutting system to ensure consistent output.
Technical Specifications
Overview
Dual-Profile Efficiency
This double-layer roof tile roll forming machine is engineered for high-volume, precise production of two distinct roof tile profiles simultaneously. Featuring a robust steel frame and automatic PLC control, it offers exceptional consistency and flexibility for diverse roofing applications. The system supports various metal materials, including PPGI, GI, and aluminum, making it a versatile solution for modern manufacturing needs.
Technical Specifications
Forming Speed
8 m/min
Standard Speed
15 m/min
Maximum Speed
- Compatible Materials
- PPGIGIAluminium
- Material Thickness
- 0.2-0.8 mm
- Roll Stations
- 13
- Power
- 5.5 kw
- Shaft Material
- 45# Steel
- Shaft Diameter
- 75 mm
- Tolerance
- 10m ±1.5mm
- Total Weight
- 7 T
System Components
Standard Components
- Manual Coiler (2 sets)
- Adjustable Input Equipment (2 sets)
- Main Roll Forming Machine with Chromed Plate (2 sets)
- Hydraulic Cutting System (2 sets)
- Hydraulic Station (1 set)
- PLC Control System (1 set)
- Drive Mechanism
- Chain Driven
