Double Layer Roofing Sheet Roll Forming Machine
This double layer roofing sheet roll forming machine is a versatile solution for producing roofing sheets. It features a dual-layer forming system, allowing for the simultaneous creation of two distinct sheet profiles.
Technical Specifications
Overview
Double Layer Roofing Sheet Solution

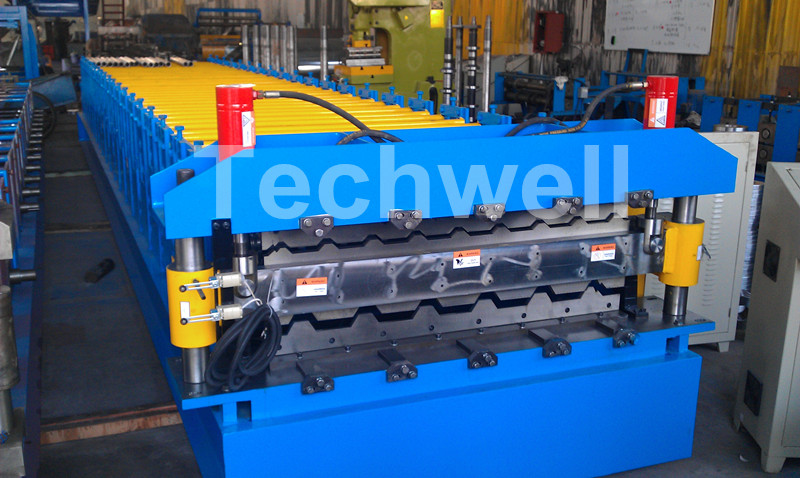

The TW-1020 Double Layer Roll Forming Machine is engineered for high-efficiency production of roofing sheets with dual-layer capabilities. By allowing the simultaneous creation of two distinct sheet profiles, this machine optimizes material usage and significantly boosts production throughput. Its robust, welded structural steel frame and advanced PLC control system ensure consistent precision, durability, and ease of operation for industrial roofing manufacturers.
Performance Metrics
Working Speed
20 m/min
Max Speed
Power Requirements
- Main Motor: 7.5 Kw
- Hydraulic Motor: 2.2 Kw
- Voltage: 380V, 3 Phase, 50Hz
Technical Specifications
Material Specifications
| Parameter | Value |
|---|---|
| Raw Material Width | 1000 mm |
| Material Thickness | 0.3 - 0.8 mm |
| Covered Width | 686 mm / 762 mm |
Mechanical Construction
- Roll Stands: 18 Upper / 18 Lower
- Frame Material: 16mm Welded Structural Steel
- Axis Diameter: 70mm
- Transmission: Chain Transmission
- Key Component Materials
- 45# Forge Steel Rollers0.05mm Chrome CoatingCr12 Cutting BladeQuenched Chain HRC 45-50
Operational Features
- Control & Automation
- PLC Frequency Control System with touch screen interface
- Decoiler Capacity
- 10 Ton
- Production Workflow
- Hydraulic Decoiler → Feeding Guide → Roll Forming → Cut-to-length → Run out table
