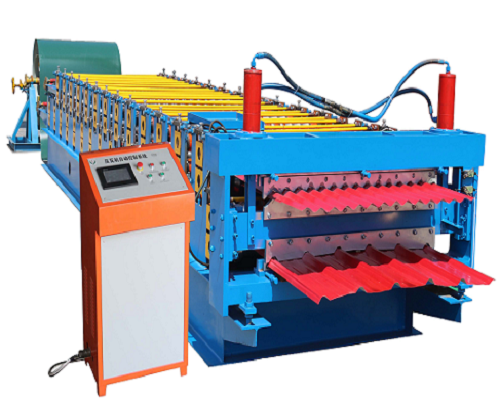

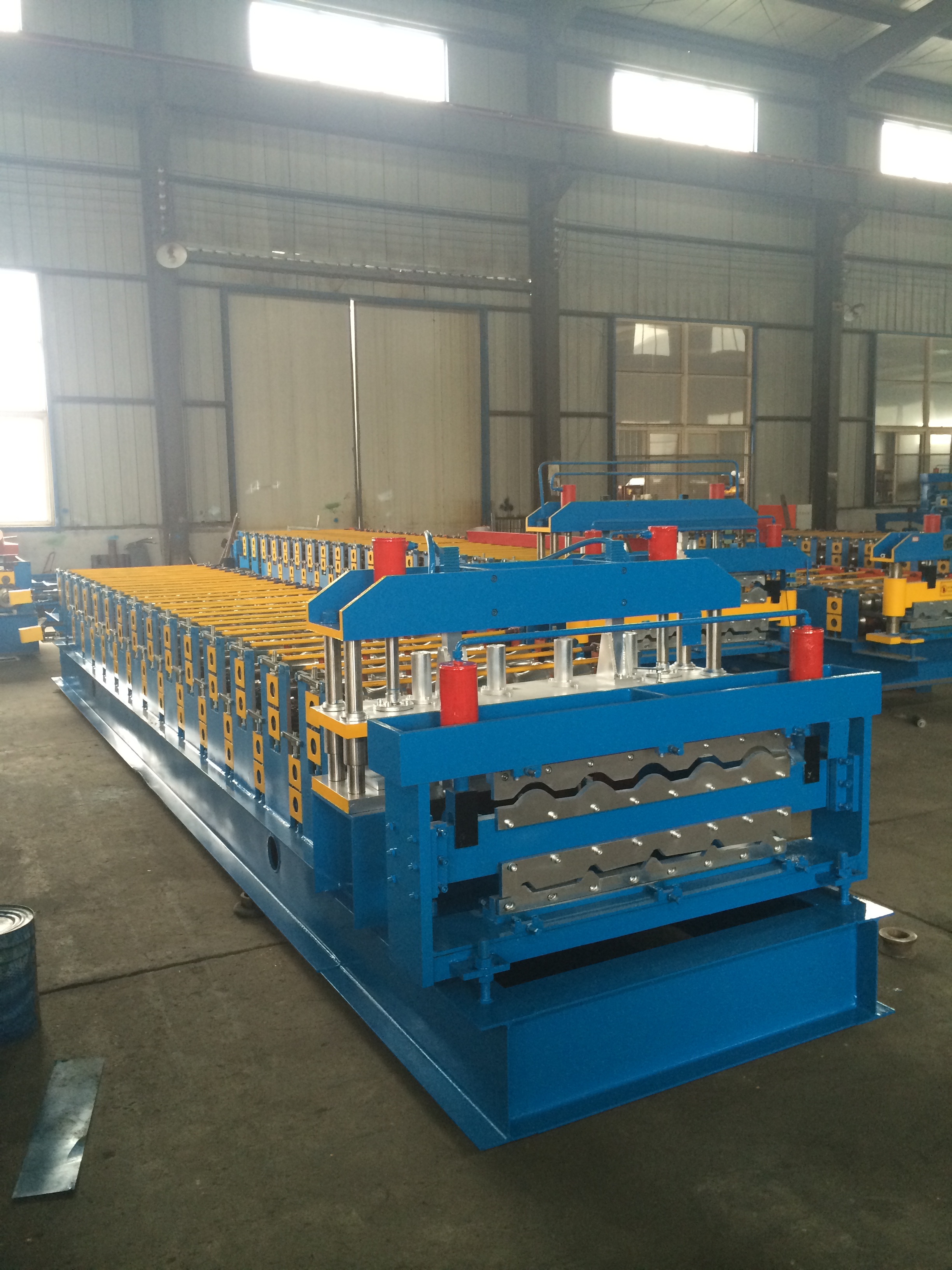

Double Layer Roofing Sheet Forming Machine
The double layer roofing sheet forming machine produces two different roof sheet profiles simultaneously. This machine saves space and money compared to using two single layer machines, with only one electric control desk and hydraulic station.
Technical Specifications
Overview
Efficient Dual-Profile Production

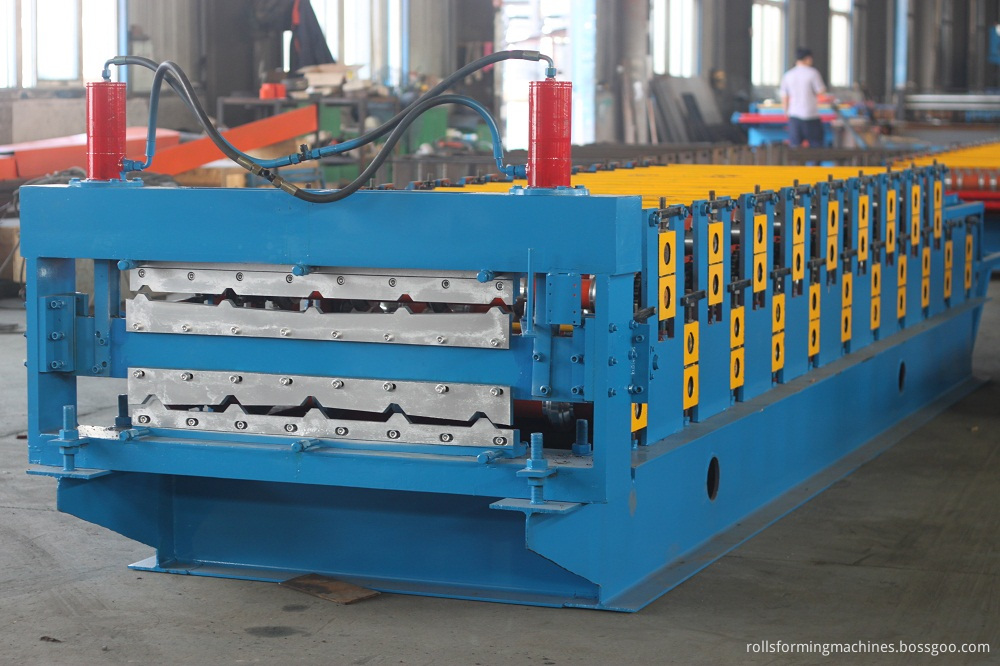

The Double Layer Roofing Sheet Forming Machine is an innovative solution featuring two independent production lines integrated into a single space-saving frame. This design allows for the manufacturing of two different roofing profiles using one electric control desk and one hydraulic station, significantly reducing equipment costs and maintenance requirements. It is an ideal choice for high-volume production of roofing sheets for industrial, commercial, and residential applications.
Technical Capabilities
Material Specifications
| Parameter | Range/Value |
|---|---|
| Material Thickness | 0.3 mm - 0.8 mm |
| Standard Widths | 914mm, 1000mm, 1200mm, 1220mm, 1250mm |
| Compatible Materials | Galvanized steel, pre-painted steel, aluminum |
Available Profile Combinations
- Trapezoidal + Trapezoidal
- Corrugated + Trapezoidal
- Glazed + Trapezoidal
Key Features
Operational Advantages
Space SavingCost EffectiveLow NoisePLC ControlledEasy Maintenance

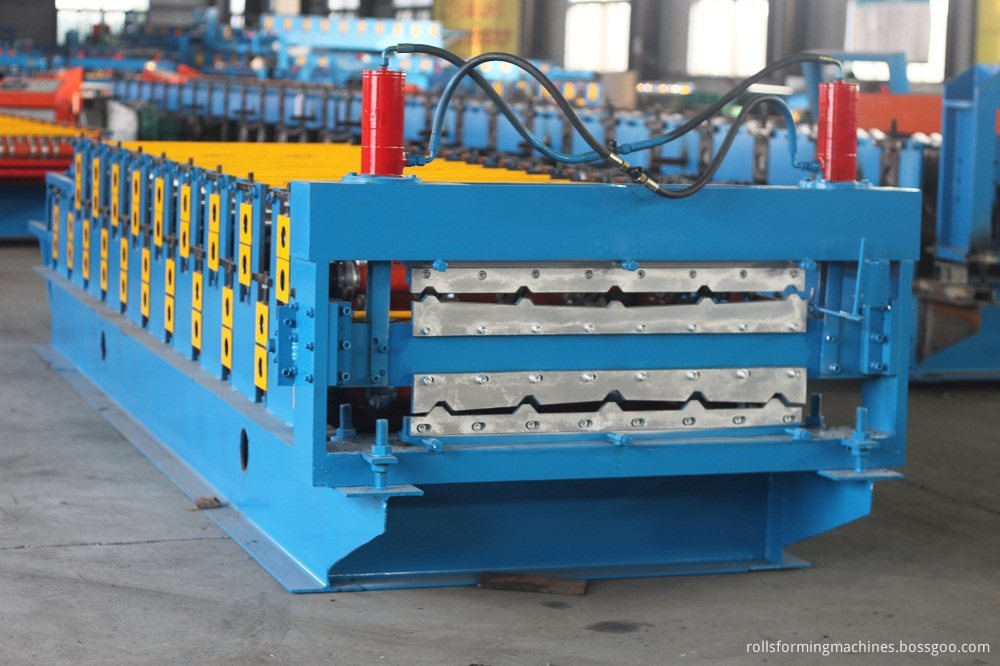

System Components
- Major Components
- DecoilerFeeding GuideLeveling SystemRoll Forming UnitHydraulic Cutting SystemPLC Control DeskRun-out Table
- Automation Level
- Fully automated via Programmable Logic Controller (PLC) for precise length and batch control.
Applications
Typical Applications
- Industrial and civil building roofs
- Warehouse wall cladding
- Large span steel structure houses
- Interior and exterior decoration
