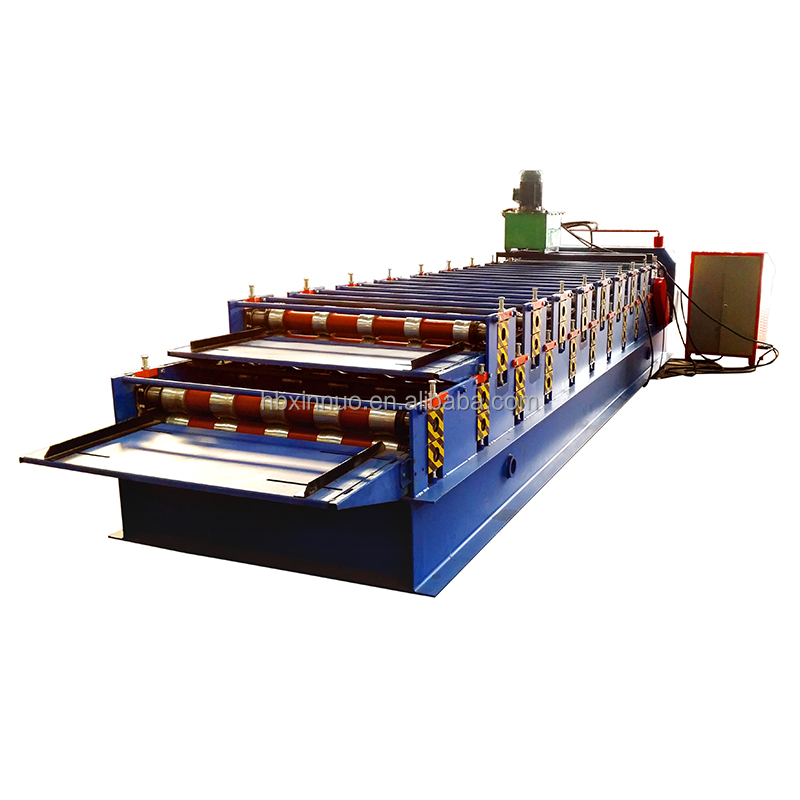

Double Layer Roof Tile Roll Forming Machine
This double layer roof tile roll forming machine produces roof tiles with two different profiles simultaneously. It shapes metal sheets into durable roof tiles with consistent quality.
Technical Specifications
Overview
Versatile Double-Layer Production
This double-layer roof tile roll forming machine is engineered for high-efficiency production, capable of manufacturing two different profiles within a single production line. Built with a robust H-steel frame and precision-engineered rollers, it offers a stable and durable solution for large-scale manufacturing. The integrated PLC automated control system ensures consistent quality and precise shaping for various metal materials including galvanized steel and aluminum.
Technical Capabilities
- Compatible Materials
- Color steel plateGalvanized sheetAluminum coilsPre-painted steel
- Feeding Material Width
- 1250 mm
- Material Thickness Range
- 0.3 - 0.8mm
Performance Metrics
Performance Highlights
12 m/min
Max Productivity
1 ±mm
Cutting Tolerance
18 Rows
Roller Stations
Construction Details
Build Specifications
| Component | Material/Specification |
|---|---|
| Main Frame Body | H-Steel Construction |
| Roller Material | 45# Steel |
| Control System | PLC (Programmable Logic Controller) |
| Cutting System | Hydraulic Cutting |
Operation & Control
Control System Features

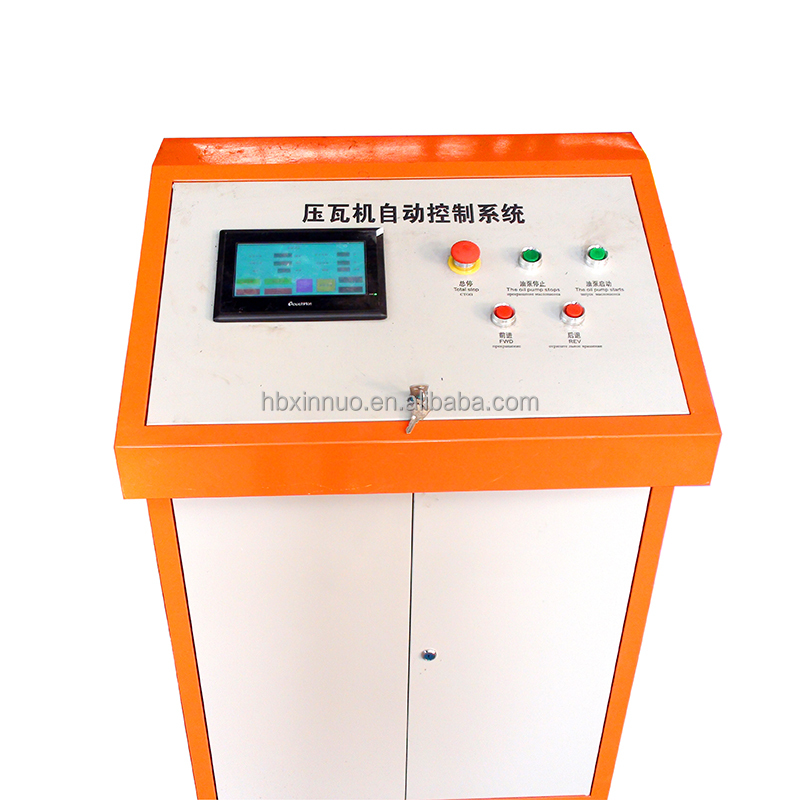

- Automated PLC operation
- Emergency stop safety button
- Forward and reverse manual controls
- Pump start/stop interface
- Digital display screen for parameter adjustment
System Components
Standard Modules
- Decoiler unit
- Feeding mechanism

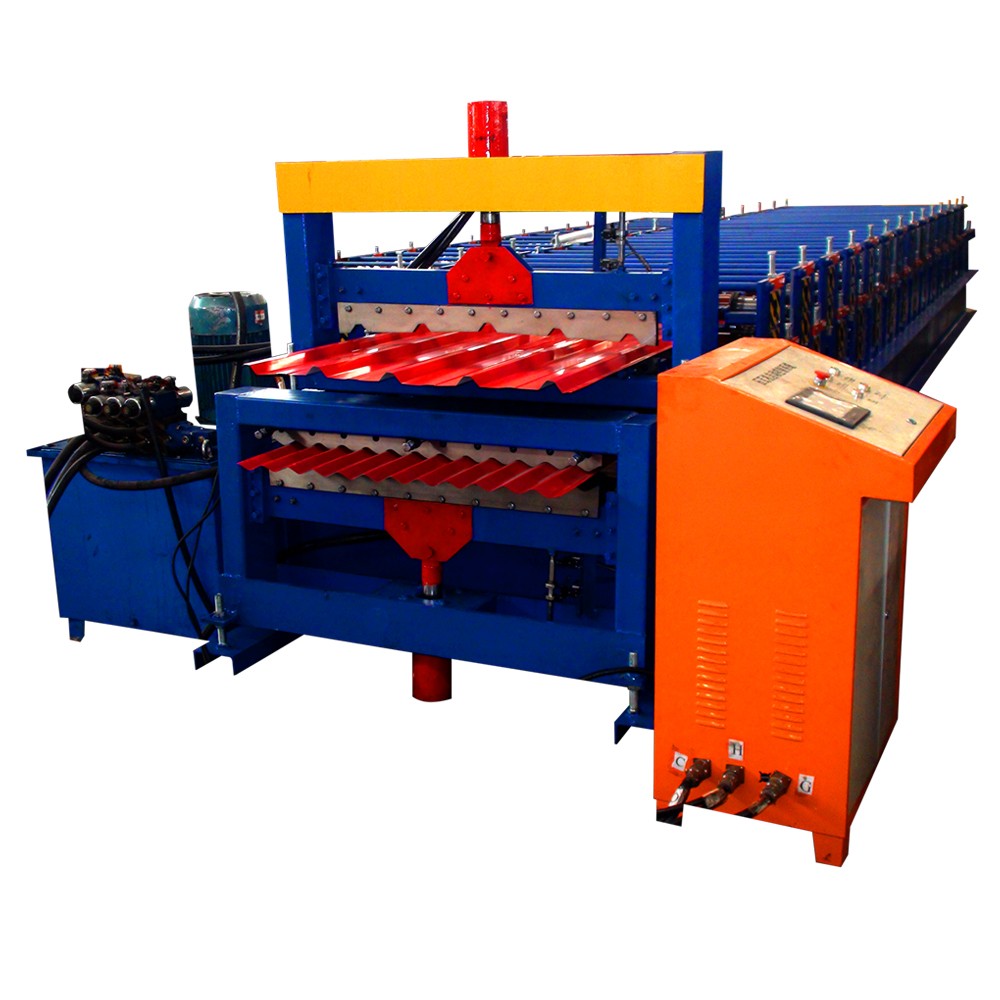

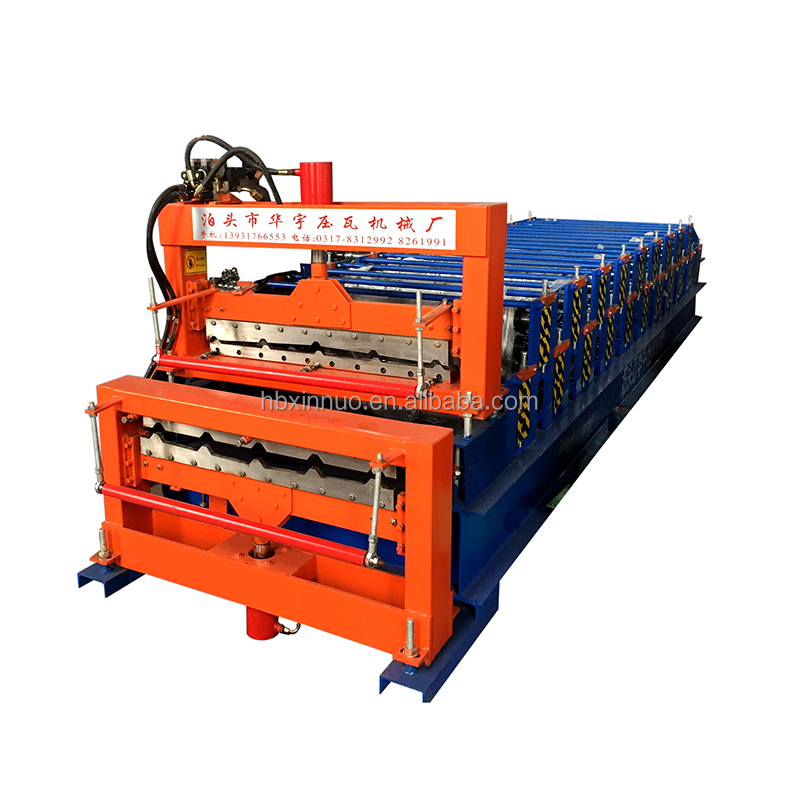

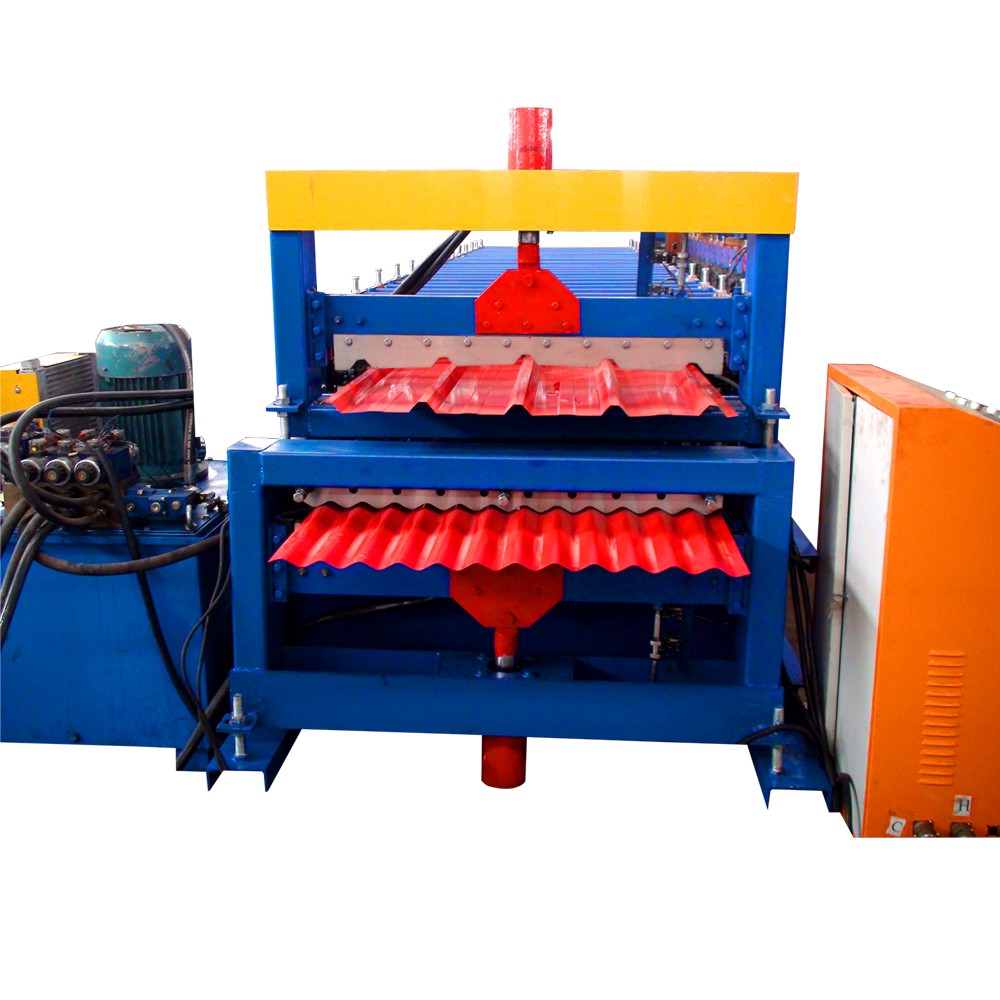

- Double-layer roll forming stations

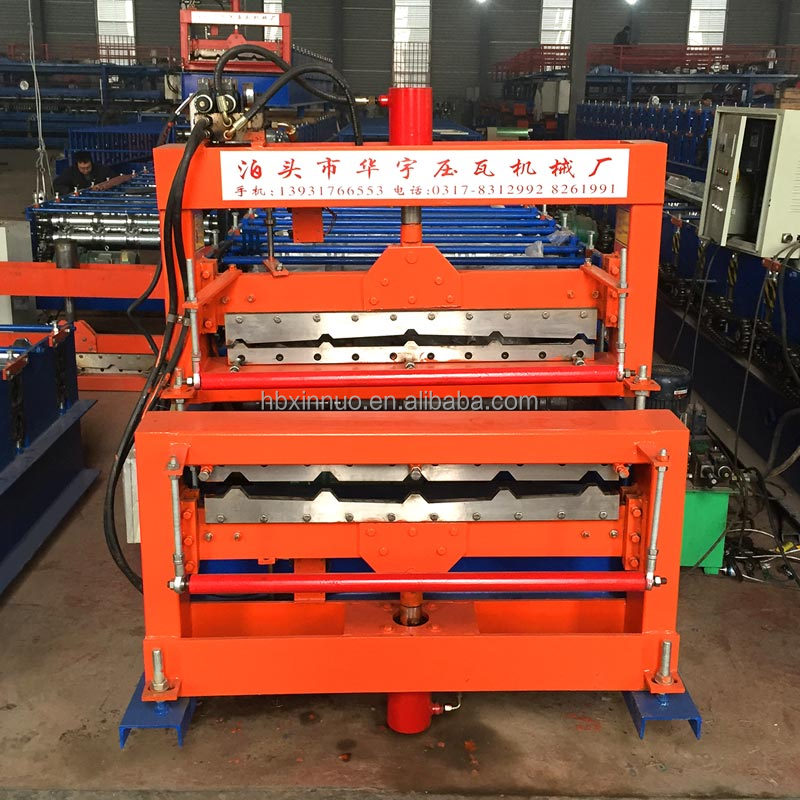

- Hydraulic cutting unit
- Run-out collection table
Power Requirements
- Electrical Requirements
- 380V, 50Hz, 3-Phase
