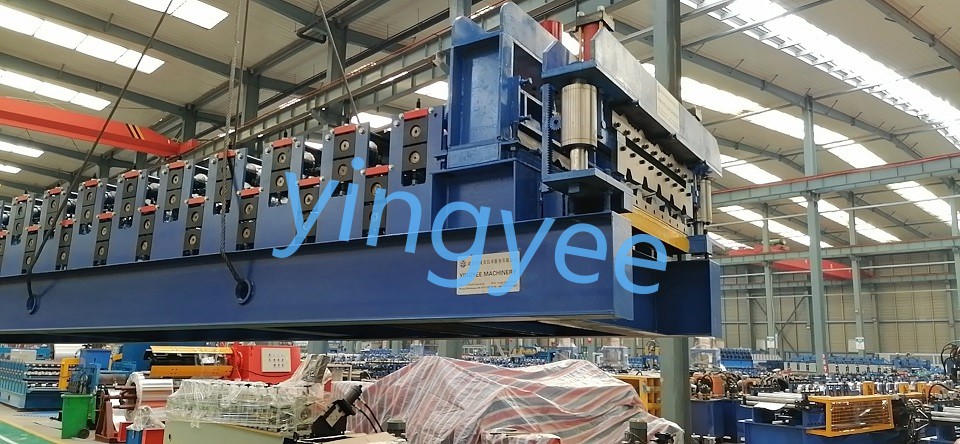

Double Layer Roof Tile Forming Machine
This double layer roof tile forming machine is designed for efficient and precise roof tile production. Its dual-layer design enables simultaneous creation of two different tile profiles.
Technical Specifications
Overview
Double Layer Roof Tile Forming Machine
This double-layer roll forming machine is engineered for the efficient and simultaneous production of two different roof tile profiles. Featuring a robust steel frame and precision hydraulic cutting systems, it offers high-volume manufacturing capabilities for both residential and commercial applications. The system includes adjustable input equipment and PLC control, ensuring consistent quality and performance across various material thicknesses.
Technical Specifications
Forming Speed
8 m/min
Standard Speed
15 m/min
Max Speed
- Power Consumption
- 5.5 kw
- Roll Stations
- 13
- Drive Mechanism
- Chain driven
- Cutting Tolerance
- 10m ±1.5mm
Material Capabilities
- Compatible Materials
- PPGIGIAluminium
- Material Thickness
- 0.2 - 0.8 mm
Machine Components
Included Components
- Manual decoiler (2 sets)
- Adjustable input equipment (2 sets)
- Main roll forming machine (2 sets)
- Hydraulic cutting system (2 sets)
- Hydraulic station (1 set)
- PLC Control system (1 set)
Shaft Specifications
| Component | Material | Diameter |
|---|---|---|
| Main Shaft | 45# Steel | 75mm |
| Forming Rollers | 45# Steel (Heat Treated/Chromed) | N/A |
