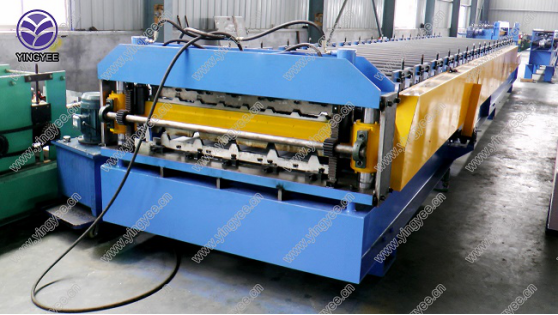

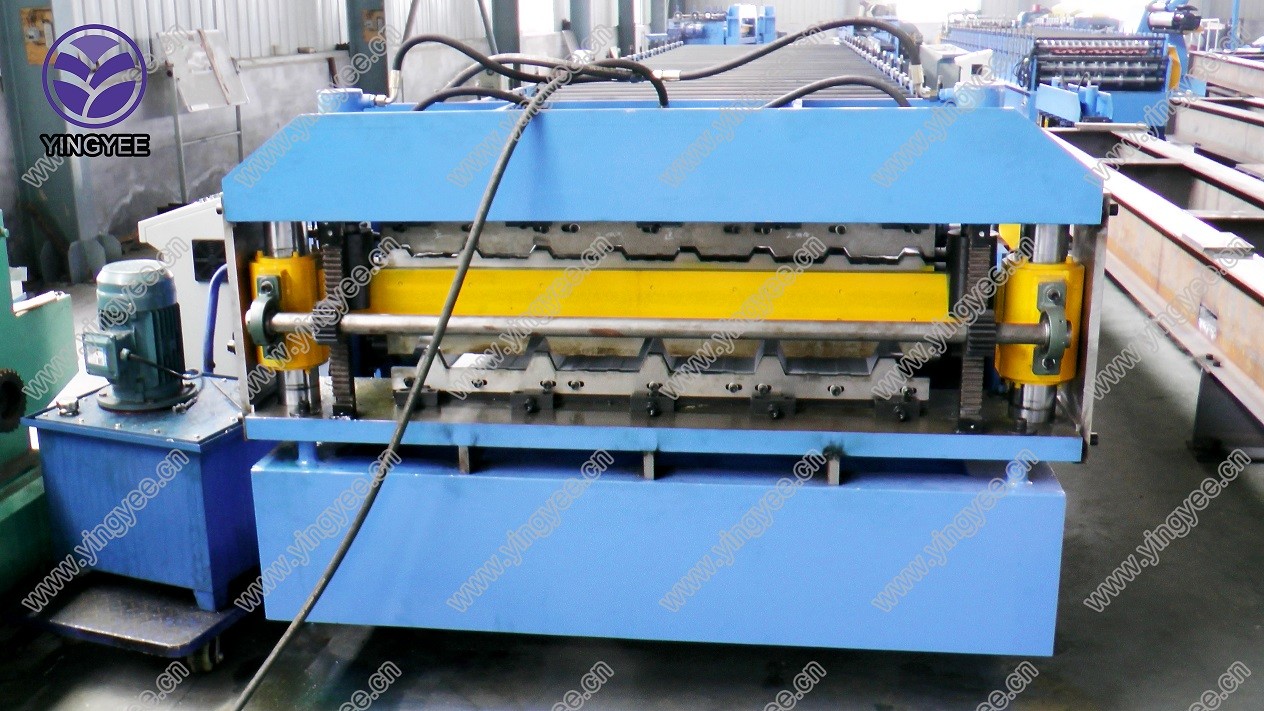

Double Layer Roof Sheet Roll Forming Machine, 30 m/min
This double layer roof sheet roll forming machine produces roofing sheets at a rate of 30 meters per minute. It is designed to form two different roof sheet profiles concurrently.
Technical Specifications
Product Overview
High-Speed Double Layer Roll Forming

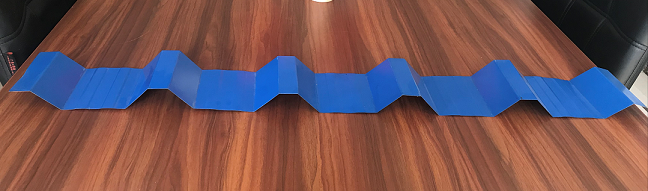

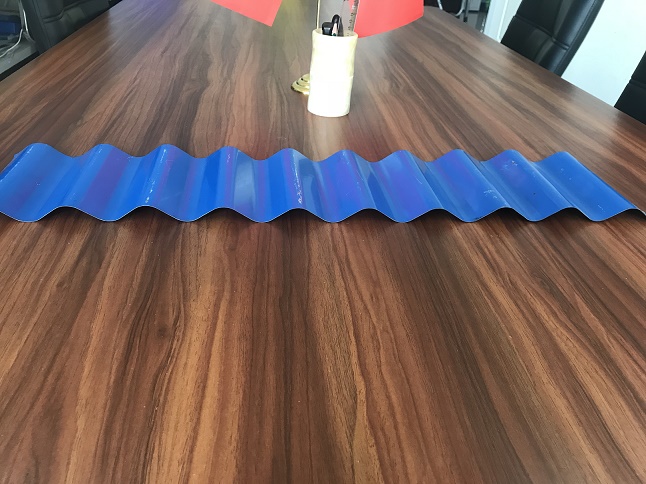

This industrial-grade machine is designed for high-speed production of metal roof sheets, reaching speeds up to 30 meters per minute. Its unique double-layer design allows for the simultaneous forming of two different profiles, significantly maximizing efficiency and reducing floor space requirements. Engineered for precision and durability, it provides a reliable solution for high-volume manufacturing of corrugated and trapezoidal roofing materials.
Key Performance Metrics
Performance Metrics
30 m/min
Max Forming Speed
7.5 kW
Main Power
13 T
Machine Weight
Material Specifications
- Compatible Materials
- PPGIGIAluminium
- Material Thickness
- 0.2 - 0.8 mm
Technical Configuration
System Components
| Component Name | Quantity |
|---|---|
| Manual Decoiler | 2 Sets |
| Adjustable Input Equipment | 2 Sets |
| Main Roll Forming Machine (Chromed) | 2 Sets |
| Hydraulic Cutting System | 2 Sets |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
Mechanical Details

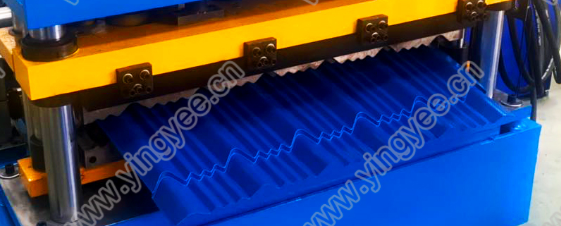

- Roll Stations
- 21
- Shaft Material & Diameter
- 45# Steel, ￠75mm
- Roller Material
- 45# Steel with heat treatment and chrome plating
- Drive System
- Chain Driven
Precision & Control
Control System
PLC Automated Control
- Cutting Tolerance
- ±1.5mm per 10m
- Input Leveling
- Adjustable equipment for precision feeding
