Technical Specifications
Product Overview
High-Efficiency Dual Profile Production

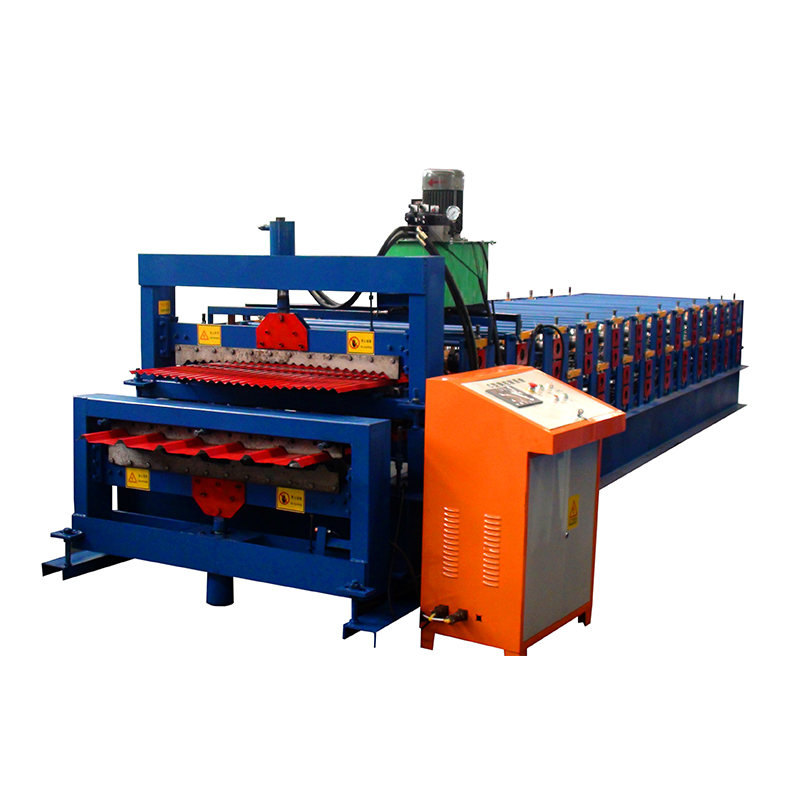

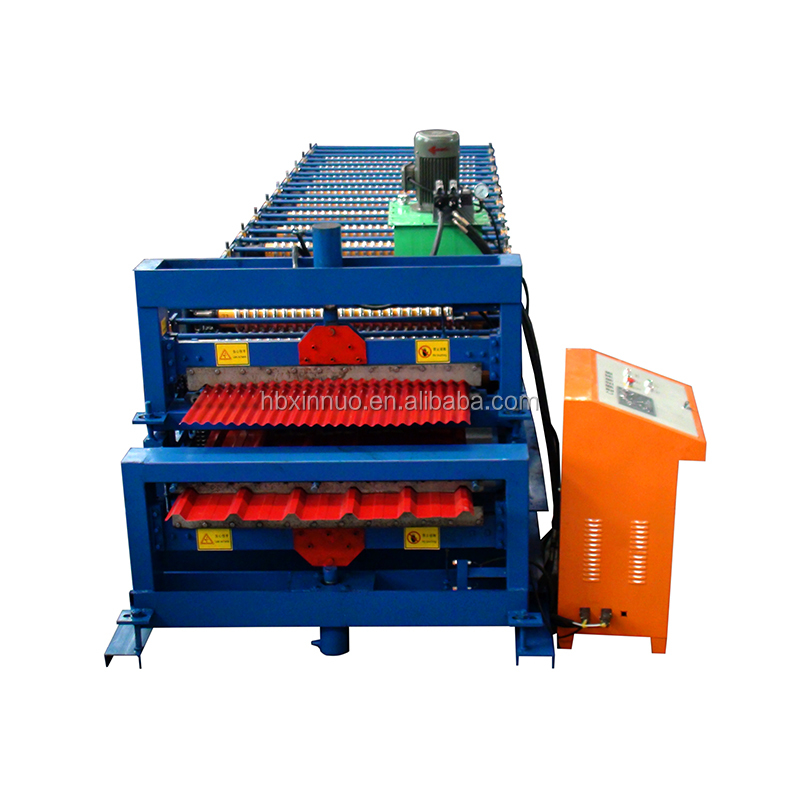

This double layer roll forming machine is engineered to produce two distinct tile or roof sheet profiles within a single compact footprint, making it an ideal solution for facilities with limited space. The system features a robust 45# steel roller assembly and an automated PLC control system for high-precision manufacturing. Designed for versatility, it handles plate thicknesses from 0.35mm to 0.6mm at speeds up to 12 meters per minute.
Key Performance Metrics
Performance Highlights
12 m/min
Max Speed
4 kW
Main Power
1,000 mm
Feeding Width
4 kW
Pump Power
Technical Specifications
- Control System
- Automatic PLC frequency control with text screen
- Roller Steps
- 9 / 11 rows
- Diameter of Roller
- 72 mm
- Effective Width
- 850/840mm (Tolerance ±1/100)
- Plate Thickness Range
- 0.35 - 0.6mm
- Main Former Dimensions
- 7600mm × 1300mm × 1450mm
Material & Construction
- Roller Material
- 45# steel, CNC-machined, heat treated, and polished
- Surface Treatment
- Electroplating chromium 0.05mm
System Components
Included Components
- Uncoiler
- Roll forming machine
- Computer control system
- Hydraulic control system
- Cutting mechanism
Operational Advantages
- Key Benefits
- Space SavingEasy OperationDual Profile CapabilityHigh PrecisionCustomizable Profiles
Service & Warranty
Warranty Period
1 Year Warranty
