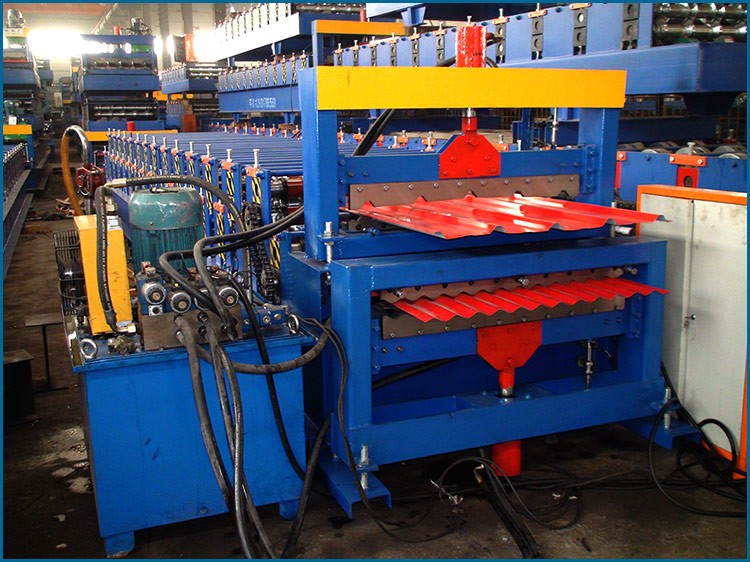

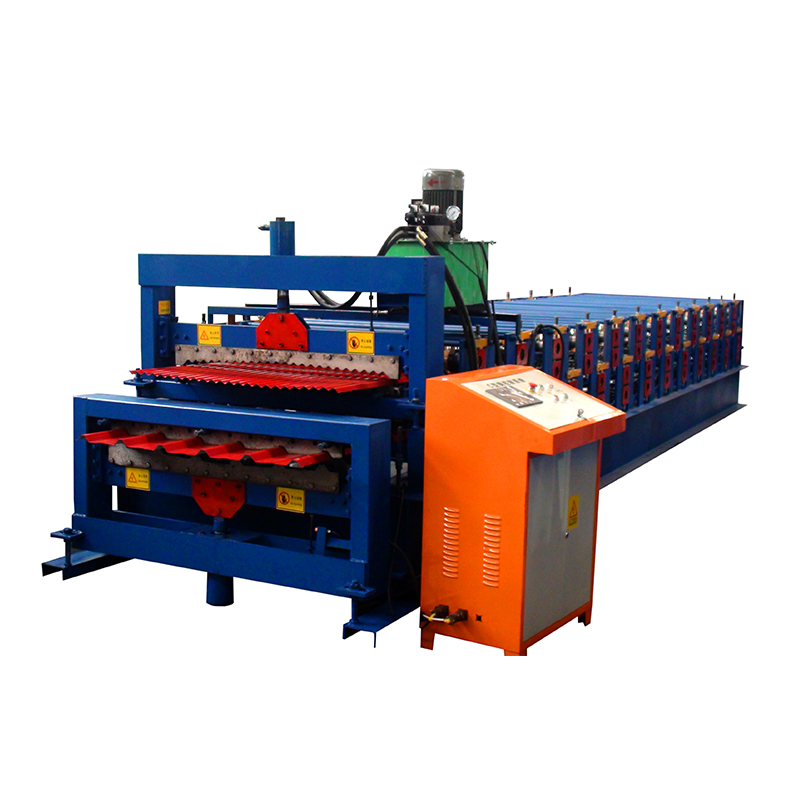

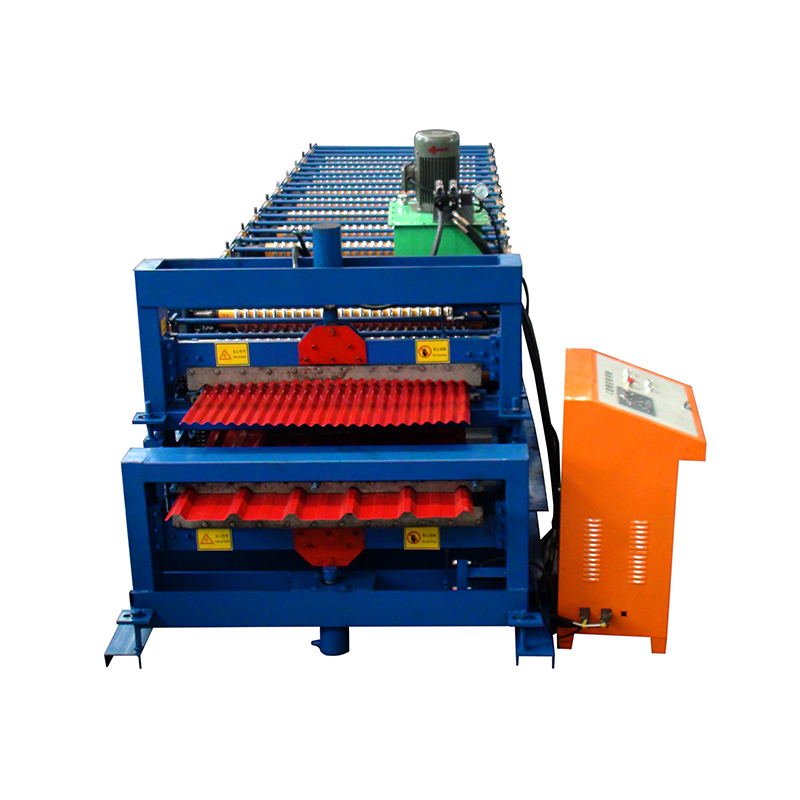

Double Layer Roof Panel Roll Forming Machine
This double layer roof panel roll forming machine creates roof panels with two different profiles in one pass. The machine forms metal sheets into specific shapes, ensuring consistent quality and dimensional accuracy.
Technical Specifications
Overview
High-Efficiency Double Layer Roll Forming
The Double Layer Roof Panel Roll Forming Machine is a versatile B2B solution designed to manufacture two distinct roof profiles within a single compact footprint. This double-decker configuration maximizes workshop space while significantly increasing production output by allowing for the simultaneous or alternative forming of different panel designs. Built with a robust steel frame and precision-engineered rollers, it ensures consistent dimensional accuracy for high-volume roofing applications.
Technical Performance
Key Performance Metrics
15 m/min
Max Working Speed
5 T
Loading Capacity
5.5 kW
Main Motor Power
Material Specifications
- Compatible Materials
- Color steel plateGalvanized sheetAluminum coilsCopper
- Material Thickness Range
- 0.3 - 0.8 mm
- Feeding Material Width
- 914 - 1250 mm

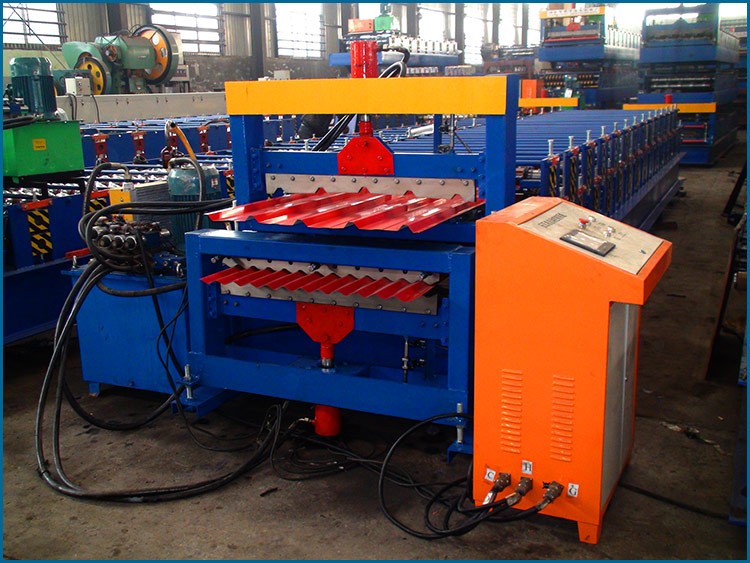

Forming System
- Roller Stations
- 11 - 18 rows (customizable)
- Roller Material
- High grade No. 45 forged steel
- Shaft Diameter
- 80 mm
Control & Hydraulics
Control System
- PLC Computer Control System
- Automatic and Manual operation modes
- Multi-language support (English, Chinese, Spanish, Russian)
- Programmable profile length and quantity
Hydraulic System Details
| Feature | Specification |
|---|---|
| Hydraulic Power | 4 kW |
| Working Pressure | 12-16 Mpa (Adjustable) |
| Oil Type | 46# Hydraulic Oil |
| Cutting Material | Cr12Mov with quenched treatment |

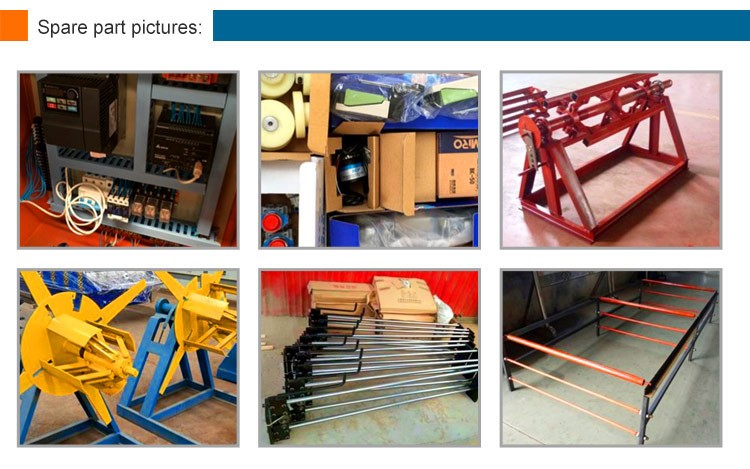

Uncoiler Specifications
Manual Uncoiler Data
- Inner Diameter: 500-508 mm
- Max Outer Diameter: 1250 mm
- Max Steel Coil Width: 1300 mm
- Coil Placement: Hydraulic hoist supported
Compliance
Quality Certifications
CEISO 9001IAF
