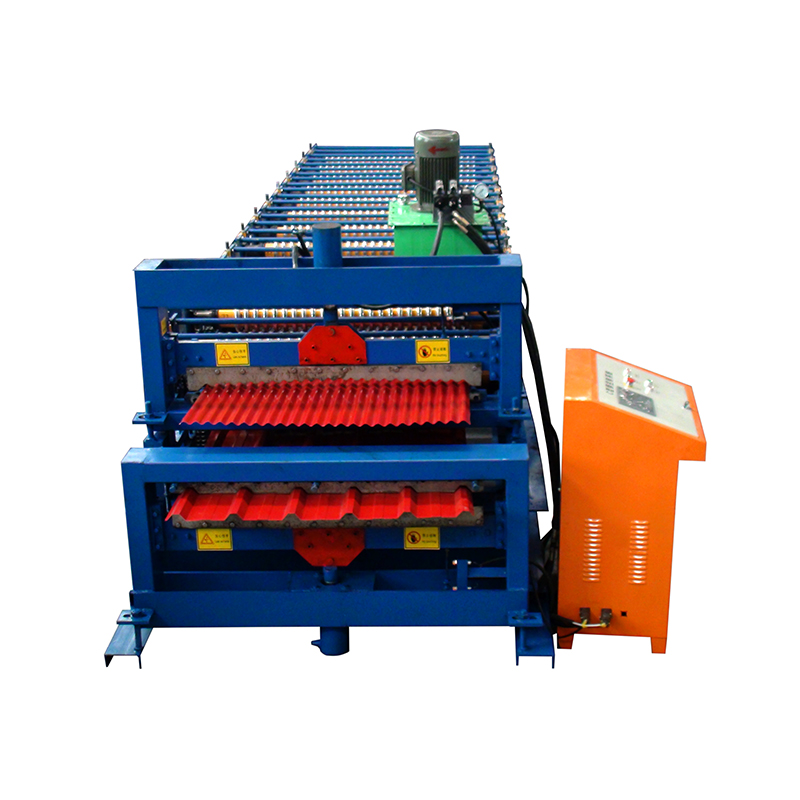

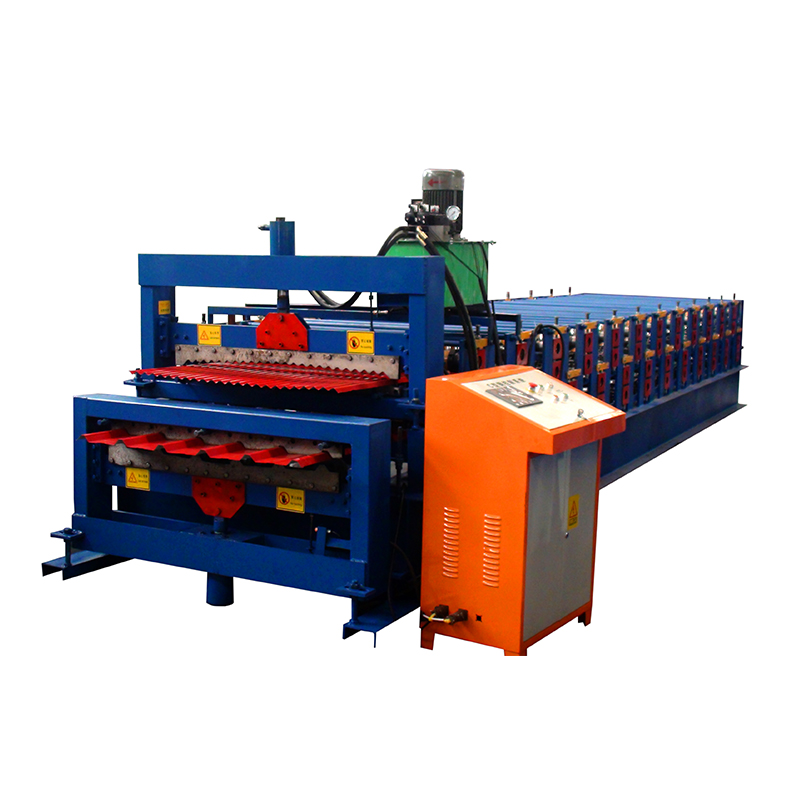

Double Layer Roof Panel Roll Forming Machine
This double layer roll forming machine produces roof panels with two different profiles in one pass. It features a robust steel frame and computerized control system for automated operation.
Technical Specifications
Overview
High-Efficiency Double Layer Production
This double-decker roll forming machine is engineered to produce two distinct roof panel profiles within a single compact footprint, significantly maximizing workshop space and productivity. It features a robust steel frame for vibration-free operation and a sophisticated PLC control system for automated, high-precision manufacturing. Ideal for high-volume B2B environments, this versatile solution handles various materials including color steel, galvanized sheets, and aluminum coils.
Key Performance Metrics
Performance Highlights
12 m/min
Max Productivity
5 T
Loading Capacity
18 Rows
Max Roller Stations
1 Year
Warranty
Material Specifications
- Compatible Materials
- Color Steel PlateGalvanized SheetAluminum Coils
Technical Dimensions
- Feeding Material Width
- 914 - 1250mm
- Material Thickness Range
- 0.3 - 0.8mm
- Shaft Diameter
- 70 - 80mm

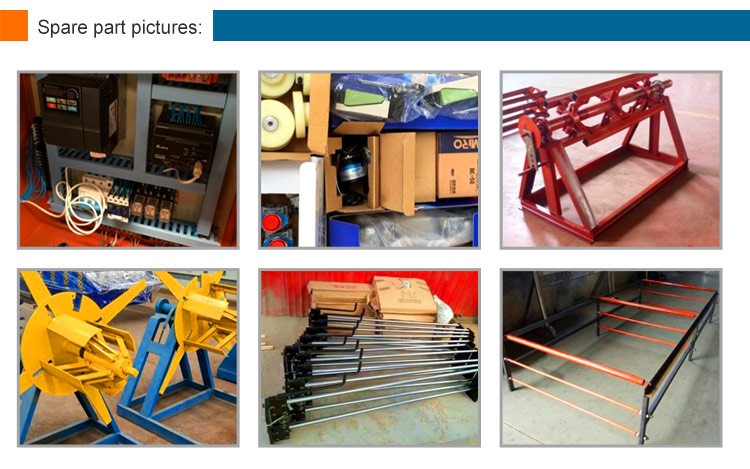

System Components

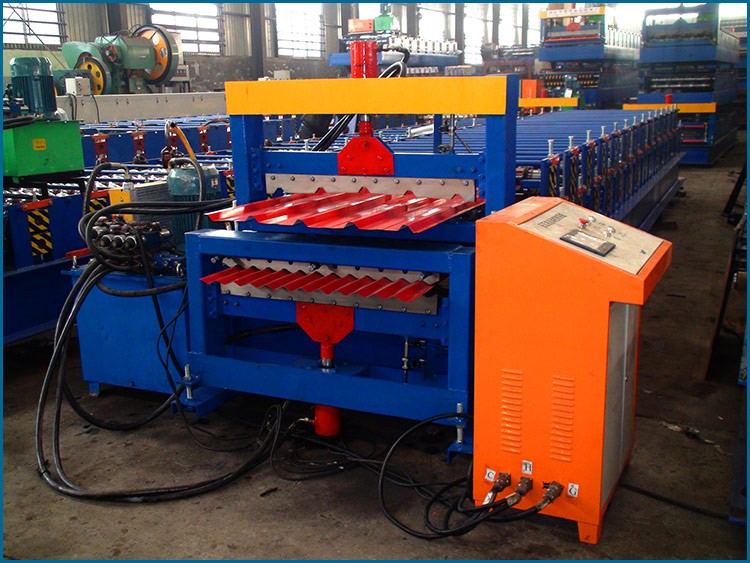

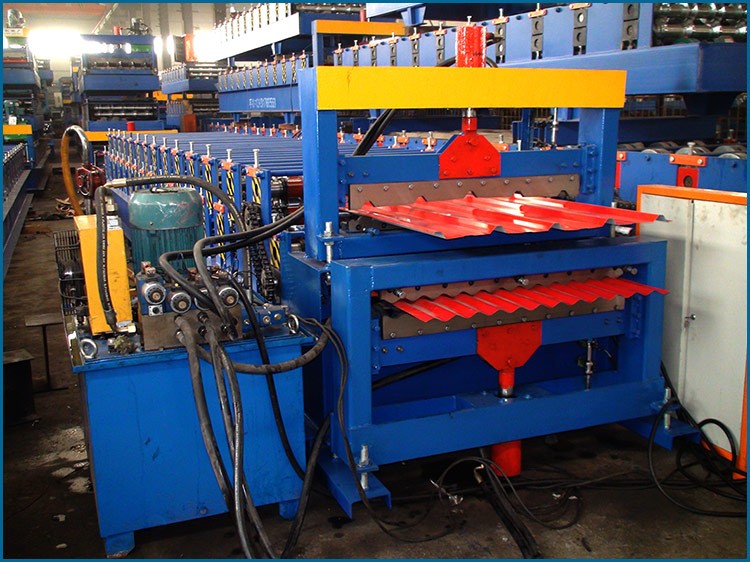

Roller System Details
- Material: High grade No. 45 forged steel
- Stations: 11-18 rows (customizable)
- Precision engineered for consistent profile quality
Hydraulic Cutting System
- Blade Material: Cr12Mov with quenched treatment
- Drive: Hydraulic drive integrated with PLC
- Function: Precise dimension cutting for both tiers
Control & Automation
Computer Control Cabinet
- Operation Modes: Automatic and Manual
- Programmable: Profile length and quantity settings
- Supported Languages: English, Chinese, Spanish, Russian
Hydraulic & Power
Hydraulic System Parameters
| Parameter | Value |
|---|---|
| Power | 4kW |
| Oil Type | 46# Hydraulic Oil |
| Working Pressure | 12-16Mpa (Adjustable) |
| Main Motor Power | 5.5KW AC Motor |
Uncoiler Specifications
Manual Uncoiler Specs
- Inner Diameter: 500-508mm
- Max Outer Diameter: 1250mm
- Max Steel Coil Width: 1300mm
- Working Speed: 0-15m/min adjustable
Certifications
Quality Compliance
CE CertifiedISO 9001Alibaba.com Assessed
