Double Layer Roof Panel Roll Forming Machine

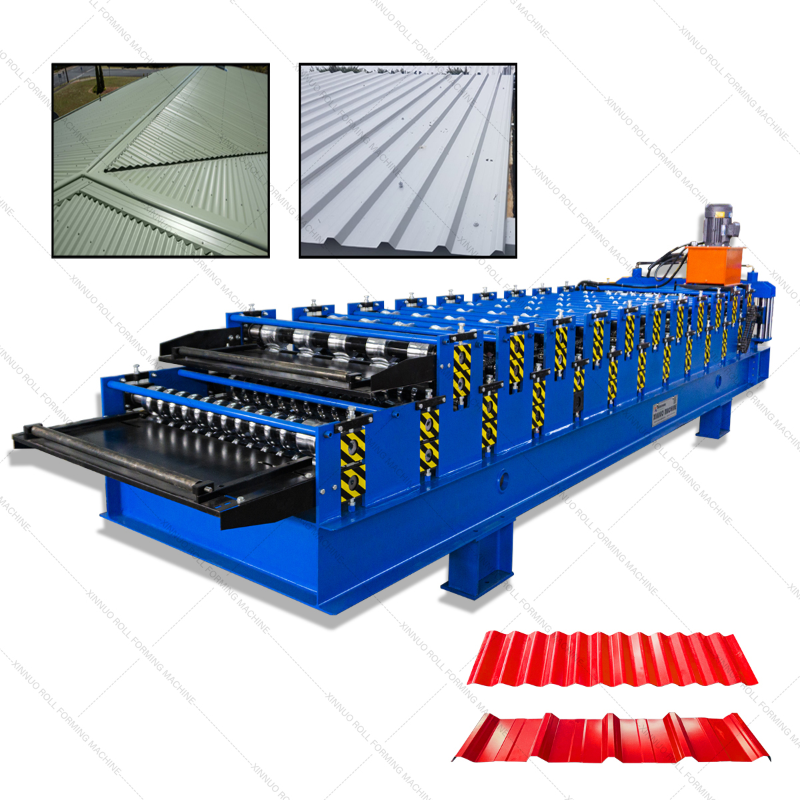

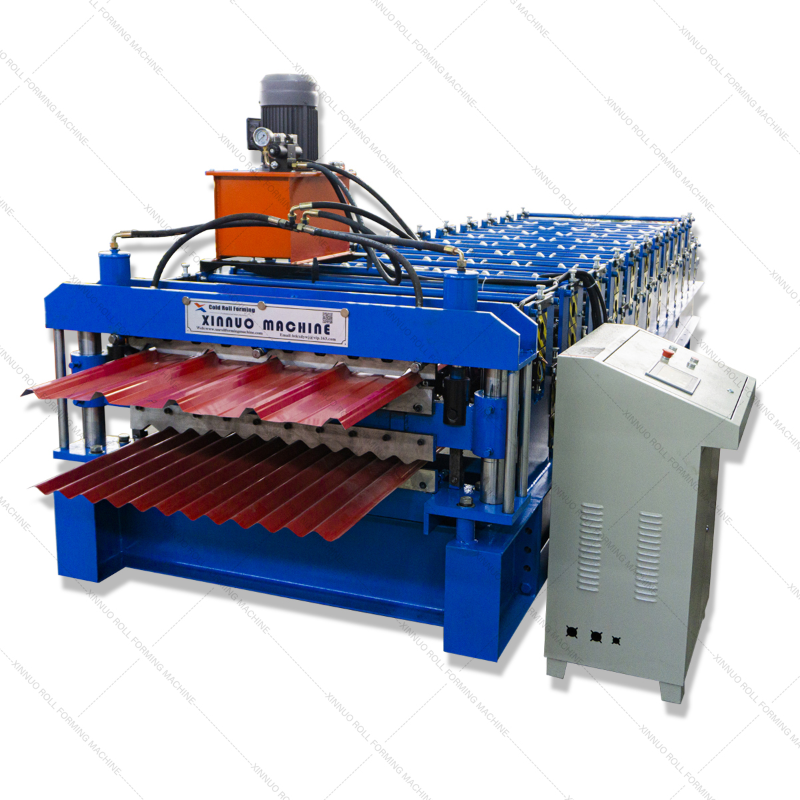

This machine efficiently produces roof panels with a double-layer configuration. It forms two different panel profiles simultaneously, increasing productivity.
Technical Specifications
Overview
High-Efficiency Double Layer Production
This double layer roof panel roll forming machine is engineered for high-volume B2B manufacturing, allowing for the simultaneous production of two distinct profiles in a single footprint. Its double-decker configuration optimizes workshop space while increasing versatility for producing corrugated, trapezoidal, or tile-effect panels. Built with a robust steel frame and precision-engineered rollers, it ensures consistent dimensional accuracy and long-term reliability for industrial roofing applications.
Technical Performance
Performance Metrics
12 m/min
Max Productivity
5.5 kW
Main Motor Power
5 T
Uncoiler Capacity
Material Compatibility
Material Specifications
| Parameter | Range |
|---|---|
| Feeding Width | 914-1250mm |
| Material Thickness | 0.3-0.8mm |
| Max Coil Outer Diameter | 1250mm |
| Coil Inner Diameter | 500-508mm |
- Suitable Materials
- Color Steel PlateGalvanized SheetAluminum Coils

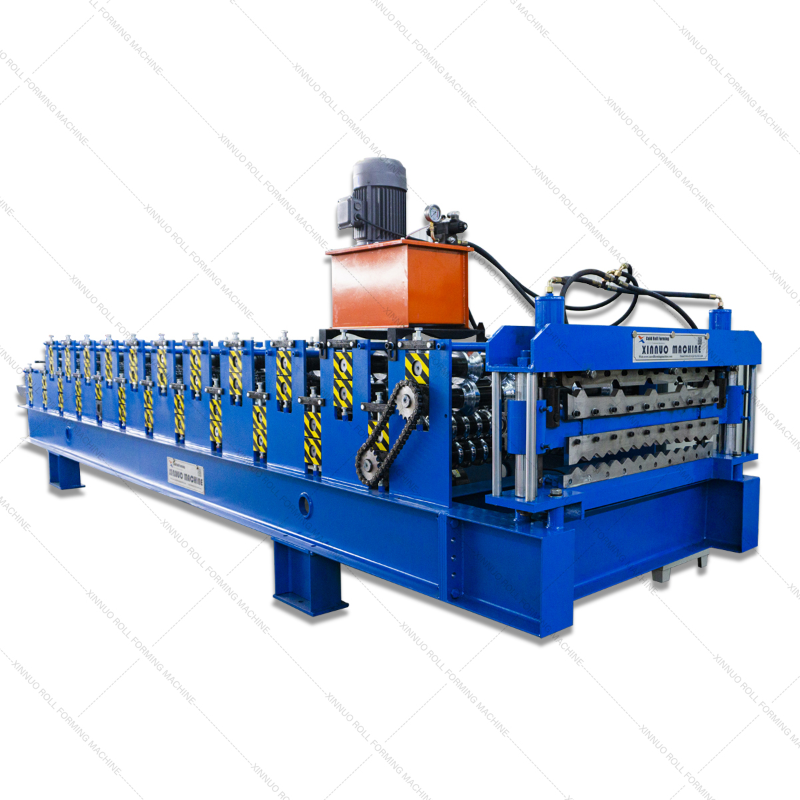

Forming System
Roller System Details
- Roller Station: 11-18 rows (customizable)
- Roller Material: High grade No.45 forged steel
- Shaft Diameter: 70-80mm
- Drive Type: Hydraulic drive for cutting
Control & Hydraulics
Control System
- PLC Computer Control System
- Modes: Automatic and Manual
- Programmable profile length and quantity
- Supported Languages: English, Chinese, Spanish, Russian
Hydraulic System Specifications
| Feature | Specification |
|---|---|
| Hydraulic Power | 4kW |
| Working Pressure | 12-16Mpa (Adjustable) |
| Hydraulic Oil Type | 46# |
| Cutting Blade Material | Cr12Mov with quenched treatment |
Operational Features

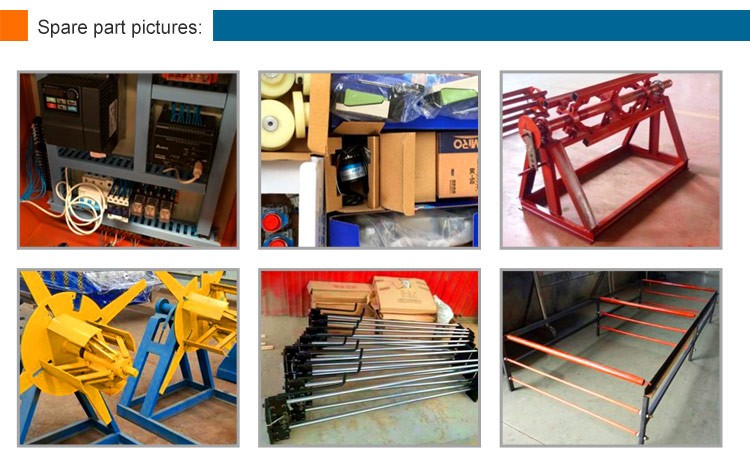

Uncoiler & Receiving
- Manual uncoiler with hydraulic hoist for coil placement
- Adjustable working speed: 0-15m/min
- Receiving table with welded steel framework
- Supported rollers for finished product collection
Service & Support
Warranty & Support
1 Year WarrantyCustom Sourcing AvailableExport Experience Since 1998
