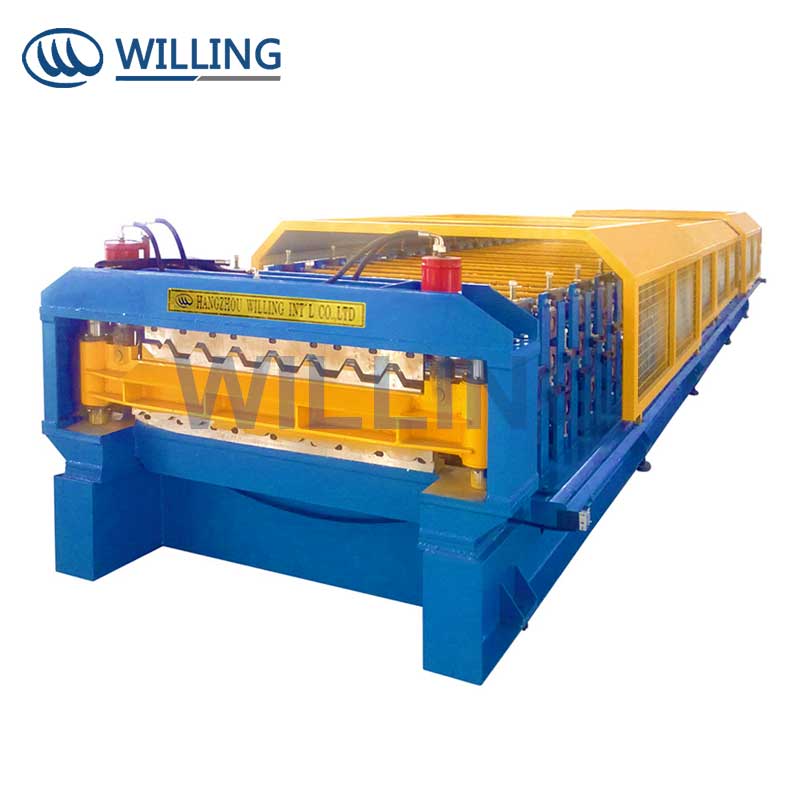

Double Layer Panel Roll Forming Machine
This double layer roll forming machine is engineered for producing wall, roof, and door panels. It utilizes a series of rollers to shape metal sheets into specific profiles for construction applications.
Technical Specifications
Overview
Versatile Double Layer Roll Forming Solution

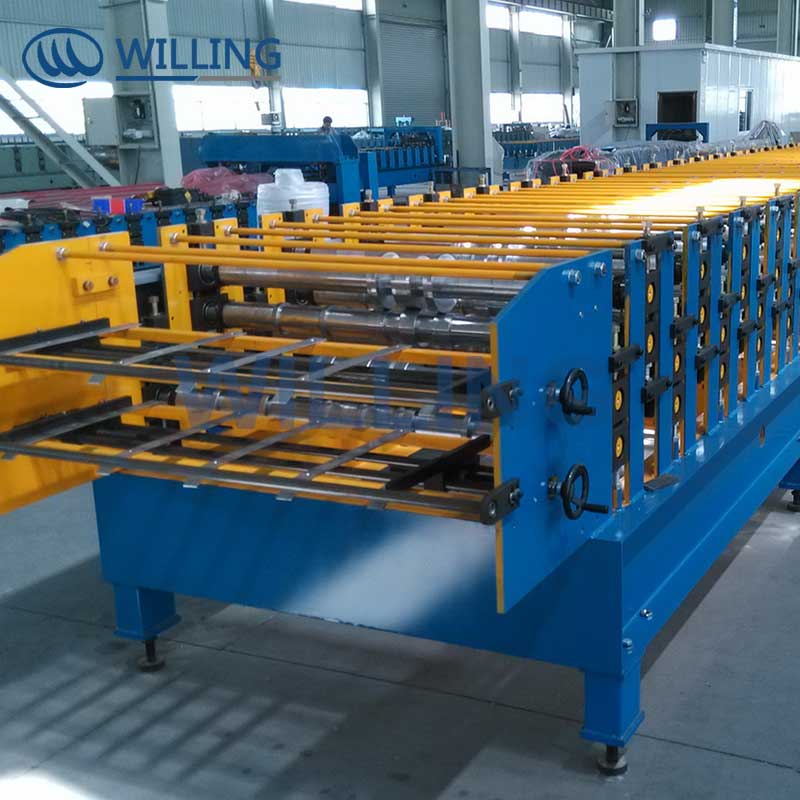

This double layer roll forming machine is engineered for the high-volume production of wall, roof, and door panels, offering a versatile solution for construction and industrial applications. It features a robust steel frame and precision-engineered rollers designed to process various materials including aluminum, galvalume, and galvanized steel. The dual-layer system allows for efficient manufacturing of multiple profiles within a single machine footprint, maximizing productivity and workshop space.
Key Performance Metrics
Technical Highlights
5.5 kW
Motor Power
3 kW
Hydraulic Power
5 m/min
Max Speed
8,000 kg
Total Weight
Technical Specifications
Material Compatibility
| Parameter | Value |
|---|---|
| Suitable Materials | Aluminum, Galvalume, Galvanized, Pre-painted Galvanized Steel |
| Material Thickness | 0.3 - 0.7 mm |
| Coil Width | 914 - 1250 mm |
| Roller Material | High grade S45C forged steel with hard chrome coating |

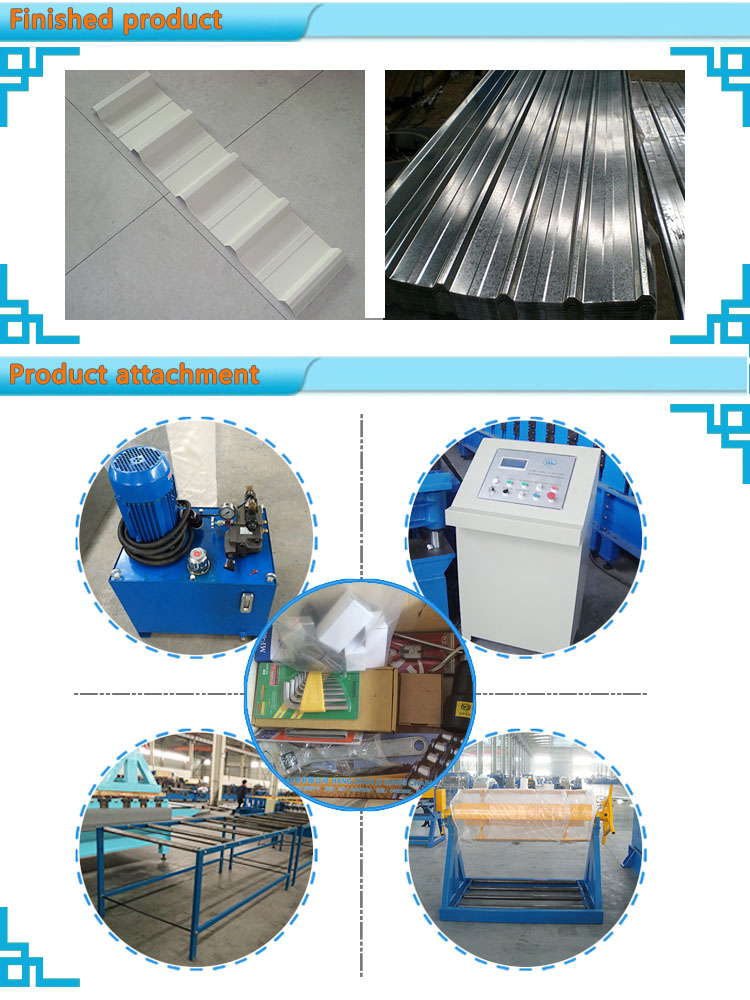

Machine Components
Core Systems
- Manual Uncoiler (Max. Capacity 5000kgs)
- Uncoiler Adjustable Device

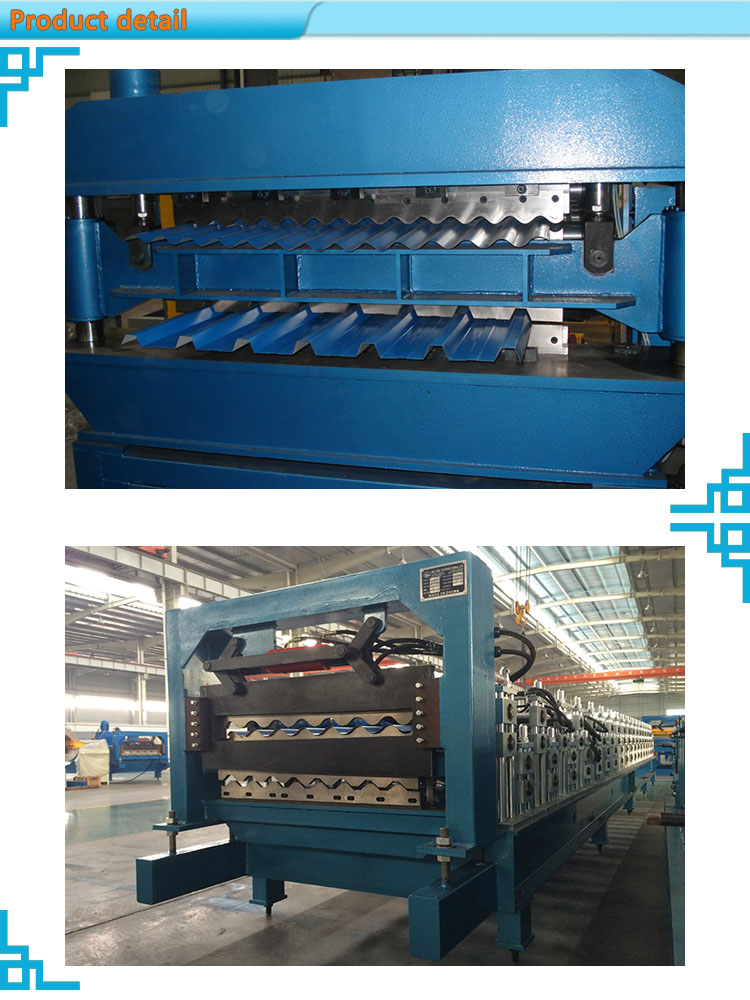

- Roll Forming System with multiple stations
- Hydraulic Cutting Equipment
- PLC Control Panel
- Panel Supporter
Operational Requirements
- Voltage
- 380V / 3 Phase / 50HZ (or as per requirement)
Service & Support
After-Sales & Installation
- One year guarantee for the whole machine
- 24-hour technical support via digital channels
- On-site installation and operator training available
- Instruction manuals and video guides provided
- Technical guidance for debugging and maintenance
Product Applications
- Common Applications
- Roofing TilesWall SheetsFloor DeckingRoller Shutter DoorsSandwich Panels
