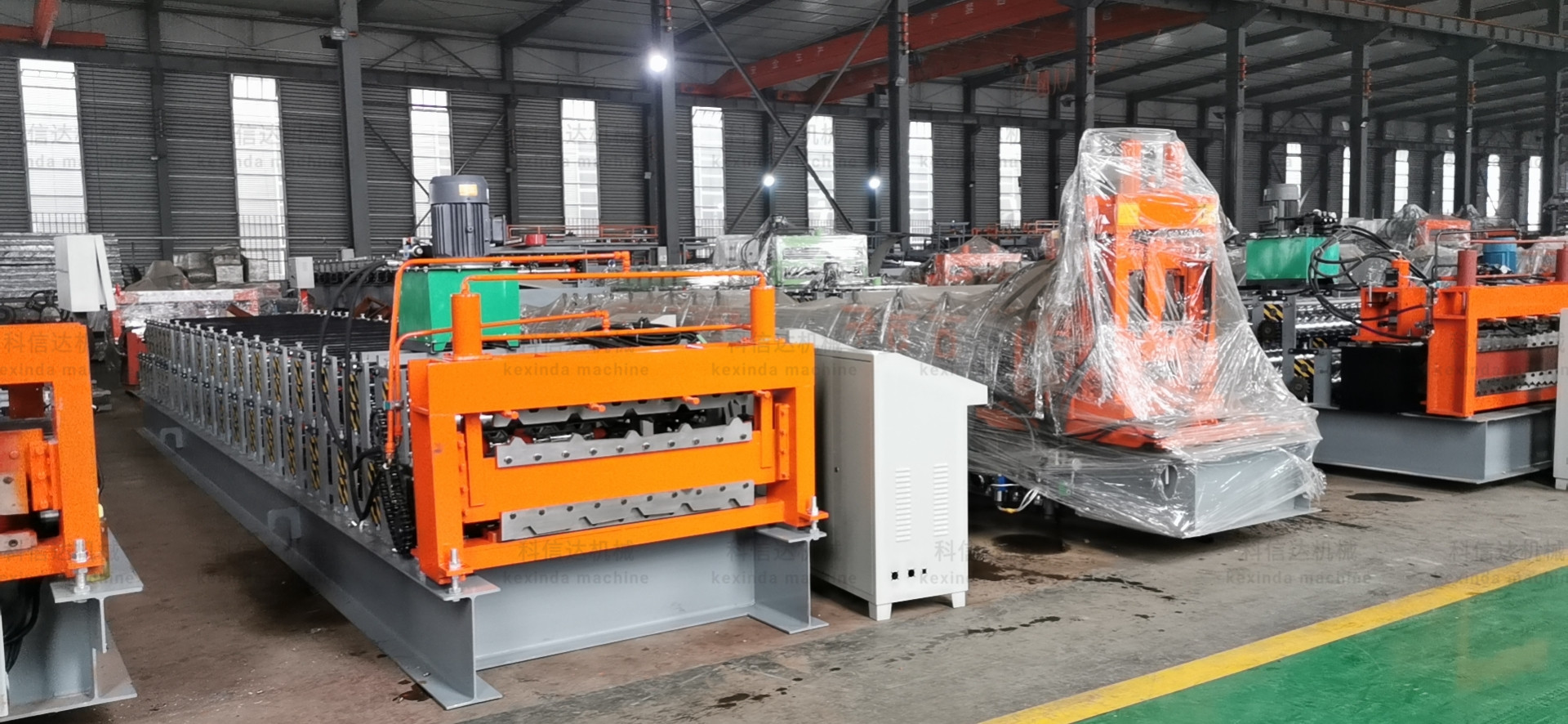

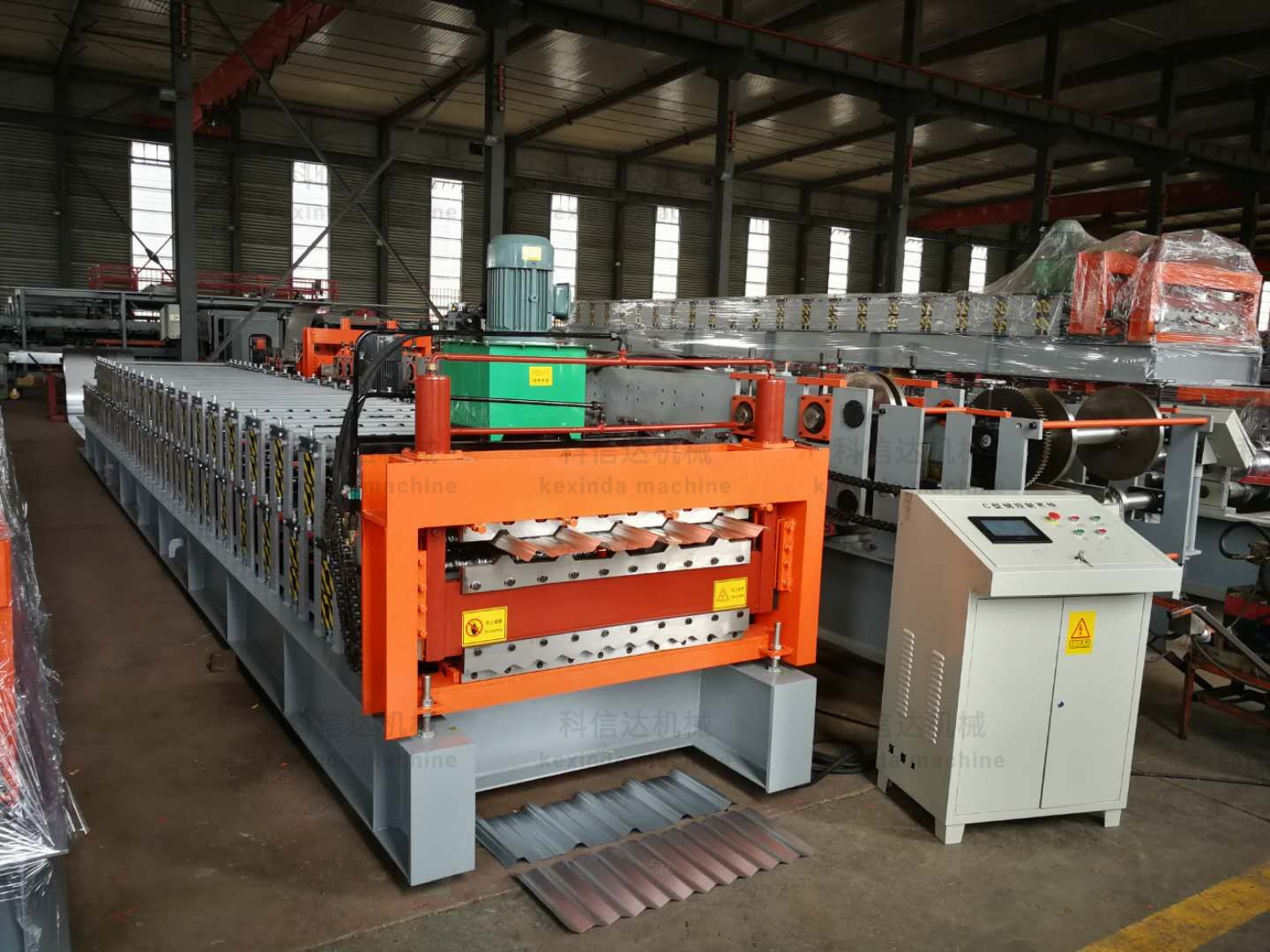

Double Layer Metal Sheet Roll Forming Machine

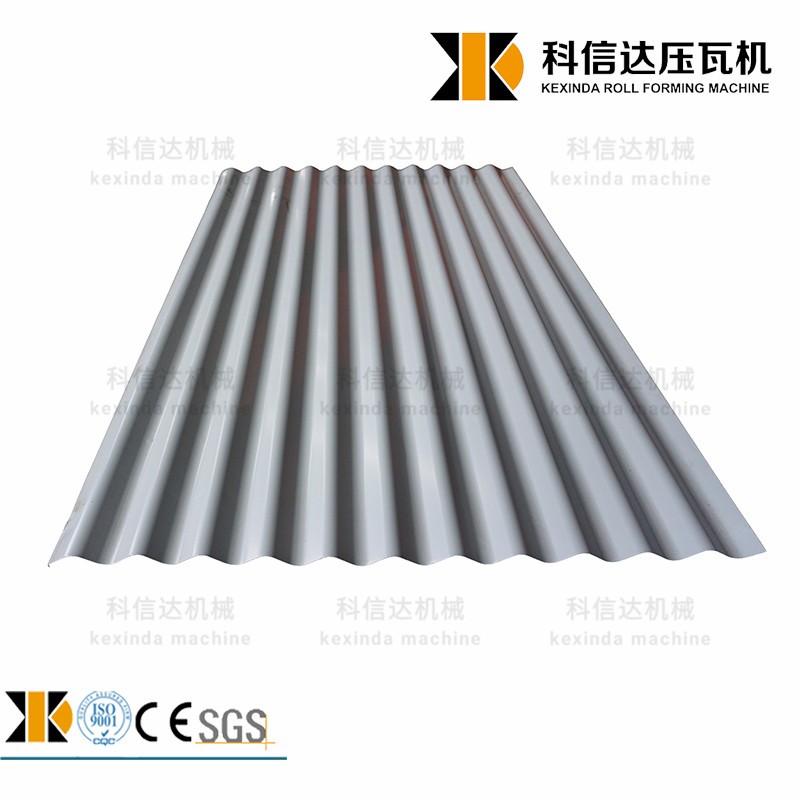

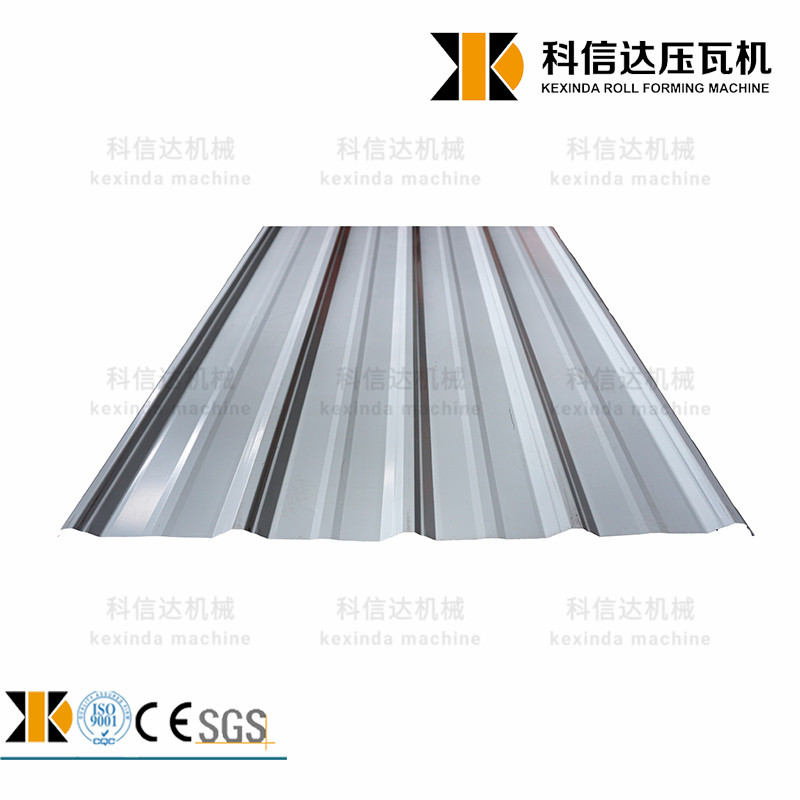

This roll forming machine produces double-layer metal sheets for roofing and wall panels. It features robust construction and advanced control systems for reliable performance.
Technical Specifications
Overview
High-Efficiency Double Layer Forming
This double layer metal sheet roll forming machine is engineered for the simultaneous or alternative production of two different profiles, significantly increasing manufacturing versatility and space efficiency. Designed for the construction industry, it excels at producing high-quality roofing sheets and wall panels from various metal substrates. The robust construction combined with advanced automated controls ensures consistent dimensional accuracy and high productivity for B2B operations.
Technical Performance
Performance Highlights
12 m/min
Max Speed
0.8 mm
Max Thickness
1,250 mm
Max Feeding Width
Material Specifications
- Compatible Materials
- Color Steel PlateGalvanized SheetAluminum Coils
- Material Thickness Range
- 0.3 - 0.8 mm
- Feeding Material Width
- 914 - 1250 mm
Machine Construction
- Roller Stations
- 11-18 rows (customizable to requirements)
- Roller Material
- 45# Steel
- Shaft Diameter
- 80 mm
- Main Frame Wall Thickness
- 12-18mm steel plate
Electrical & Control
Control System
- Automated PLC control
- Variable frequency drives
- Precision cutting mechanism
- User-friendly interface
- Power Supply
- 380V 50Hz 3-Phase

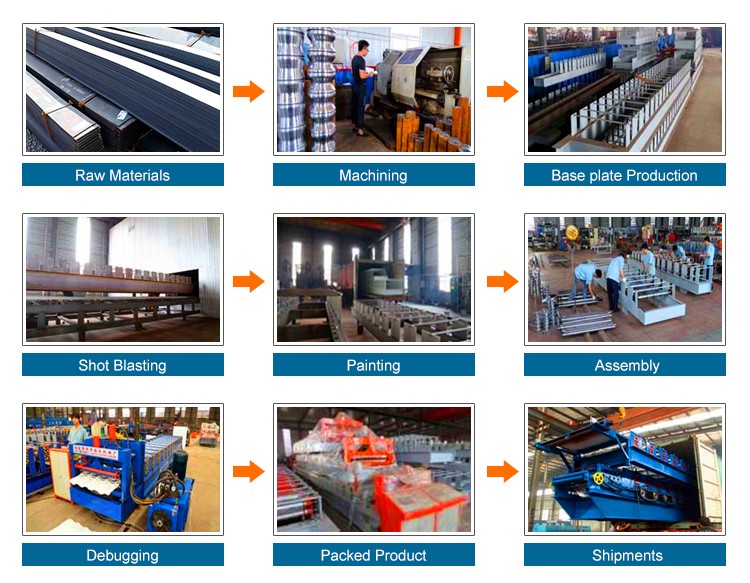

Manufacturing Process
Quality Control Workflow
- Raw material preparation
- Precision machining of rollers and shafts
- Base plate production and shot blasting
- Electrostatic spraying/painting
- Component assembly
- System debugging and testing
- Final packing and shipment
Service & Support
Compliance & Quality
CEISO 9001CQC
- Warranty Period
- 1 Year
