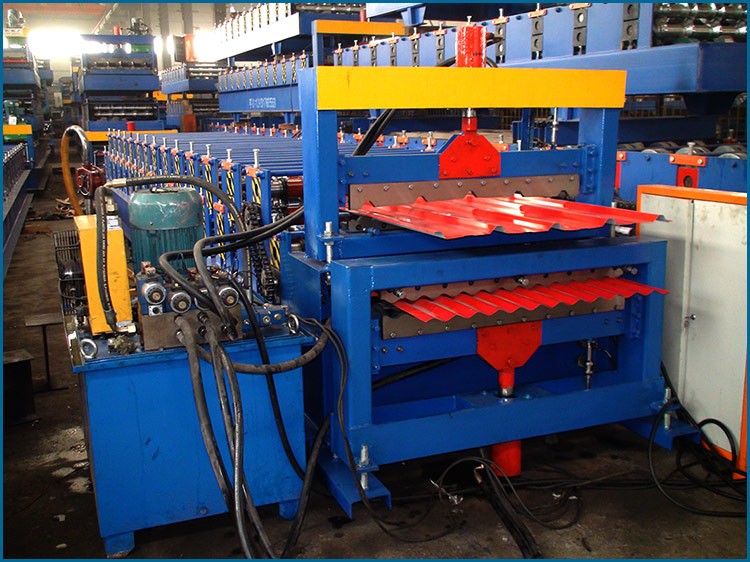

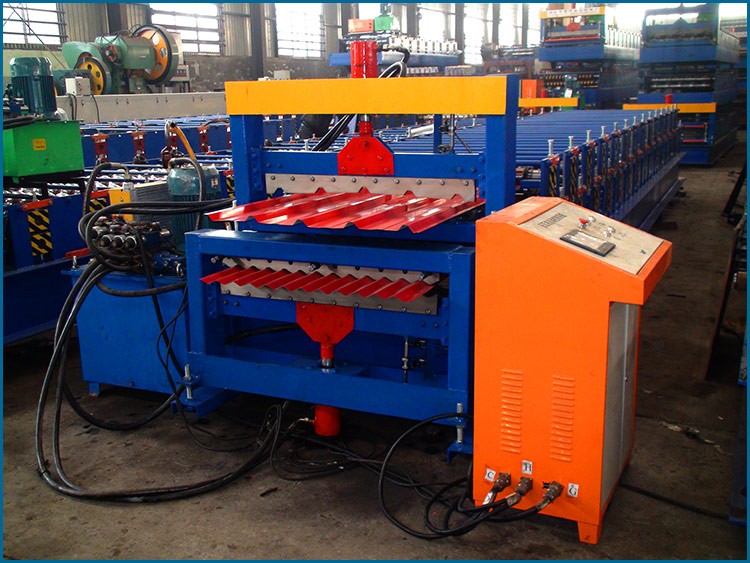

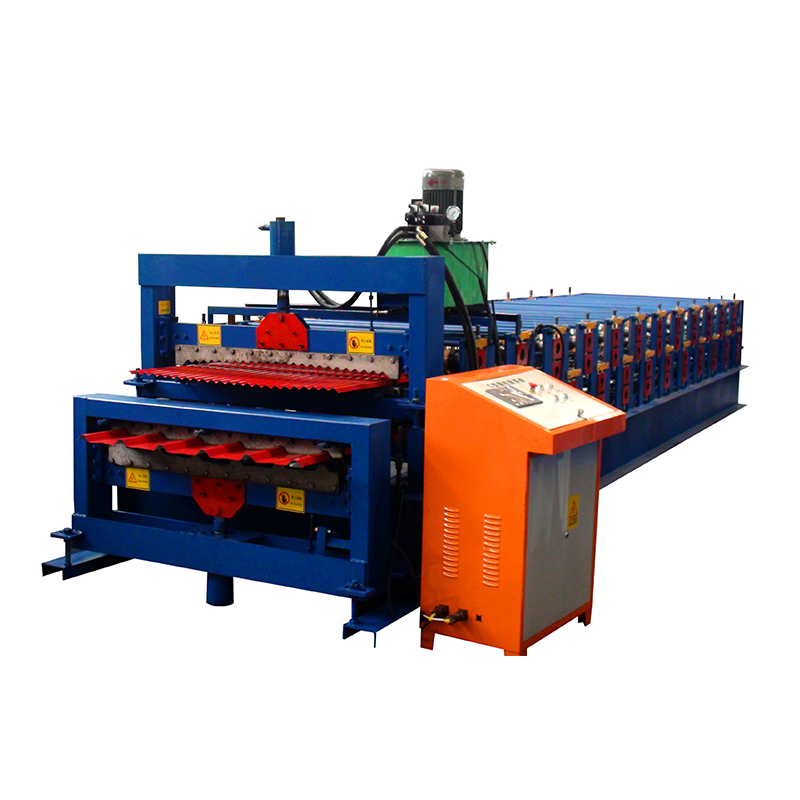

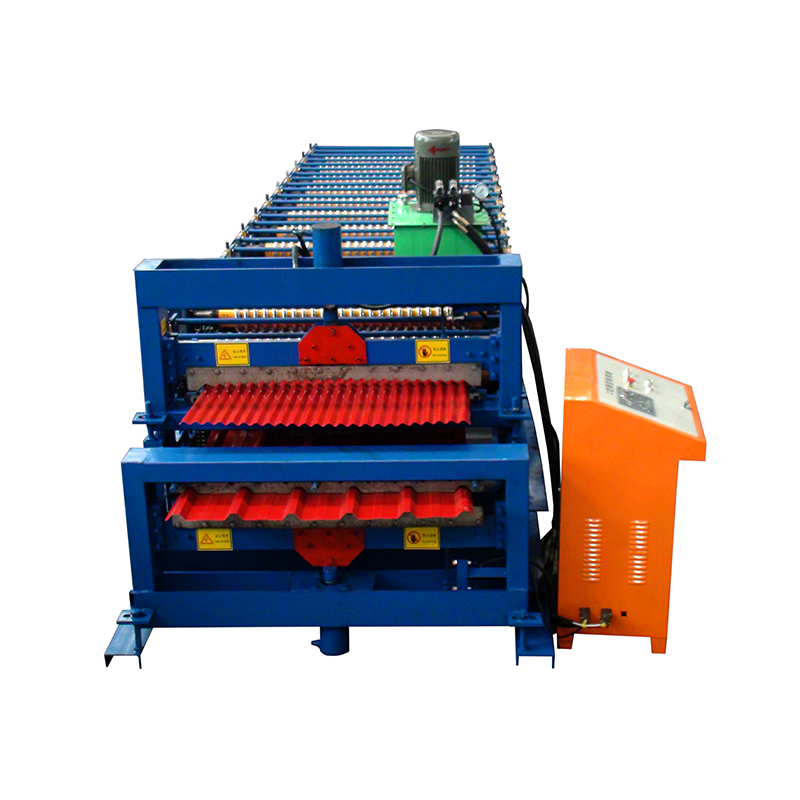

Double Layer Metal Roofing Tile Roll Forming Machine
This double layer roll forming machine efficiently produces color steel tiles. It forms two different tile profiles simultaneously, increasing productivity.
Technical Specifications
Product Overview
High-Efficiency Double Layer Roll Forming
This double layer metal roofing tile roll forming machine is engineered for the simultaneous production of two different tile profiles, significantly increasing productivity for B2B manufacturers. It features a robust steel frame construction and an advanced PLC control system for automated, precise operation with minimal material waste. Designed for durability and ease of use, it is an ideal solution for high-volume production of color steel, galvanized, and aluminum roofing and wall cladding panels.
Technical Performance
Performance Metrics
12 m/min
Max Speed
5 T
Uncoiler Capacity
4 kW
Hydraulic Power
5.5 kW
Main Motor Power
Material Specifications
- Compatible Materials
- Color steel plateGalvanized sheetAluminum coils
- Feeding Material Width
- 914-1250mm
- Material Thickness Range
- 0.3-0.8mm
Forming System
- Roller Stations
- 11-18 rows (customizable)
- Roller Material
- High grade No.45 forged steel
- Shaft Diameter
- 70-80mm
Control & Cutting
Control System
- PLC Computer Control Cabinet
- Automatic and Manual modes
- Programmable profile length and quantity
- Multi-language support (English, Chinese, Spanish, Russian)
Cutting System Details
| Component | Specification |
|---|---|
| Blade Material | Cr12Mov with quenched treatment |
| Drive Type | Hydraulic |
| Working Pressure | 12-16Mpa (adjustable) |
| Hydraulic Oil | 46# |
Uncoiler Specifications
Manual Uncoiler Specs
- Inner diameter: 500-508mm
- Maximal outer diameter: 1250mm
- Steel coil width: 1300mm
- Working speed: 0-15m/min adjustable
- Coil placement: Hydraulic hoist
Service & Warranty
Quality Standards
ISO 9001CE ComplianceAssessed Supplier
- Warranty
- 1 Year
