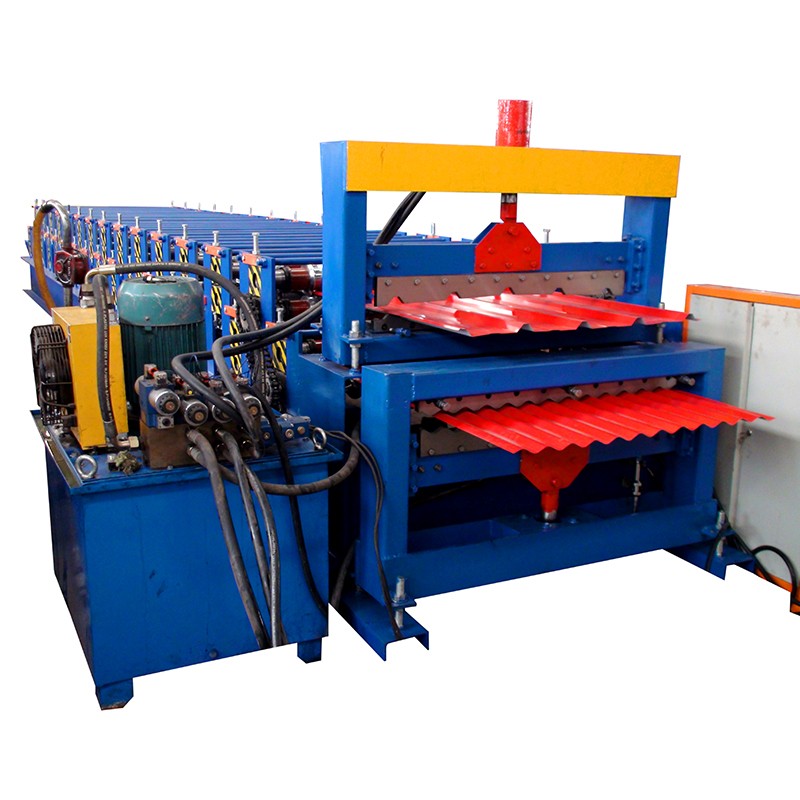

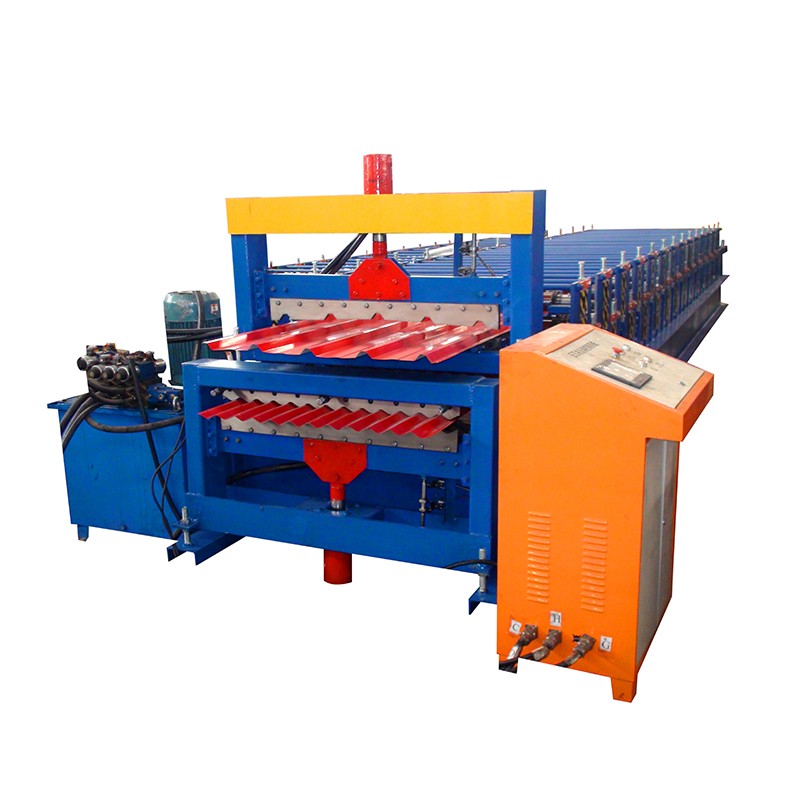

Double Layer Corrugated Metal Sheet Forming Machine
This double layer corrugated forming machine manufactures iron sheets and metal roofing materials. It is designed for producing corrugated sheets with consistent quality and dimensions.
Technical Specifications
Overview
High-Efficiency Double Layer Forming Solution
This double layer corrugated metal sheet forming machine is engineered to produce two distinct tile profiles within a single, space-saving footprint. It features a robust PLC automatic control system and high-precision rollers to ensure consistent quality for iron sheets, drywall, and metal roofing applications. Designed for versatility and ease of operation, it is an ideal solution for high-volume production environments with limited floor space.
Performance Metrics
Key Performance Metrics
12 m/min
Max Speed
4 kW
Main Power
4 kW
Pump Power
Technical Specifications
Roller Construction
- 45# steel base material
- Precision CNC-machined
- Heat treated and buffed
- 0.05mm chromium electroplating surface
- Control System
- Automatic PLC frequency control with text screen
- Roller Steps
- 9/11 rows
- Roller Diameter
- 72 mm
Material Compatibility
- Feeding Width
- 1000 mm
- Effective Width
- 840mm / 850mm
- Plate Thickness
- 0.35 - 0.6 mm
Physical Dimensions
- Main Machine Dimensions
- 7600mm × 1300mm × 1450mm
System Components
- Included Components
- UncoilerRoll Forming MachineComputer Control SystemHydraulic Control SystemCutting System
Service & Support
- Warranty Period
- 1 Year
