Technical Specifications
Overview

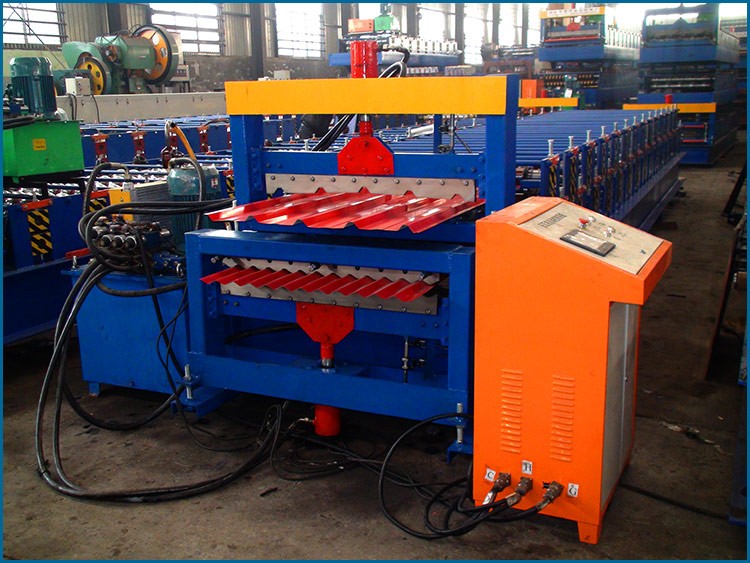

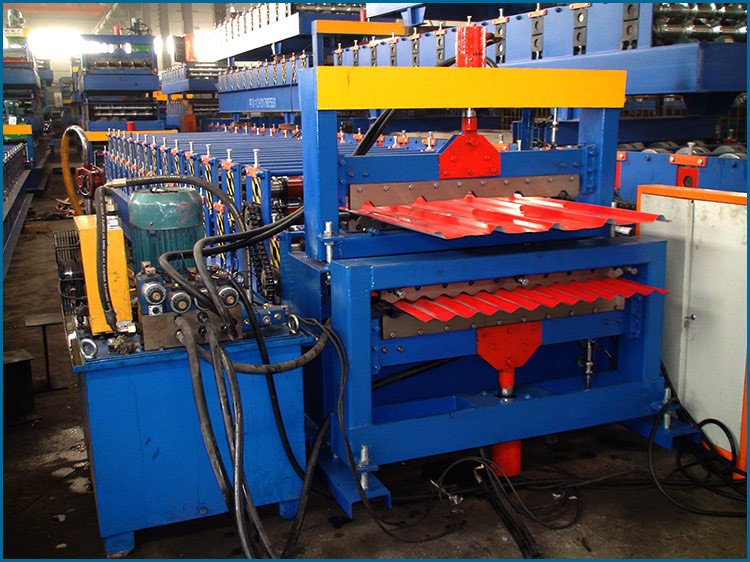

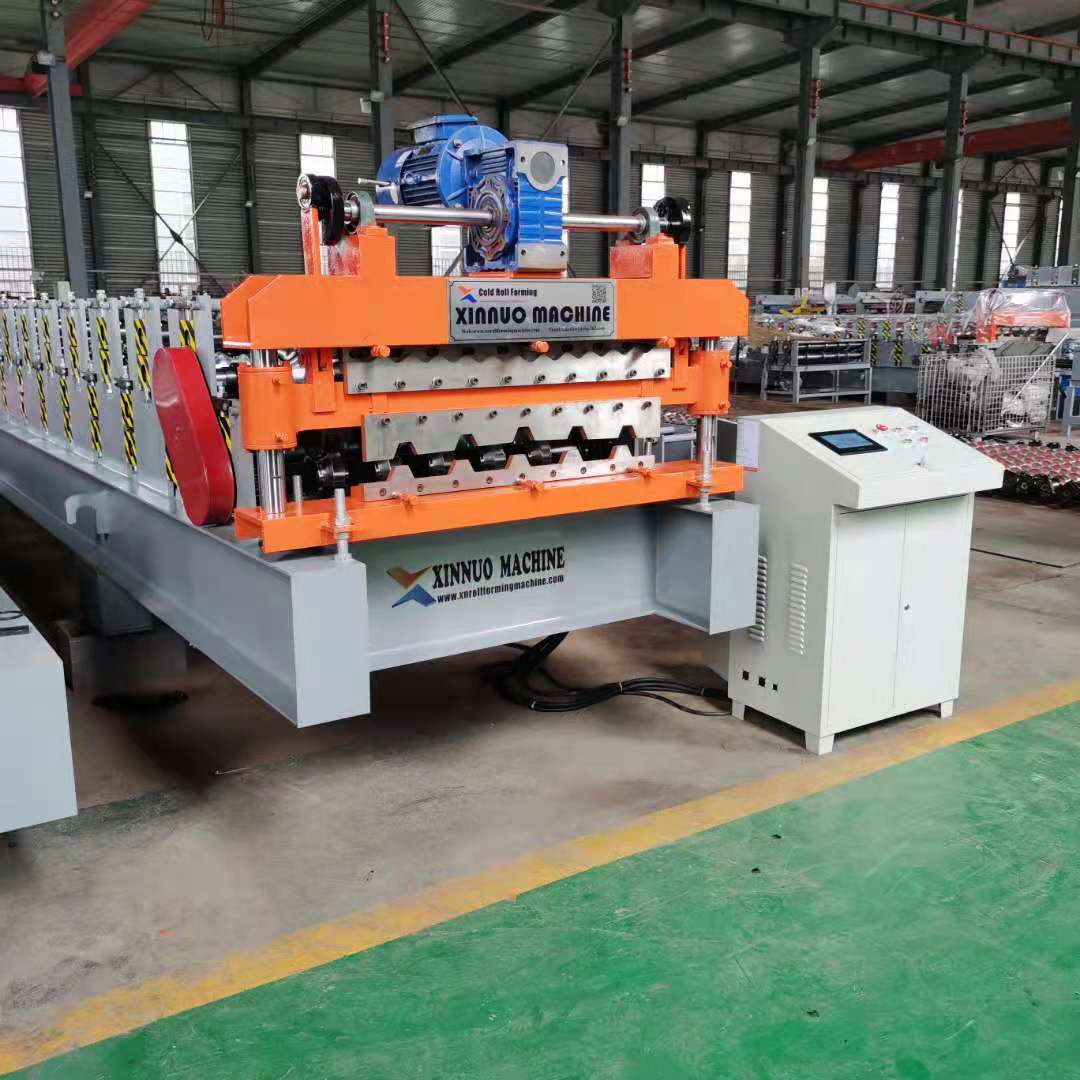

High-Efficiency Double Layer Roll Forming
This double-layer roll forming machine is engineered for the high-volume production of both corrugated metal roofing sheets and IBR (Inverted Box Rib) panels. Its innovative two-tier design allows for the production of two different profiles on a single machine, significantly optimizing floor space and increasing manufacturing efficiency. Built with a robust steel framework and advanced PLC controls, it ensures consistent quality and dimensional accuracy for professional-grade roofing solutions.
Key Performance Metrics
Performance Highlights
12 m/min
Max Speed
5 T
Uncoiler Capacity
1 Year
Warranty
Material Specifications
- Compatible Materials
- Color steel plateGalvanized sheetAluminum coils
- Material Thickness Range
- 0.3 - 0.8 mm
- Feeding Material Width
- 914 - 1250 mm
Technical Details
Cutting System
- Blade Material: Cr12Mov with quenched treatment
- Drive: Hydraulic system
- Control: PLC integrated
- Roller Stations
- 18 rows
- Roller Material
- High grade No. 45 forged steel
- Shaft Diameter
- 70 - 80 mm
Control & Hydraulics
Control Cabinet
- Programmable length and quantity settings
- Automatic and manual operation modes
- Multi-language support: English, Chinese, Spanish, Russian
Hydraulic System
| Parameter | Specification |
|---|---|
| Motor Power | 4 kW |
| Oil Type | 46# Hydraulic Oil |
| Working Pressure | 12-16 Mpa (Adjustable) |
Uncoiler Specifications
Manual Uncoiler Parameters
- Loading Capacity: 5 Tons
- Inner Diameter: 500-508 mm
- Max Outer Diameter: 1250 mm
- Max Coil Width: 1300 mm
- Main Motor: 5.5KW AC motor
Quality & Compliance
Certifications
CEISO 9001IAF
