Double Layer Colored Steel Roofing Panel Machine

This double layer roofing machine features two layers, each capable of producing one panel. This design allows customers to save cost and space.

Request a Quote Download PDFPDF

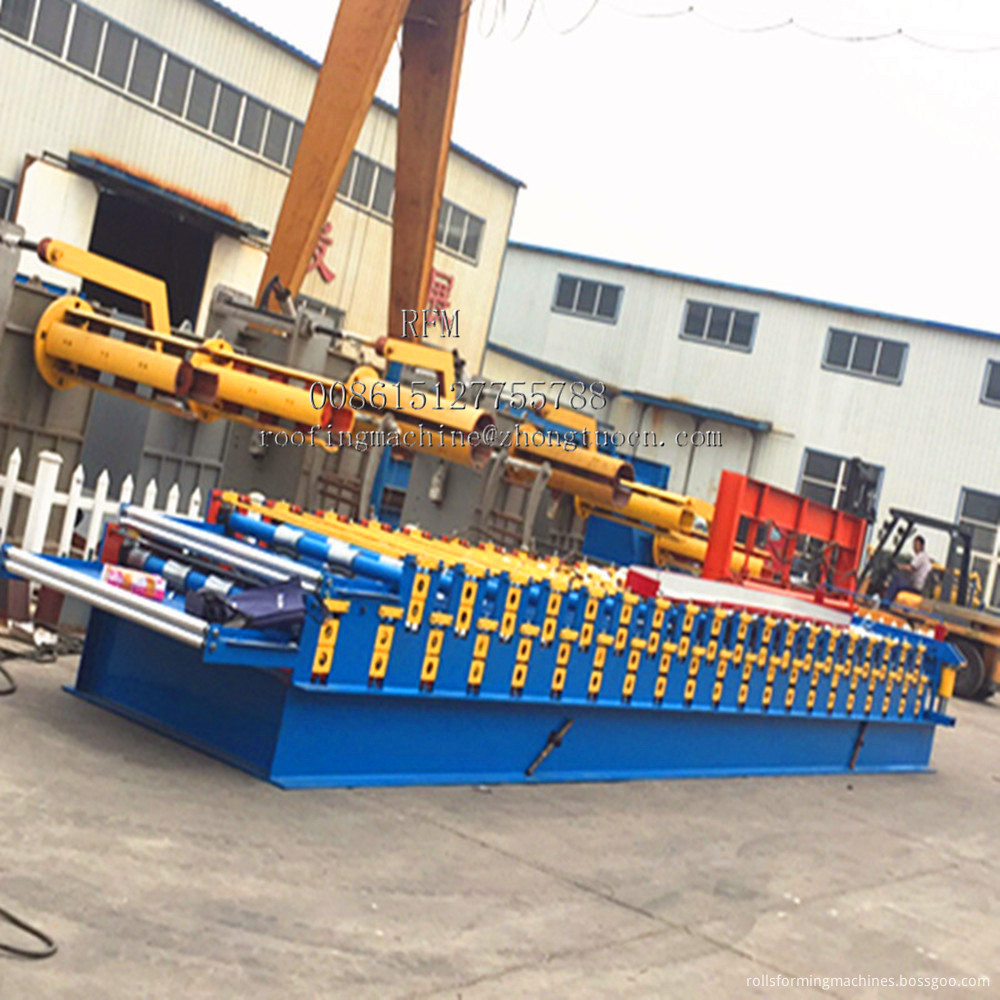

Colored steel double layer roofing machine - Image 1

Technical Specifications

Overview

Dual-Layer Efficiency for Roofing Production

This double layer roofing machine is engineered with a space-saving design that integrates two independent forming layers into a single unit. Each layer is capable of producing a distinct panel profile, allowing manufacturers to reduce equipment costs and floor space requirements significantly. The system is fully customized to support various drawing profiles, making it a versatile solution for high-volume B2B roofing production.

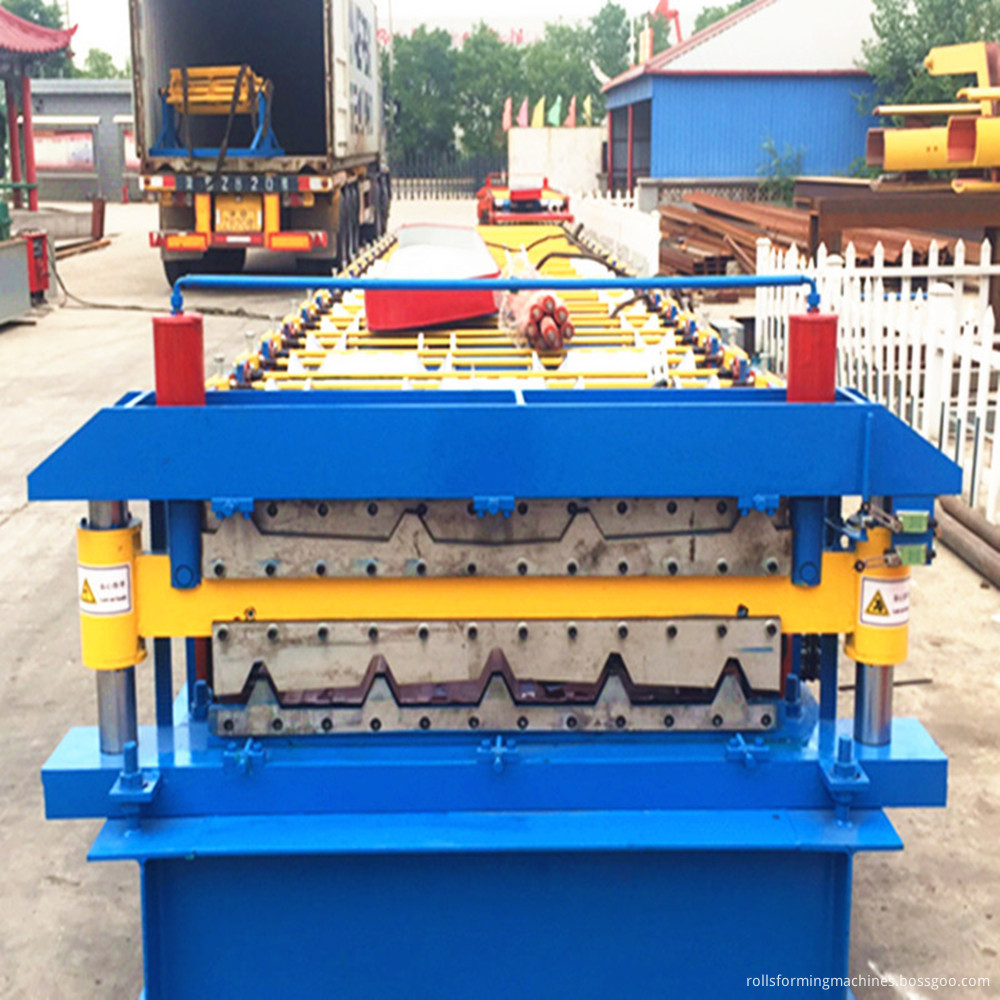

Side view of the double layer roll forming machine — Robust construction featuring integrated hydraulic components for precise operation.

Key Performance Metrics

Performance Metrics

8 m/min

Min Forming Speed

12 m/min

Max Forming Speed

1,250 mm

Max Coil Width

Material Specifications

Compatible Materials: Colored Steel PlateGalvanized PlateAluminum Plate
Material Thickness: 0.3 - 0.8 mm

Production Process

Production Workflow

Uncoiling

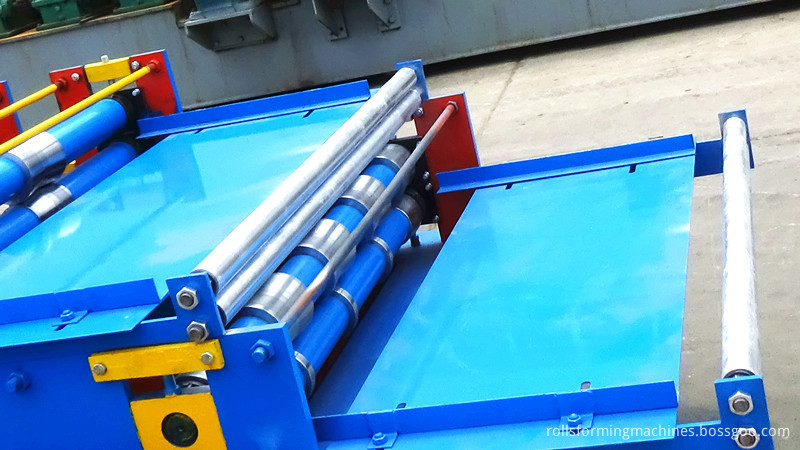

Material Feeding
Roll Forming
Length Measurement
Automatic Hydraulic Cutting
Product Receiving

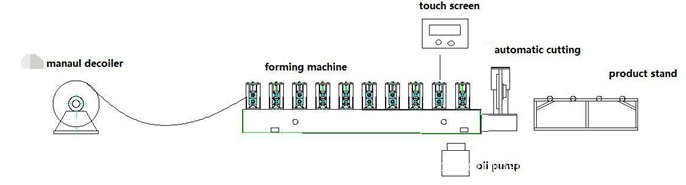

Double layer roofing machine system components diagram — Complete system overview including decoiler, forming machine, and control unit.

Technical Components

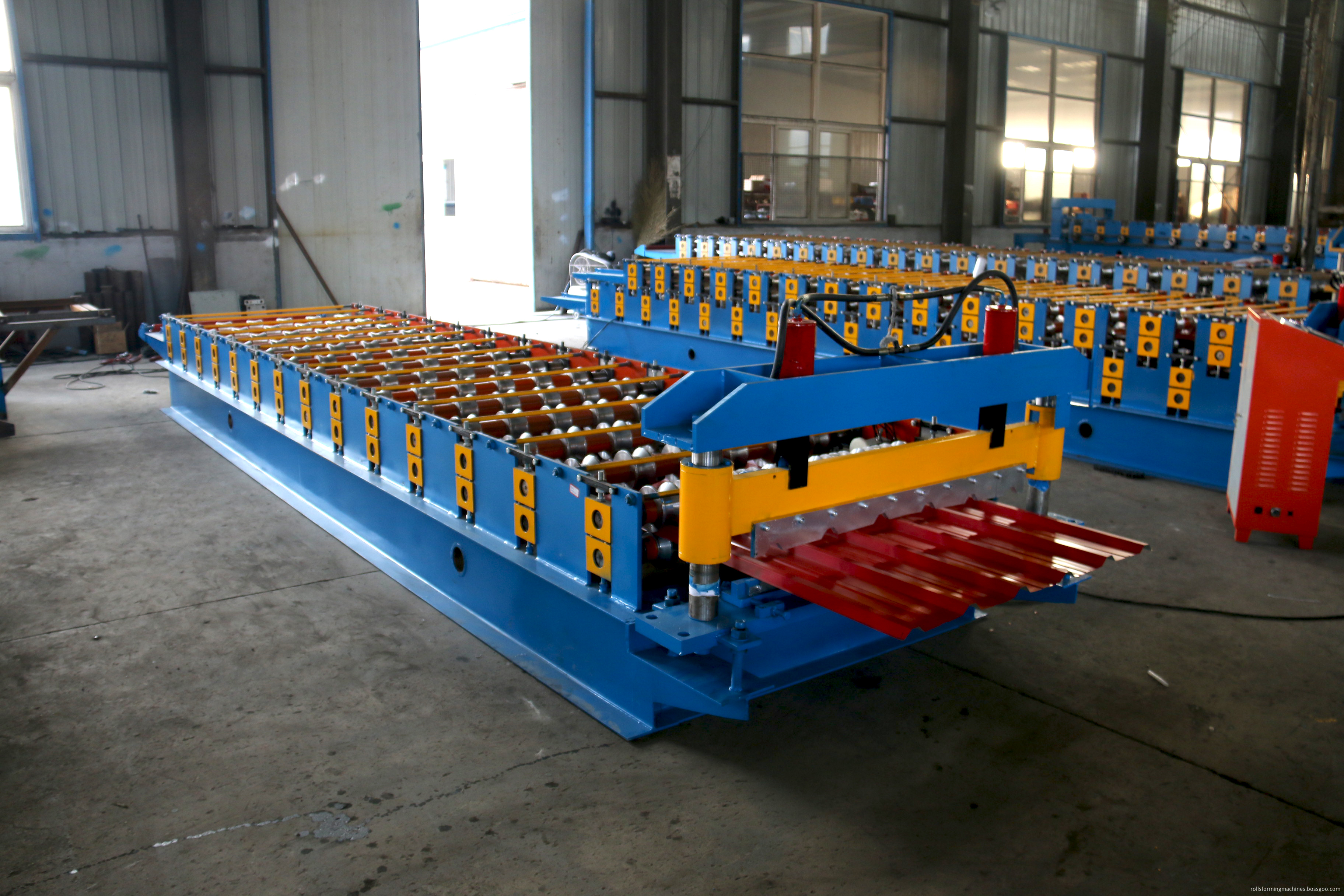

Cutting Mechanism

Feature	Specification
Control	Automatic PLC Control
Drive Type	Hydraulic
Blade Material	Cr12 Quenched
Components	Blade set, hydraulic tank, cutter machine

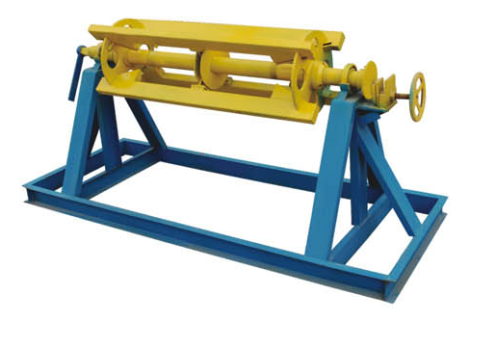

Un-coiler System: Passive uncoil pulled by roll forming system; turntable design for steel coil support.

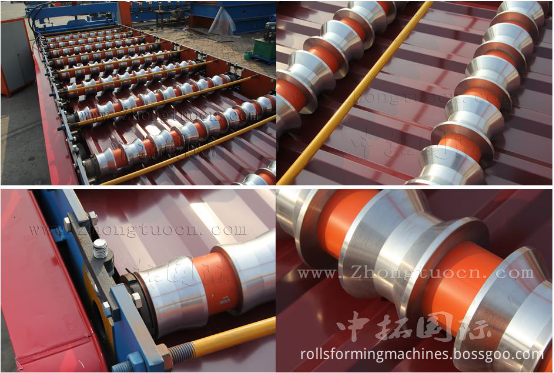

Roller Treatment: Chromed rollers to ensure smooth molding and prevent surface marking.
