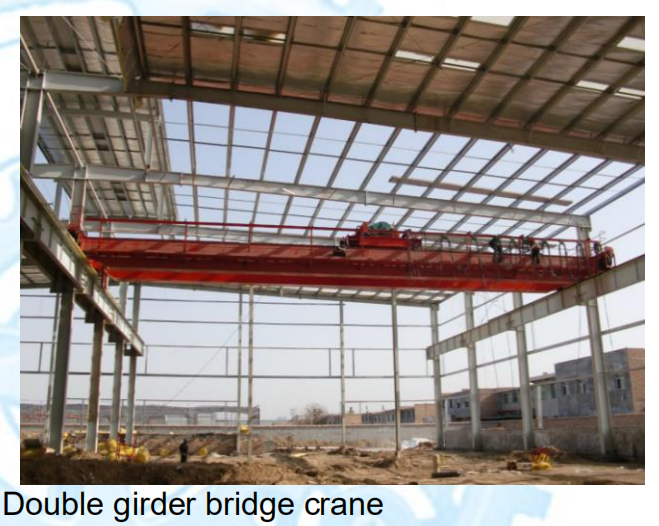

Double Girder Overhead Bridge Crane
This double girder overhead bridge crane is designed for heavy-duty lifting in industrial environments. The crane features a robust steel structure, providing exceptional load-bearing capacity and stability.
Technical Specifications
Product Overview
Heavy-Duty Industrial Lifting Solution
This double girder overhead bridge crane is engineered for demanding heavy-duty lifting applications across diverse industrial sectors, including mining, metallurgy, and logistics. Featuring a robust steel structure, the crane provides exceptional load-bearing capacity and operational stability. It is equipped with an advanced hoist and trolley system to ensure smooth, precise material handling, significantly enhancing safety and efficiency in manufacturing and warehouse environments.
Key Performance Metrics
Performance Highlights
100 tons
Max Capacity
31 m
Max Span
174 kW
Max Motor Power
Technical Specifications
Working System
A5A6
- Lifting Capacity Range
- 16/3.2 to 100/20 tons (customizable)
- Span
- 10.5 - 31 m
- Lifting Height
- 12 - 22 m (customizable)
- Power Supply
- 380V/50Hz440V/50Hz
Operational Details
Compatible Lifting Tools
- Hook
- Grabber
- Magnetic sucking disc
- Multi-lifting tools
- Application Types
- General UseMolten Steel (Ladle)ScrapExplosion-proofContainer Handling
- Recommended Crane Rails
- 43kg/m, QU70, QU80, QU100
Speed Specifications
Operating Speeds
| Component | Speed Range (m/min) |
|---|---|
| Main Lifting | 3.1 - 7.9 |
| Auxiliary Lifting | 20 - 75 |
| Trolley Travelling | 33.9 - 39.7 |
| Crane Travelling | 61.7 - 93.7 |
